Micromeritics Elzone II 5390 Operator's Manual page 359

Appendix G
This appendix contains installation and operating instructions for the camera used with the
Elzone II analyzer.
The camera option kit includes the following:
• Camera assembly
• Light assembly
• USB cable
Description
The camera is installed on the front panel of the Elzone II analyzer, enabling you to:
• view particle activity in the orifice
• detect blockages in the orifice
• check the orifice jewel for cracking
• check the orifice for particle build-up
The camera software contains many features for manipulating images; however, this
appendix provides information only on the ones directly related to the Elzone application.
Refer to the help system in the camera software for assistance on other features.
539-42822-01 (Rev A) - Nov 2017
G. CAMERA OPTION

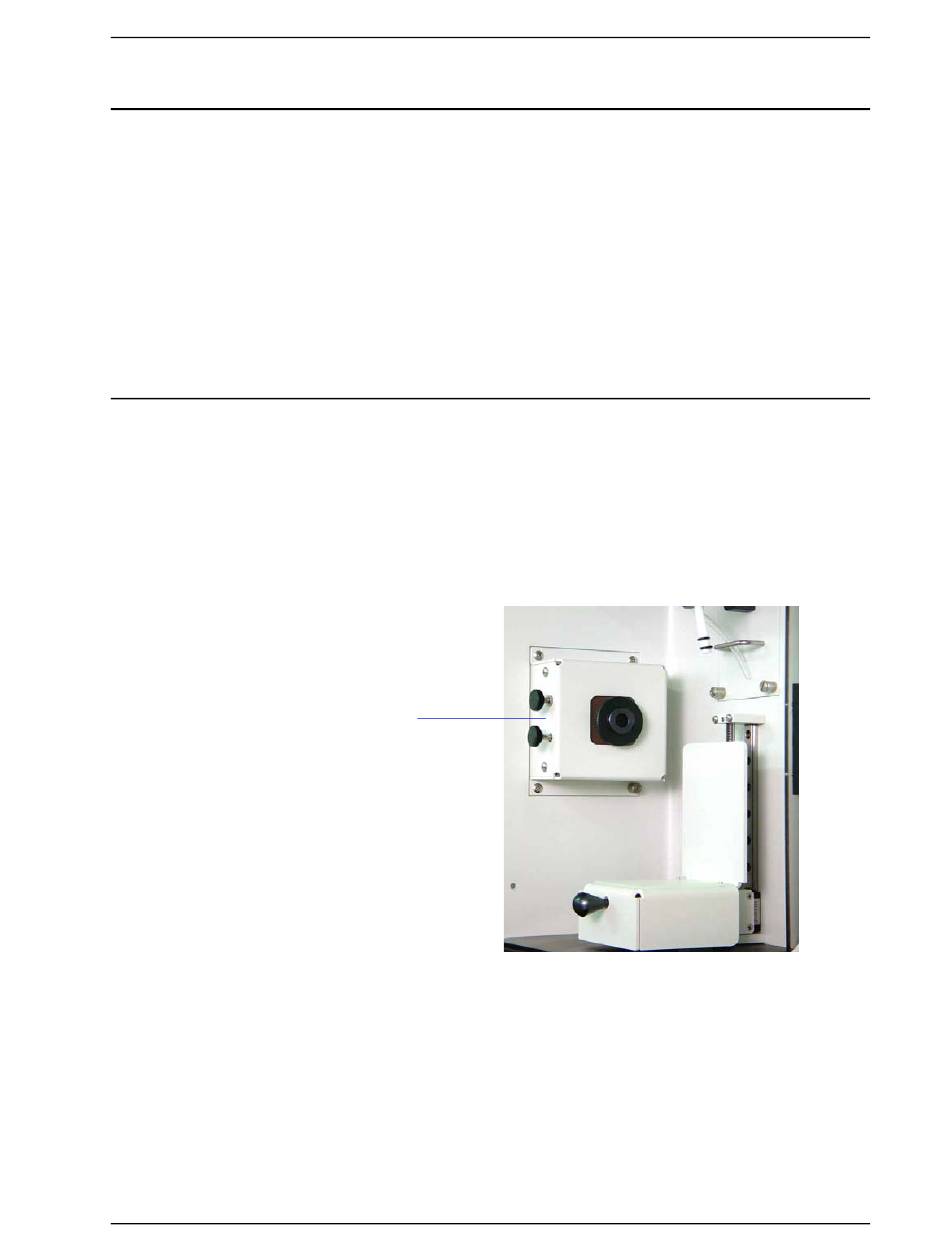

Camera
assembly
Elzone II 5390
G-1
