New
Orifice Tube
Add Orifice
Delete Orifice
Particle Size Range
Specify Diameter 
range
Use instrument 
settings
Settings
539-42822-01 (Rev B) - Nov 2017
This drop-down list contains existing orifice tubes. If the
orifice tube has not been calibrated, its name (descrip-
tion) is preceded with an asterisk (*). The diameter of
the selected orifice tube is displayed adjacent to the Ori-
fice Tube field.
You must select an appropriate orifice tube before you
can perform an analysis.

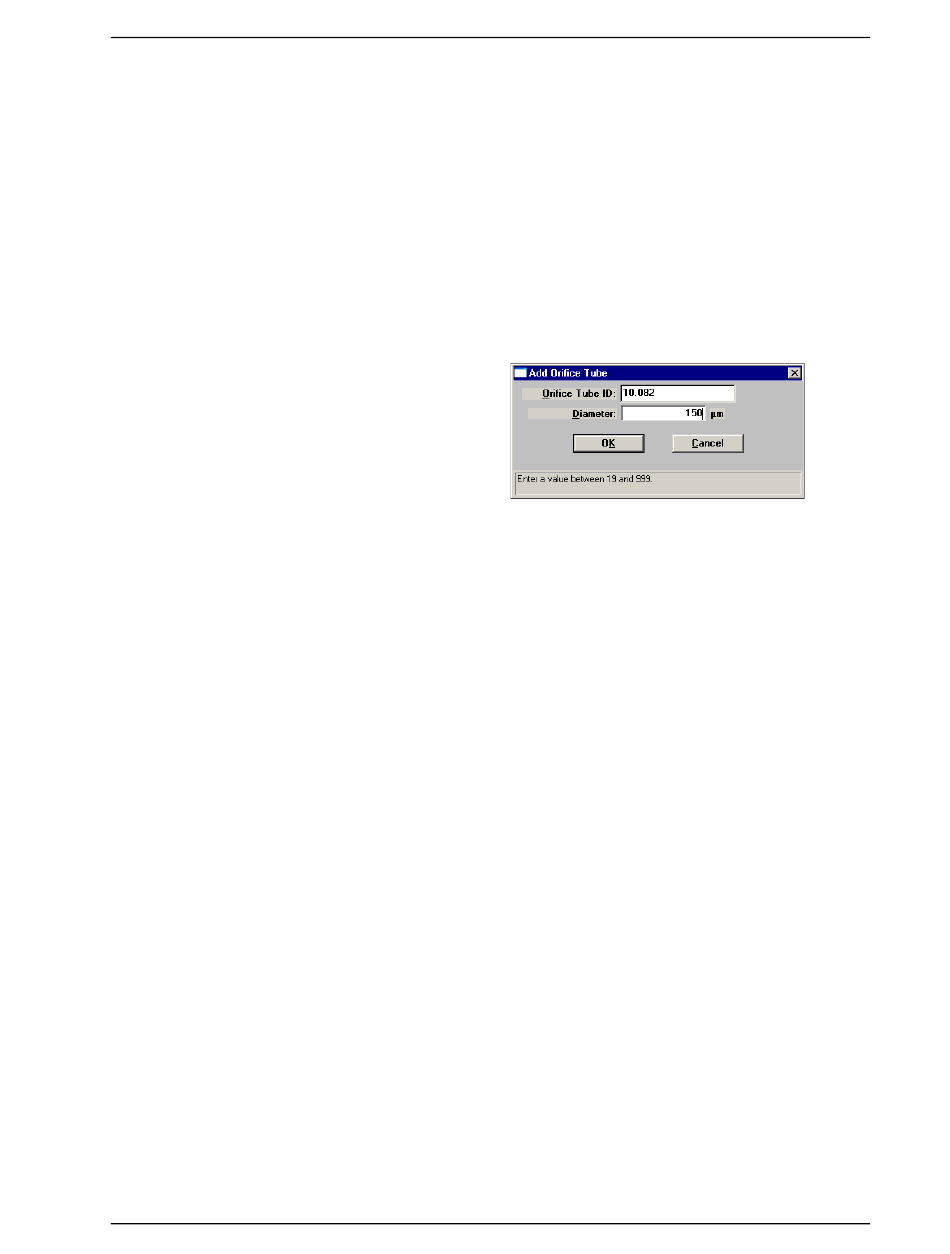

Displays the Add Orifice Tube dialog so that you can
add an orifice tube to the drop-down list.
Deletes the orifice tube currently displayed in the
Orifice Tube field; a confirmation dialog is displayed
before the tube is deleted from the list.
These options enable you to specify a diameter range or
specify instrument settings.
Enables you to specify a range for the size of particles to
be read. You should stay within 2% to 70% of the orifice
diameter and should not exceed a 30:1 ratio.
When you choose this option, the instrument settings are
automatically set by the software. Most Elzone users
choose this option.
Enables you to specify settings for the instrument. This
option is used by a more advanced user. This option can
also be used if you have a sample file used in an analysis
and which contains appropriate settings.
Displays the Signal Settings dialog allowing you to
define signal settings for analysis conditions.
