Orifice Tube Calibration
Save
Finish
The values on the left side of this dialog display the calibration information of the current
calibration as well as the previous one (if one exists). If a reference material is out of tol-
erance, it will be displayed just below the calibration information.
539-42822-01 (Rev A) - Nov 2017
Enabled when the calibration is complete (progress bar
reaches 100%) allowing you to save the data.
Displays the Finish Analysis dialog.

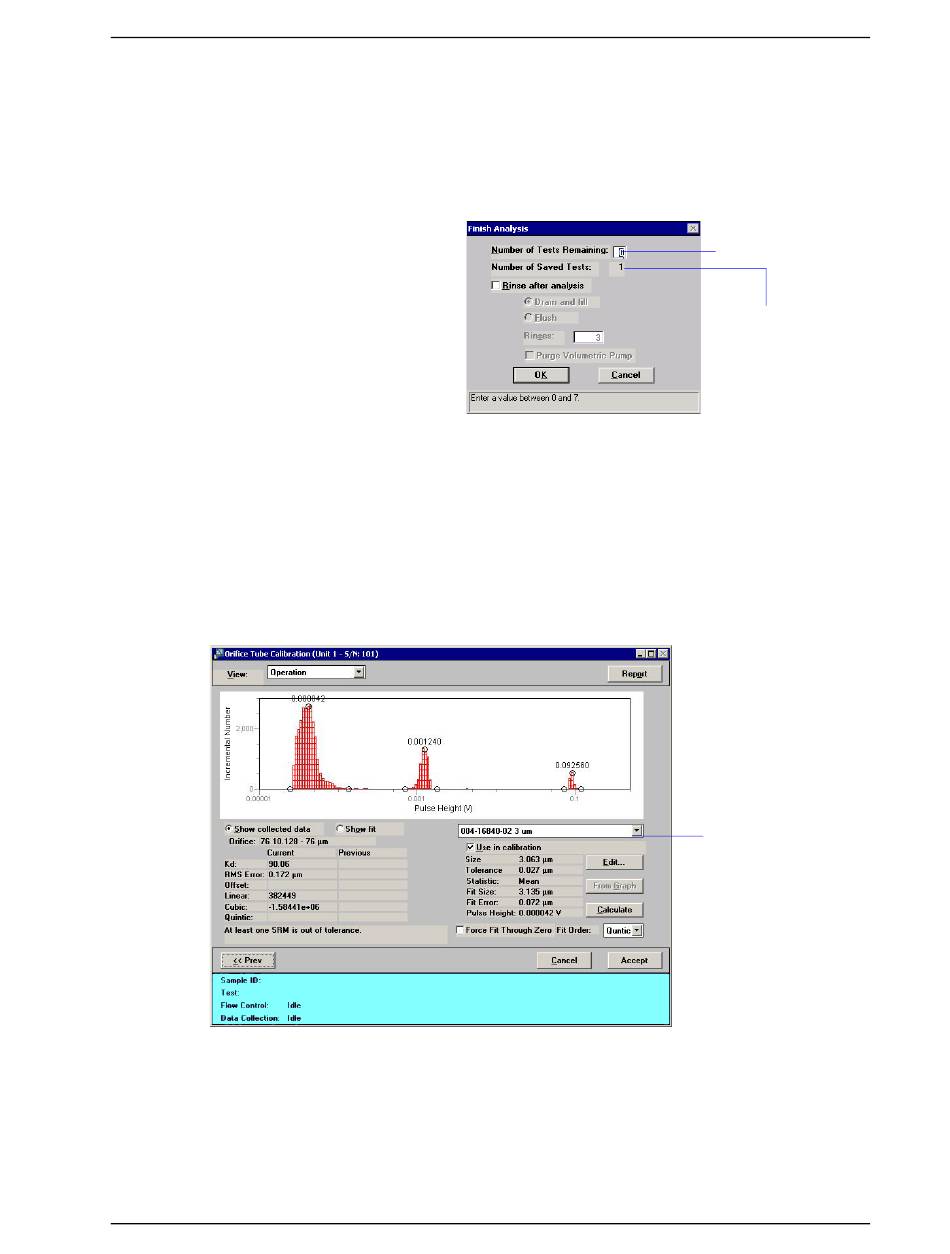

This dialog enables you to verify that the reference mate-
rial data were saved. You should also verify that a 0
(zero) is in the Number of Tests Remaining field; other-
wise another calibration will be performed.
When you click OK on this dialog, the final Orifice Tube
Calibration screen is displayed.
Elzone II 5390 Confirm
Be sure 0 (zero)
is displayed here.
Indicates the data
were saved.
Choose the reference
material on which to
display information from
this list.
5-27
