Elzone II 5390
Installation
This section will explain how to install the:
• camera assembly
• light assembly
• camera software
Camera Assembly
If your Elzone was ordered with a camera option installed, advance to Light
Assembly and continue with installation of the light assembly.
Install the camera assembly as follows:
1.

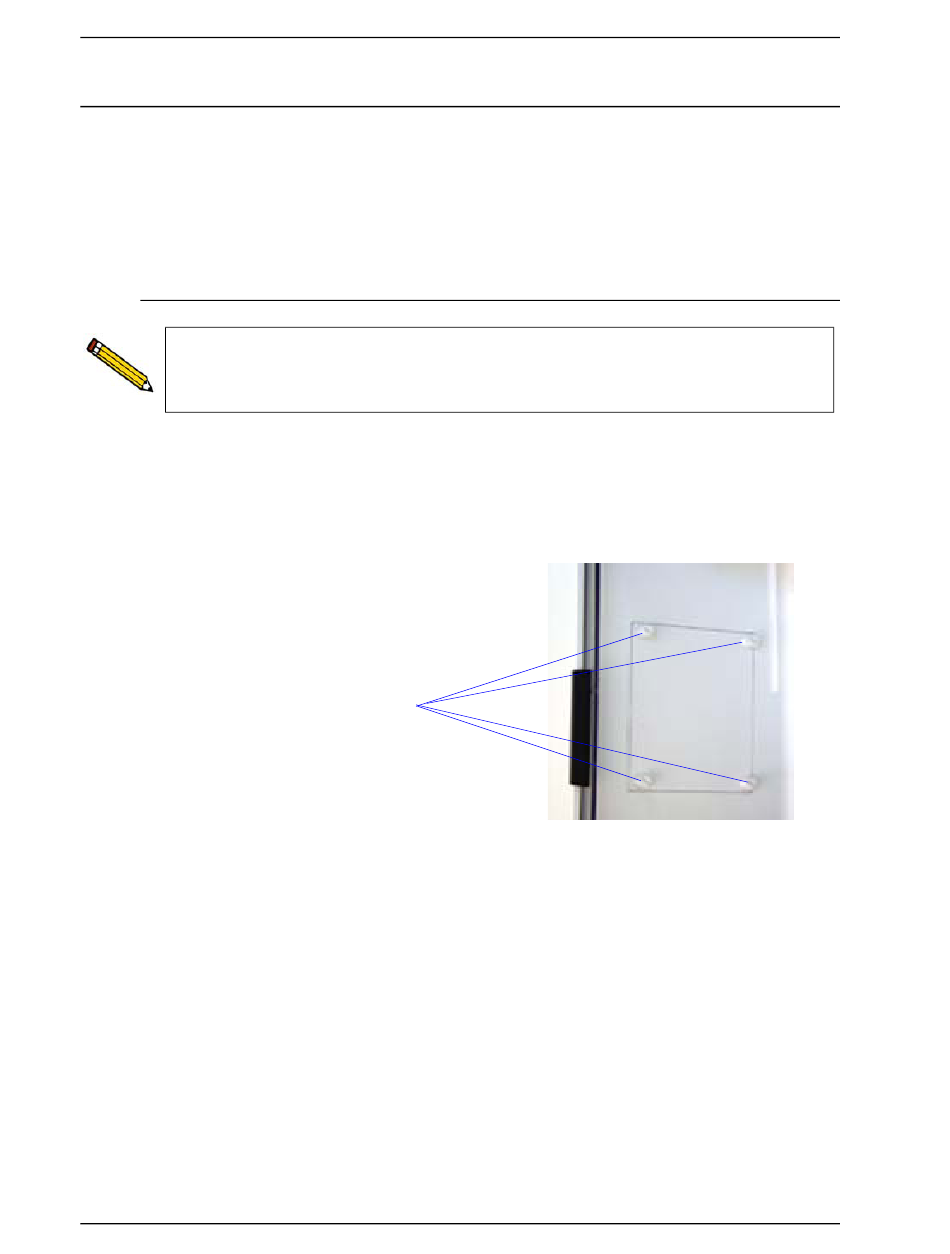

Using a flat-head screwdriver (or your fingers), unscrew the four captive screws; then
remove the plate from the left front panel.
2.
Insert the cord of the camera assembly into the opening. Ensure that the focusing
knobs of the assembly are facing outward. The cord should be secured with a twist tie
making it easier to place inside the compartment. Be sure at least 12 to 14 inches (30
to 36 cm) are free from the twist tie.
G-2
Captive screws
Appendix G
539-42822-01 (Rev A) - Nov 2017
