Micromeritics Elzone II 5390 Operator's Manual page 115

New
Specification
Overlays
539-42822-01 (Rev B) - Nov 2017

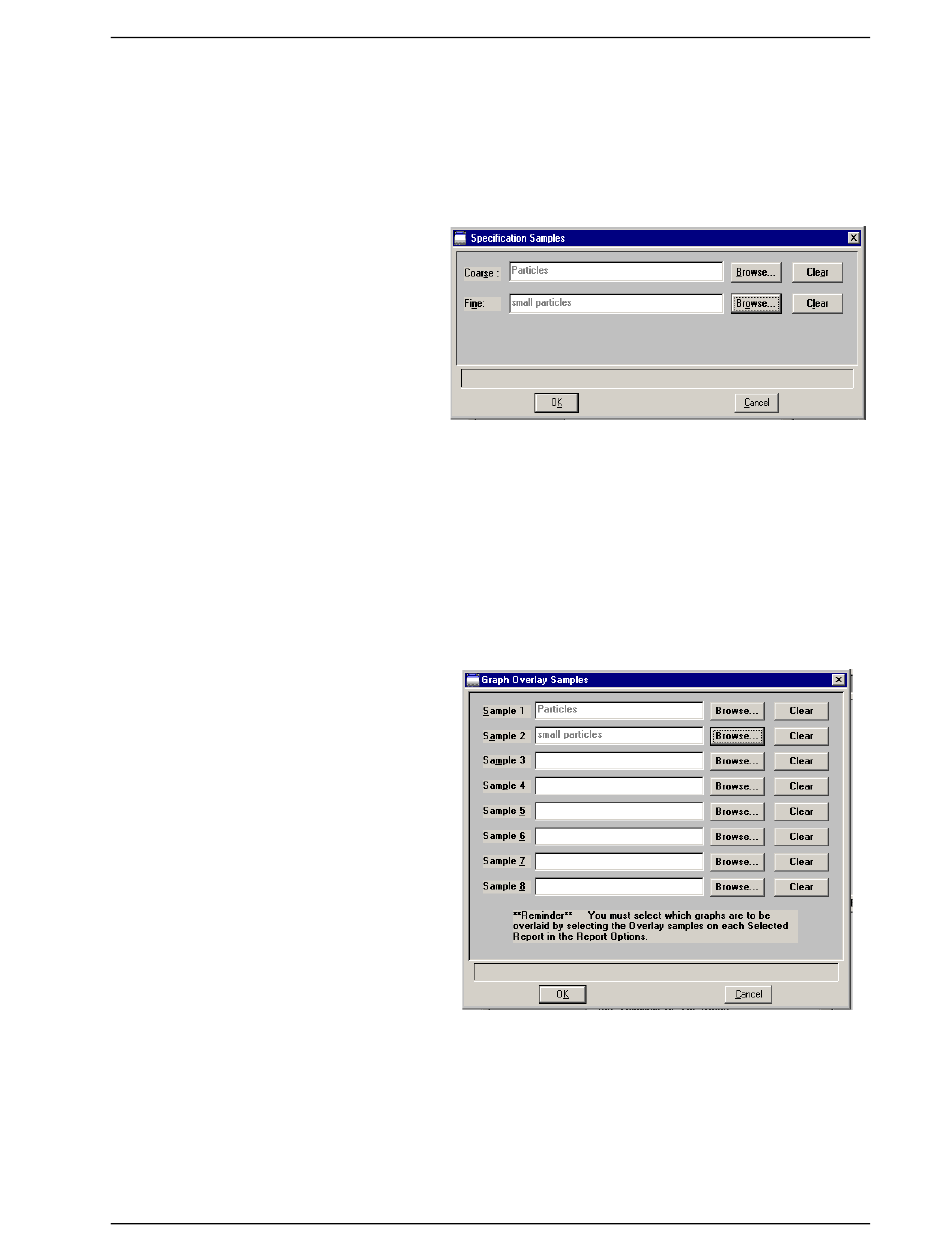

Displays the Specification Samples dialog so that you
can specify the sample files to be used for the boundaries
of the coarse and fine specifications; produces an Out of
Specification report. Then you can quickly determine if
the results of the current sample are within the specified
boundaries.
Click to the right of each field to display the
Browse
Specification Sample File Selection dialog containing a
list of sample files from which to choose a file.
Use Clear to clear a field of its entry.
Displays the Graph Overlay Samples dialog so that you
can choose the sample files containing the data you wish
to overlay onto a selected plot.
Click to the right of the sample number field(s)
Browse
to choose the desired file(s). Use
its entry. You can select up to eight files.
Elzone II 5390 Confirm
to clear a field of
Clear
4-27
