Sample Analysis
Report
Sparkle Display
Coincidence
Preview
Orifice
Diameter Range
Instrument Setup
539-42822-01 (Rev A) - Nov 2017
Enables you to generate a report for the data collected up
to the time you request the report.
Displays during data collection or while in Preview
mode.
The Sparkle display emulates an oscilloscope (turned 90º
to the right). The analyzer measures the change of resis-
tance across the orifice and displays a dynamic scan of
pulses (tips) in real time.
Displays the current coincidence level.
Enables you to view signals (in the Sparkle display) and
the coincidence rate.
Displays the serial number and the size of the orifice tube
being used in this analysis.
Displays the range in which to detect particles.

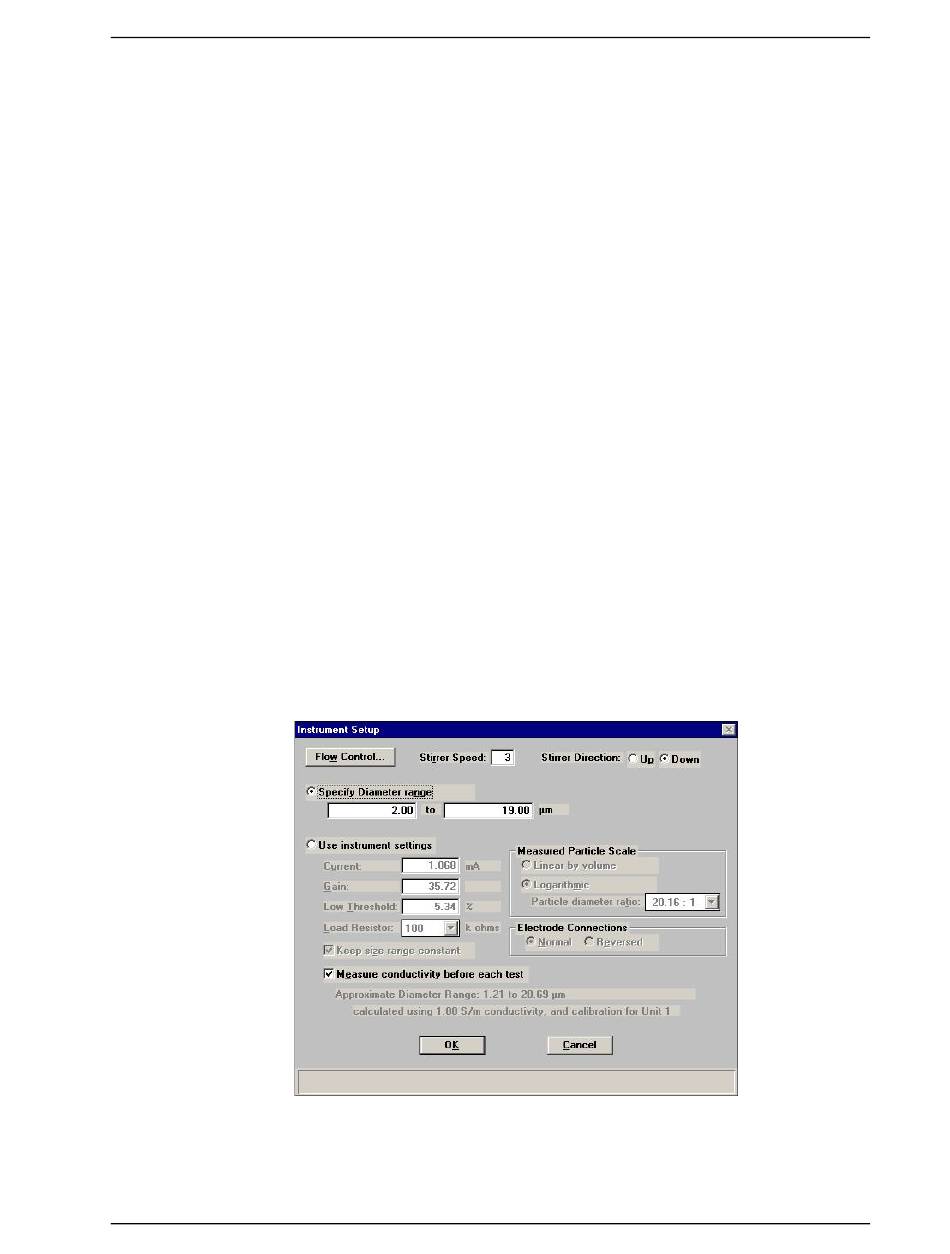

Displays the Instrument Setup dialog, enabling you to
edit certain analysis conditions prior to analysis.
Disabled for an Analyst.
Elzone II 5390 Confirm
5-9
