Elzone II 5390

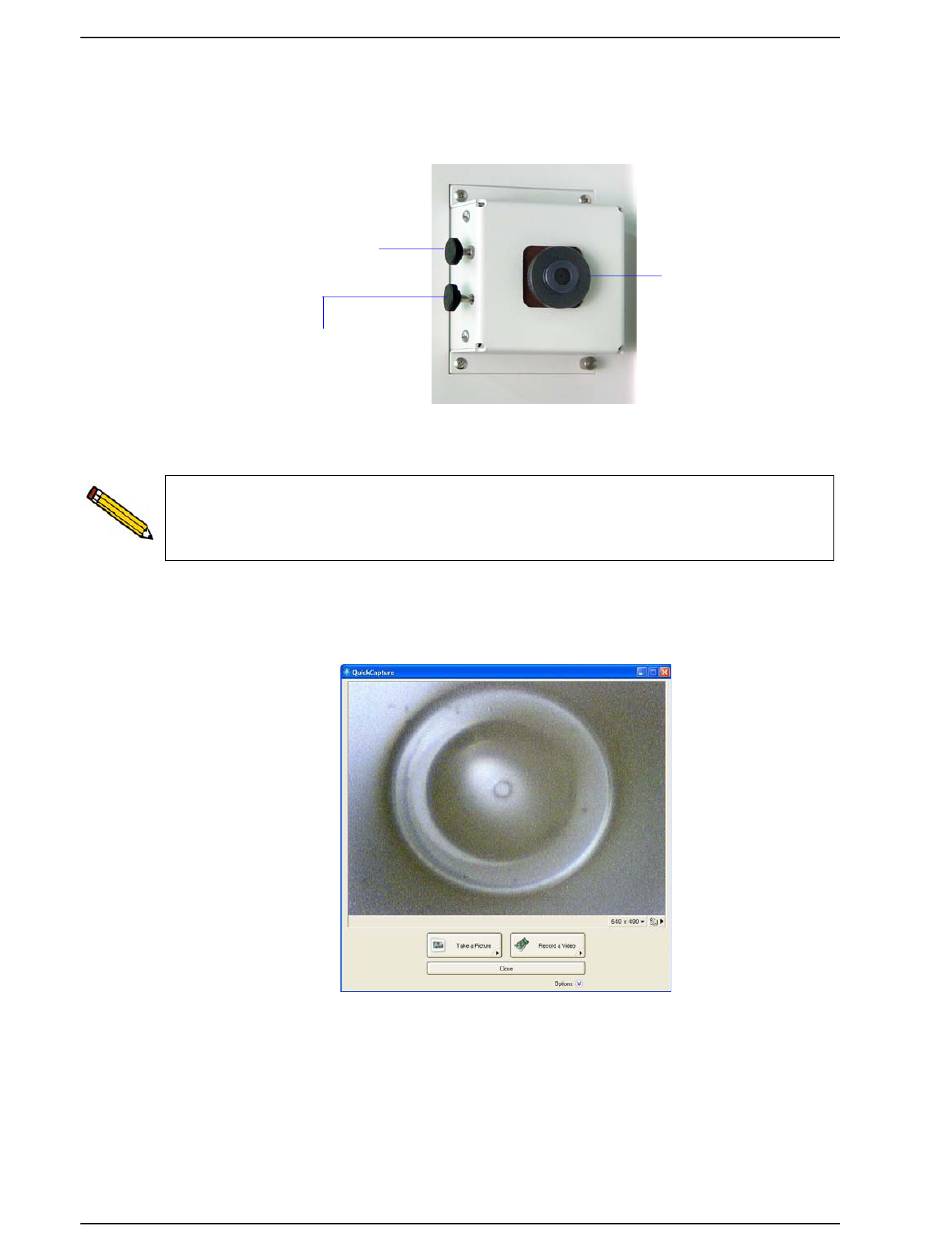

1. Turn the focal ring fully clockwise (to the right), then slowly turn it counterclockwise
(to the left) until a clear image displays on the computer screen.
You may also need to adjust the position of the orifice light to obtain the best
results.
2. After you obtain a clear image, use the knobs on the left side of the camera to adjust
the position of the image. The knob on the top adjusts the image right to left. The
lower knob adjusts the image up and down.
You can also use the zoom and pan controls in the camera software for adjusting the
position.
G-10
Adjusts the image
right to left.
Adjusts the image
up and down.
Appendix G
Focal Ring
539-42822-01 (Rev A) - Nov 2017
