Micromeritics Elzone II 5390 Operator's Manual page 131

New

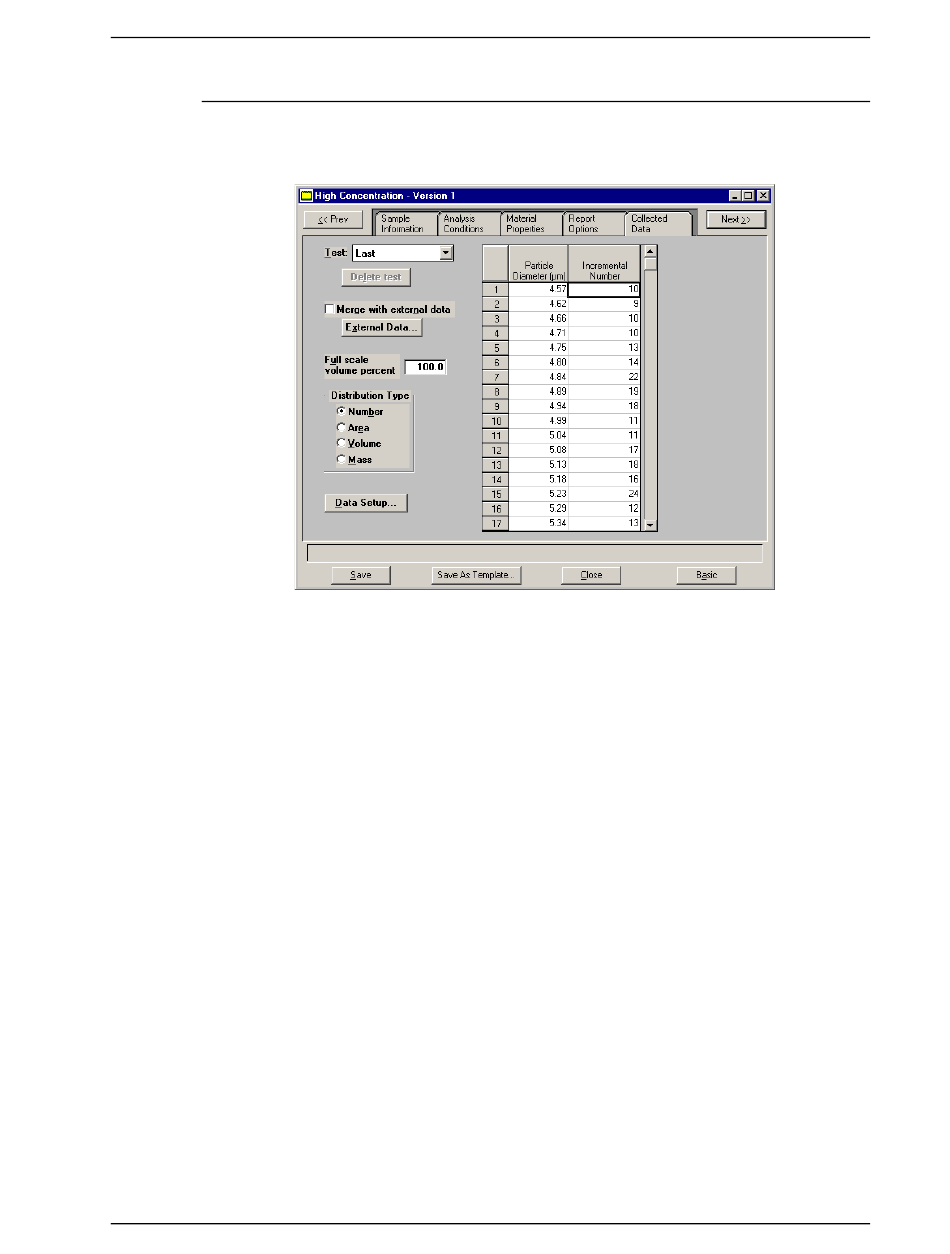

Collected Data
The tab for Collected Data does not appear on the Developer's Advanced dialog
presentation until after analysis.
Table
Test
Delete Test
Merge with external 
data
External Data
539-42822-01 (Rev B) - Nov 2017
Displays data points for the current test selected from the
Test drop-down menu.
Displays the current test for this sample file. If you wish
to view data for another test, click on the down arrow to
select the desired test.
Click this push button to delete the test displayed in the
Test field. If only one test exists, this push button is dis-
abled; one test must remain in the file.
Enables you to merge data collected by some other
method with the data of the current test. Click
to enter the data to be merged.
Data
Enabled when you select Merge with external data.
Displays the External Data dialog so that you can enter
the data you wish to have merged.
Elzone II 5390 Confirm
External
4-43
