Enable Manual Control
Sensors
Waste
Overflow
539-42822-01 (Rev A) - Nov 2017

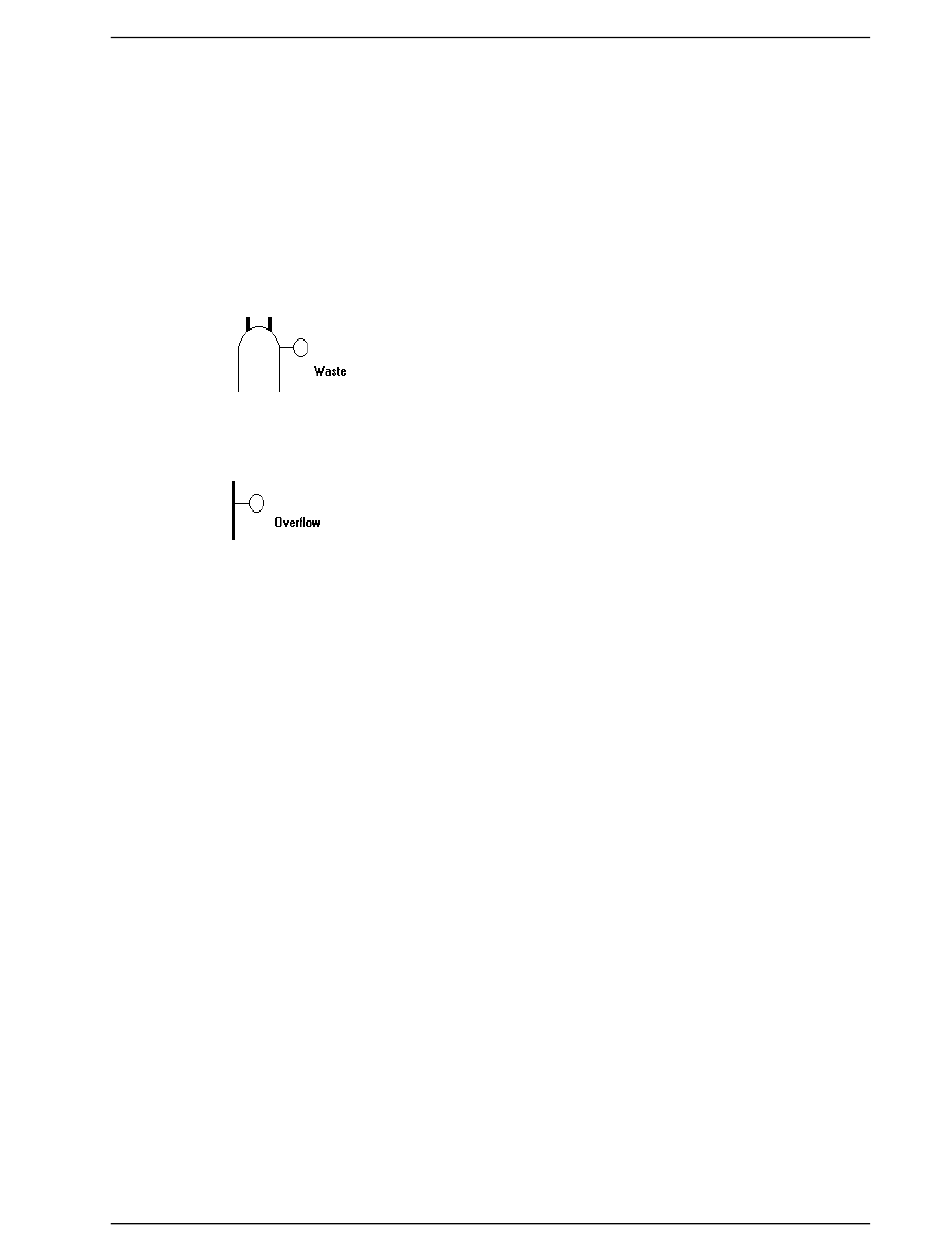

There are two sensors displayed on the schematic; one
for the waste container and one for overflow of the waste
container.
Colors: White; indicates no liquid present at the
sensor level
Blue; indicates liquid is present at the
sensor level
Represents the Waste container. The sensor to the right of
the icon indicates the presence (blue) or absence (white)
of liquid at the sensor's height. If the waste sensor dis-
plays blue, the waste container is full; current operation
will be canceled automatically. You must empty the
waste container before proceeding.
The Overflow sensor is provided as a safety precaution in
the event the Waste sensor did not detect a full container.
For example, the Waste sensor may not have been
securely connected. If the Overflow sensor turns blue, the
pump stops automatically to prevent liquid from reaching
internal components. Terminate all operations and con-
tact your Service Representative.
