Elzone II 5390 Confirm

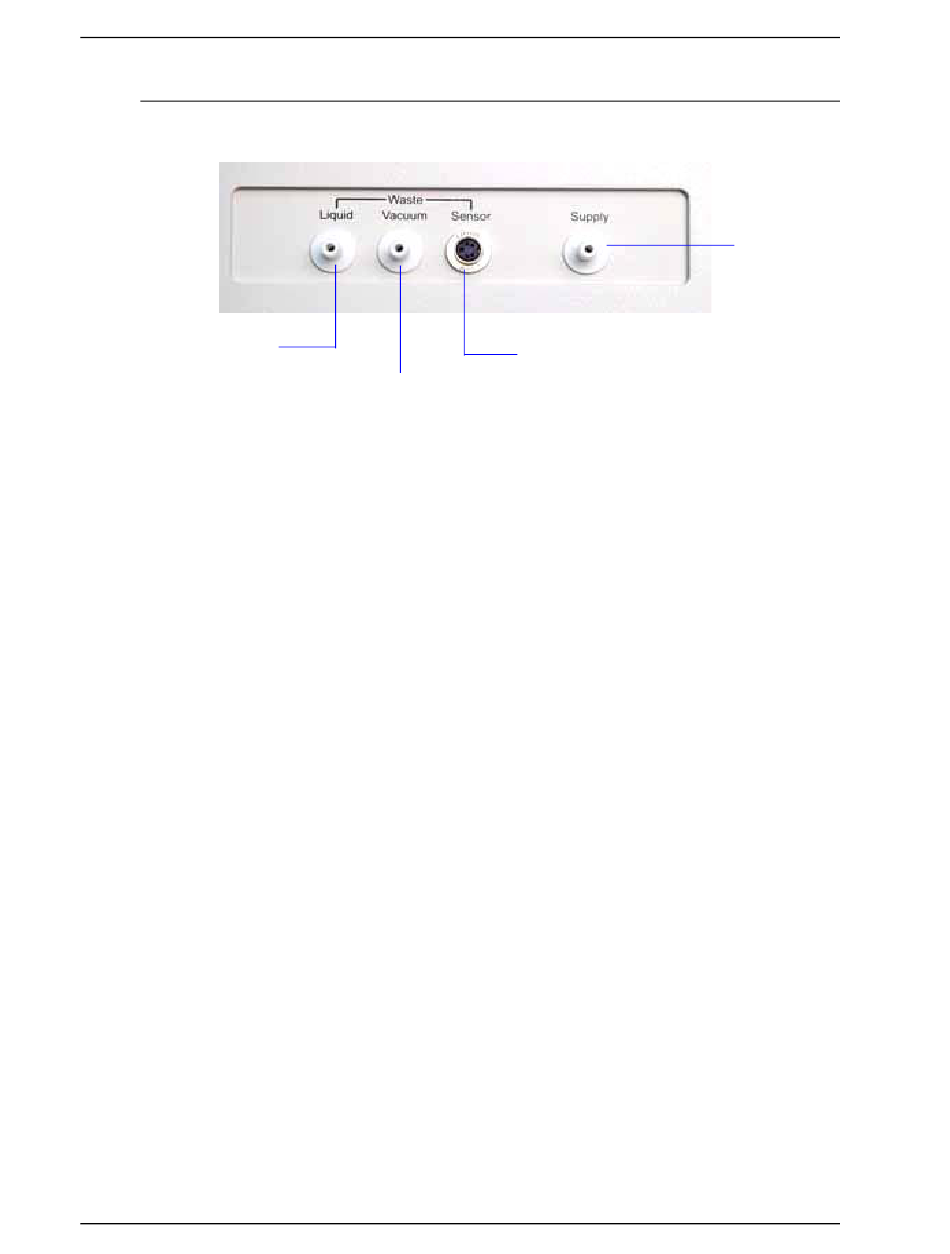

Side Panel
Waste liquid outlet port
Waste liquid outlet port
Waste vacuum port
Waste sensor connector
Supply inlet port
2-4
Waste container sensor
Waste vacuum port
For connecting the waste tubing to the waste container
For connecting the vacuum tubing to the waste container
For connecting the overflow sensor cable to the waste
container. This sensor senses when the bottle becomes
full and automatically cancels any operation in progress;
an error message is also displayed. You must empty the
waste container before you can proceed.
If the waste sensor cable is not securely plugged in and,
therefore, does not detect the full container, a second
sensor activates. If the second sensor activates, the
internal tubing is filled with liquid and may have spilled
into the internal component area. Call your Micromeritics
service representative if this occurs. Refer to Sensors,
page 5-41 for additional information.
For connecting the supply tubing from the supply
container (analysis liquid)
Controls, Indicators, and Connectors
Supply inlet
port
