QuickStart Analysis
Indicates 0 to minimum (value in left
range field)
Rinse
Status Window
Next
539-42822-01 (Rev A) - Nov 2017
Indicates maximum (value in right
range field) to 10000.
Indicates minimum to maximum
(range specified in the range fields).

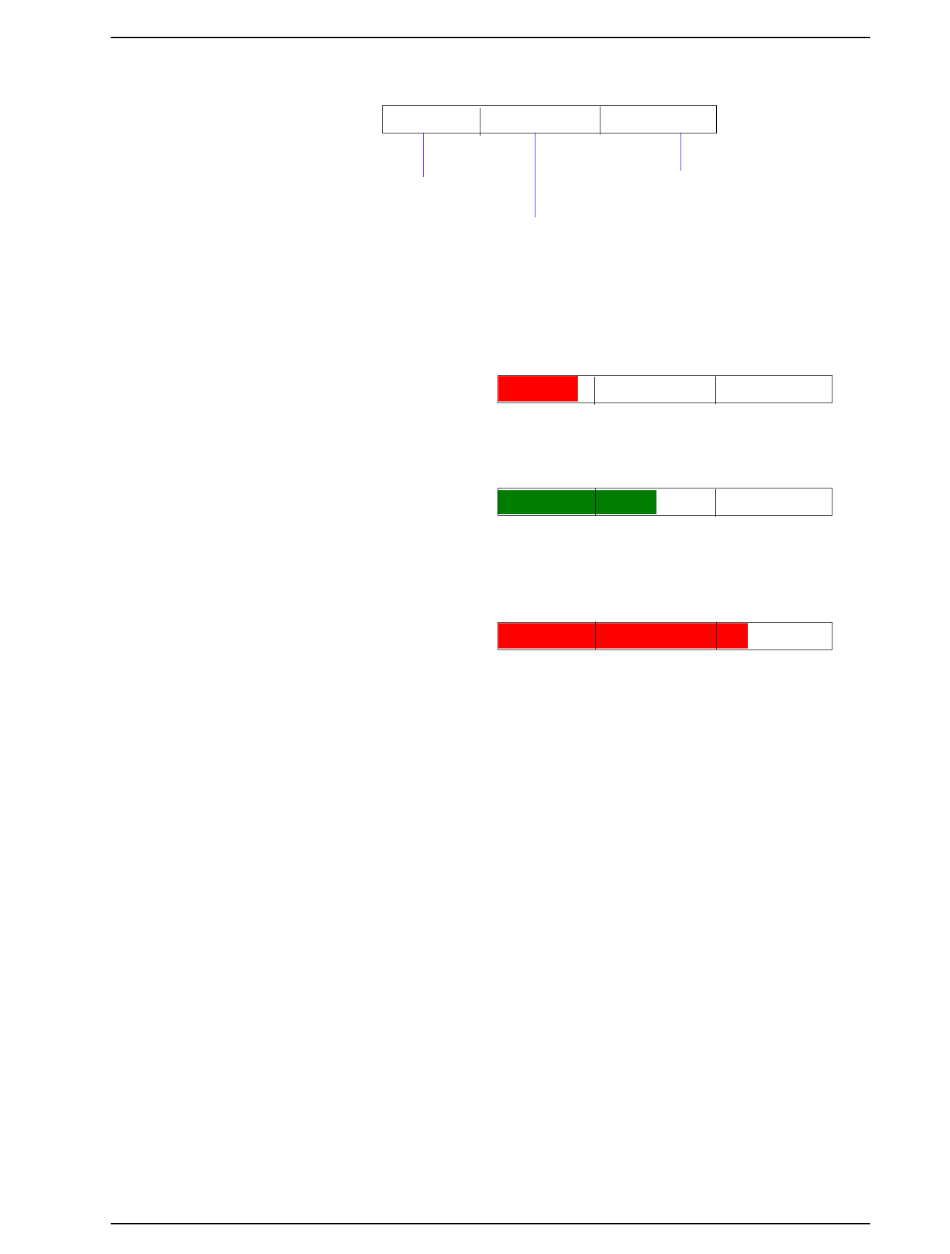

The bar will be colored up to the measured concentra-
tion. For example: a bar colored like this one indicates
low concentration; add more sample.
A bar colored like this one indicates the concentration is
within the specified range.
A bar colored like this one indicates the concentration is
too high; add more electrolyte or discard sample and
start over.
Displays a dialog containing the rinse options selected in
the sample file; you can edit these options if desired.
Refer to page 4-15 for information on the fields in this
dialog.
Displays the status of the current analysis. Refer to
Status, page 5-43 for additional information on this win-
dow.
Enabled after you load your sample. When you click this
push button, the User Log on dialog is displayed so that
you can enter your password. After you enter your pass-
word and click , analysis begins and you advance to
OK
the next analysis screen.
Elzone II 5390 Confirm
