Elzone II 5390 Confirm
Volumetric pump
Arrow
(continued)
Air valve
Shows valve
in a closed
position.
Fill valve
5-38

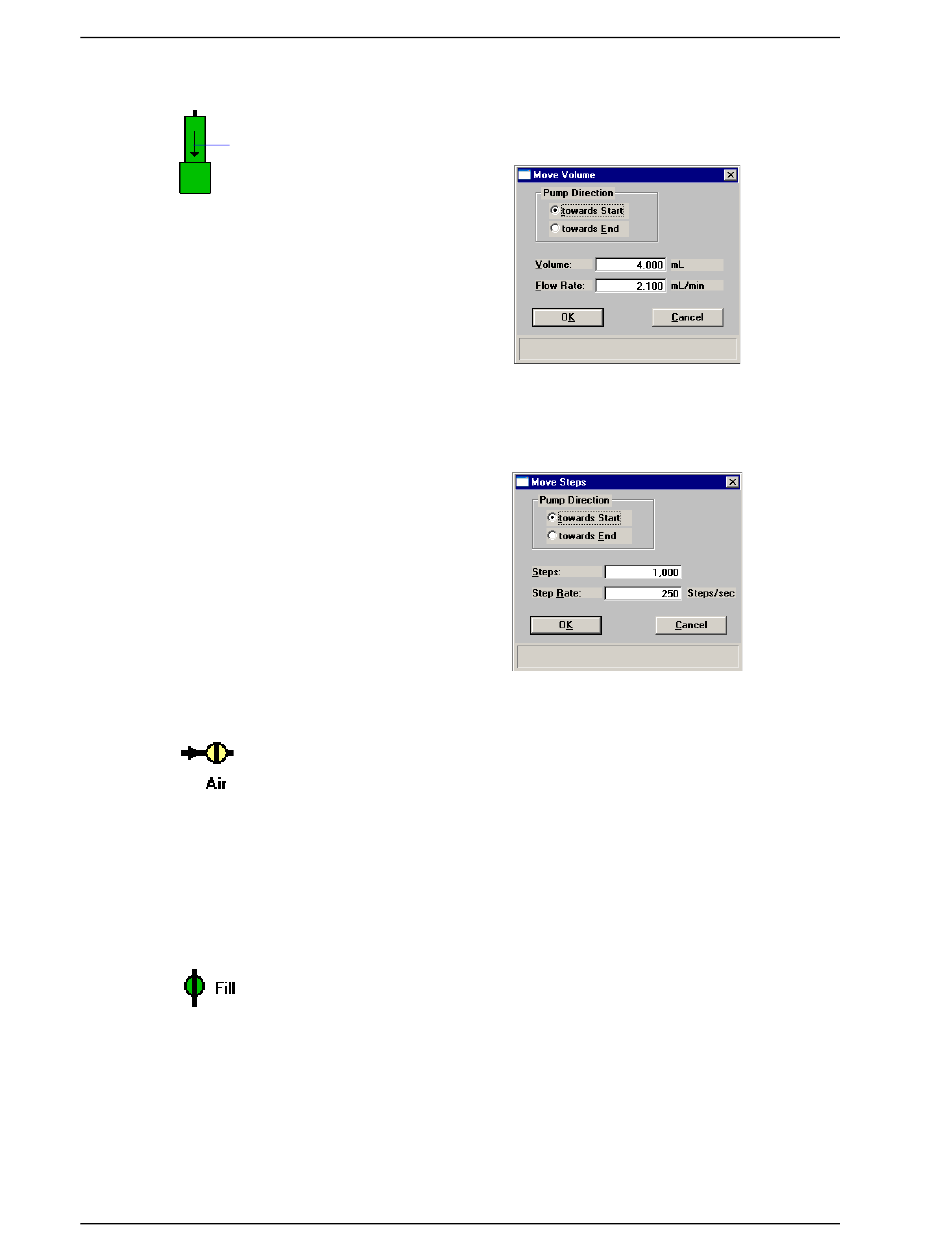

Move Volume displays a dialog enabling you to specify
flow direction, the total volume to move, and the flow
rate.
Move Steps displays a dialog enabling you to specify
flow direction, the number of steps to move, and the rate
at which to move the steps.
Supplies air to the system for draining the liquid; auto-
matically opens when you perform the draining opera-
tion.
Actions: Open
Close All closes all valves and turns off the Servo valve.
Allows fillling of the orifice with liquid.
Shows valve
Actions: Open
in an open
position.
Close All closes all valves and turns off the Servo valve.
Close
Close All
Close
Close All
539-42822-01 (Rev A) - Nov 2017
Enable Manual Control
