Micromeritics Elzone II 5390 Operator's Manual page 22

Elzone II 5390 Confirm

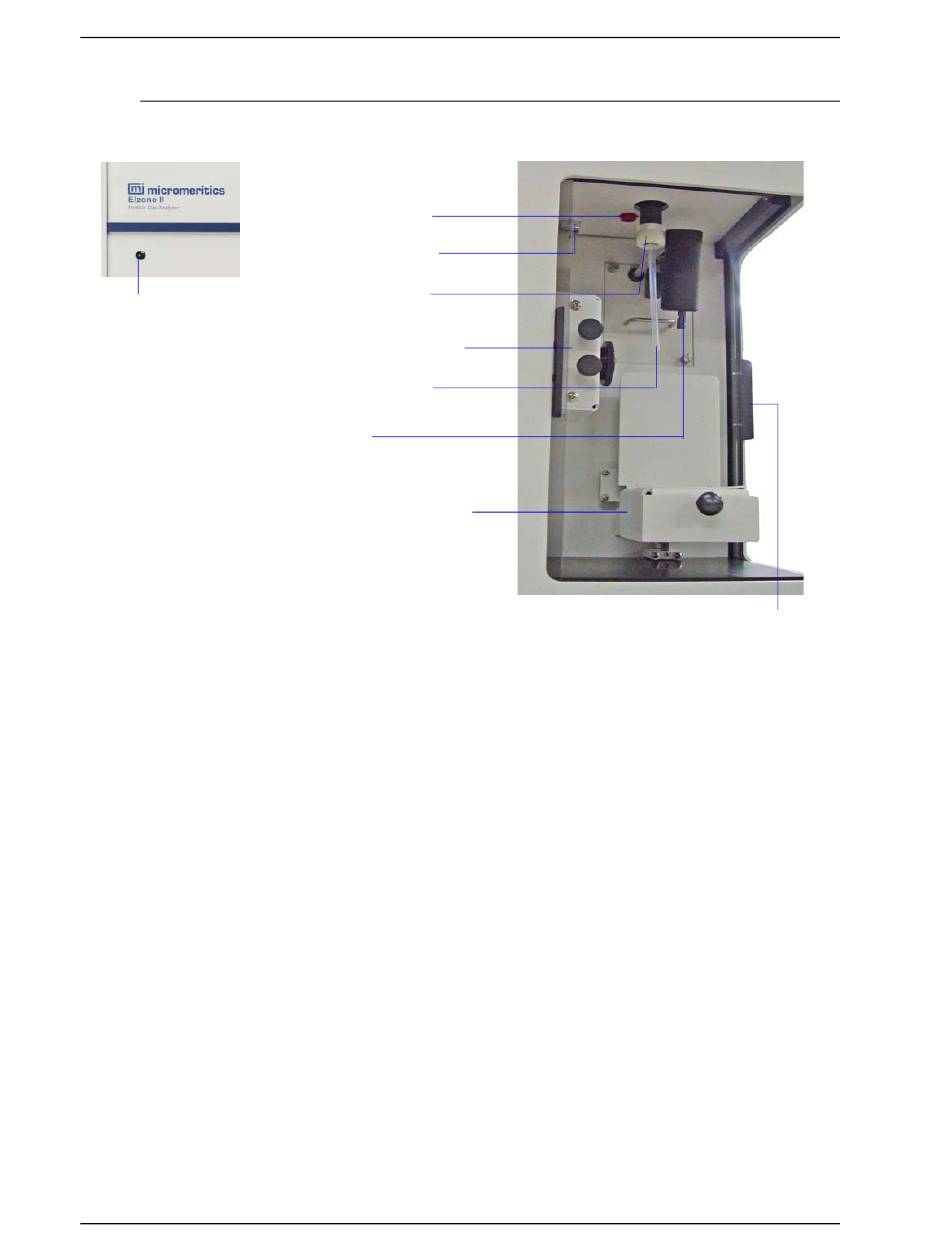

Front Panel
Power Indicator
(upper left side of
front panel)
Compartment doors
Power Indicator
Electrode connector
Camera assembly
Orifice light connector
2-2
Electrode (external)
connector
Orifice light connector
Sample port
Camera assembly
Exit tube
Stirrer assembly 
(shows rotary stirrer installed)
Sample Stand
The sample compartment contains two sliding doors.
These doors should always be closed during an analysis.
The door on the right side contains a reflector which
serves to diffuse the orifice light (when the camera option
is installed).
Illuminates when the analyzer is turned on.
For connecting the external electrode.
(optional) Enables you to capture pictures of the orifice
jewel and display them on the computer screen.
For connecting the orifice light (included with the camera
option). The orifice light provides a backlight for the
orifice when capturing pictures. Also illuminates the
sample beaker, providing a clear view of particle
suspension.
Controls, Indicators, and Connectors
This door contains a reflector (used to
diffuse the orifice light when the
camera is installed).
