Micromeritics Elzone II 5390 Operator's Manual page 184

Elzone II 5390 Confirm
Click Next
Be sure the
reference
materials
required in the
calibration are
checked.
View
Reference Material
Identification List
Show only materials in 
range of orifice tube
5-24
to advance to the next view of the calibration dialog.
Allows you to view one of the following in the current
window:
• the current operation
• the instrument schematic
• the instrument log

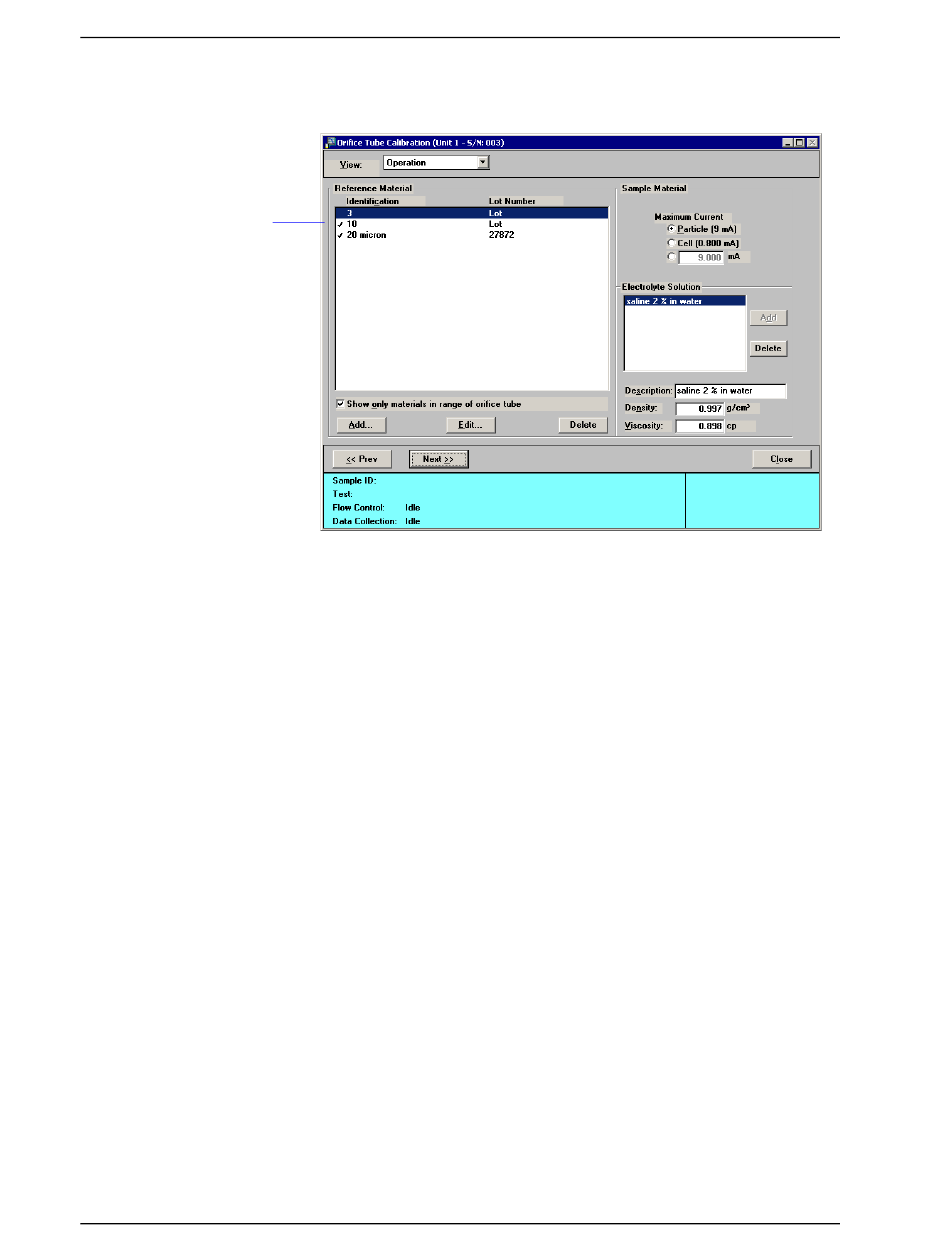

This window lists the reference material(s) required to
calibrate orifice tubes. Reference materials required for
the current calibration must be selected (check mark).
Double-click on the reference material to place (or
remove) a check mark.
If the reference materials required for the calibration are
not in the list, use the
Select this option to show only the materials appropriate
for the current orifice tube.
Orifice Tube Calibration
push button to add them.
Add
539-42822-01 (Rev A) - Nov 2017
