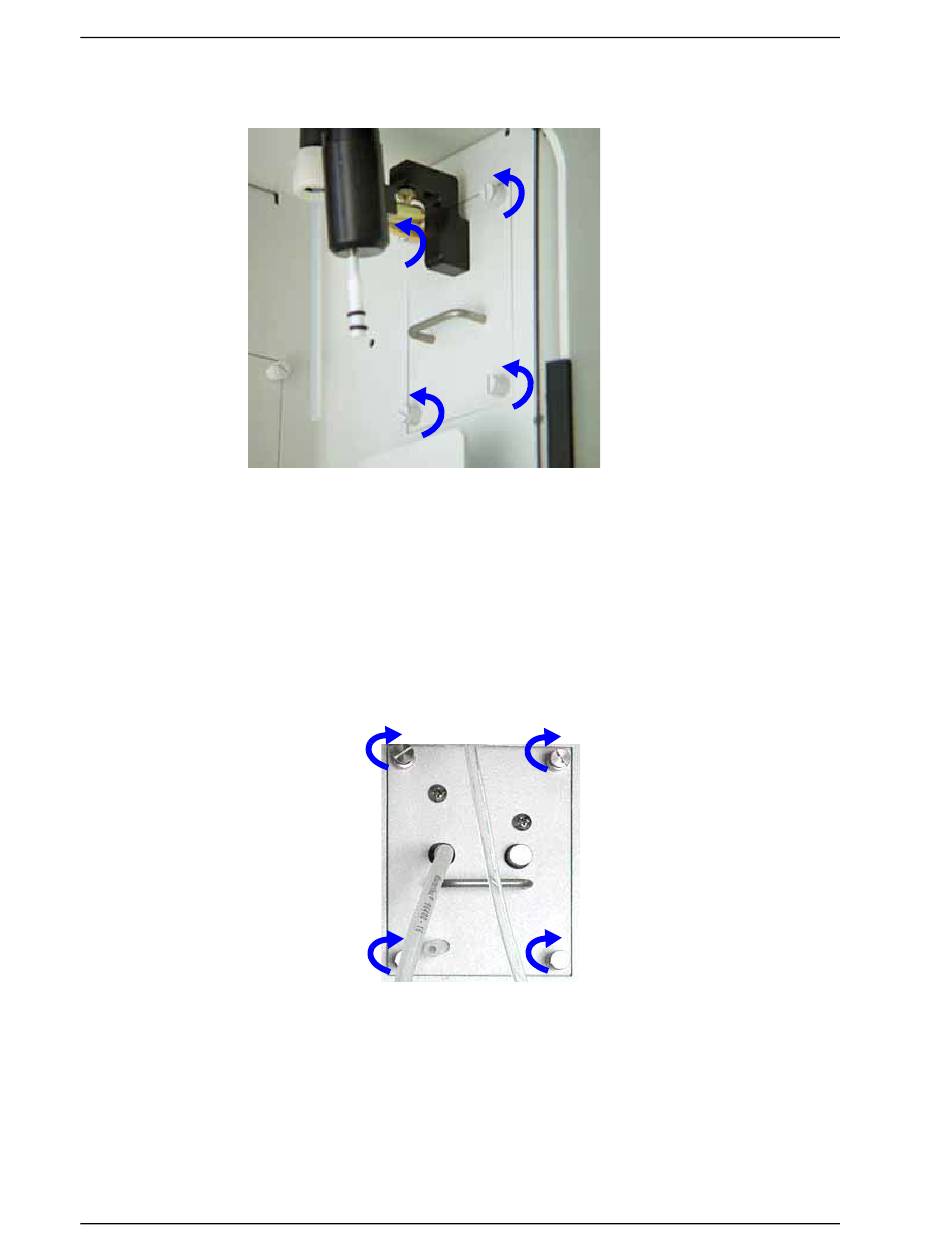

4. Turn the four captive thumb screws counterclockwise to loosen the stirrer assembly.
5. Slide the stirrer assembly out and store in a secure location for future use.
6. Insert the hydropulser assembly, ensuring that the back plate of the hydropulser
assembly slides into the two slots inside the opening.
7. Make sure the hydropulser assembly is flush with the analyzer back panel; this
ensures that the connector on the back plate of the hydropulser plugs into the
connector inside the analyzer.
8. Turn the four captive thumb screws clockwise to tighten.
8-14
Installing the Hydropulser
