Appendix G
Light Assembly
1.

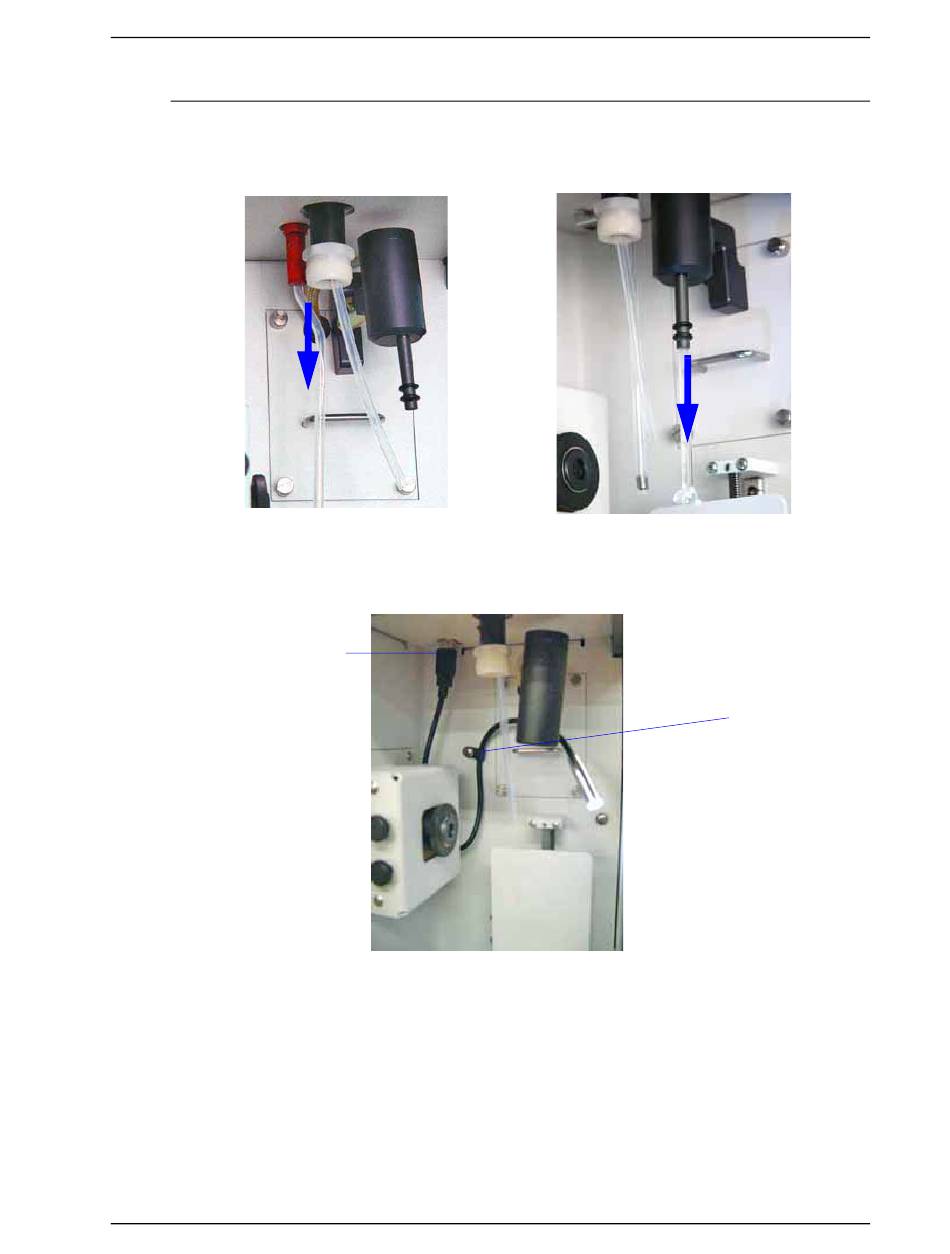

Remove the external electrode and the stirrer for easy access to the connector for the
orifice light cable.
2.
Connect the orifice light cable to the connector inside the top panel of the sample
compartment.
Orifice Light Cable
Connector
3.
Using a Phillips-head screwdriver, remove the mounting screw on the back panel of
the sample compartment.
4.
Insert the screw through the retaining clip, then back into the hole on the back panel
of the sample compartment; tighten with a Phillips-head screwdriver.
539-42822-01 (Rev A) - Nov 2017
Elzone II 5390
Retaining Clip
G-5
