Diagnostics
Diagnostics
This option enables you to perform a diagnostic test to determine if the signal processing
circuitry is operating properly. This test actually emulates an analysis sending electronic
pulses through a series of predefined ranges. Your service representative may request this
test when data results are inaccurate and you have been unable to resolve the problem.
The data generated from this test may be insignificant to you as a user, but can be very
helpful to your service representative. Your service representative may be able to view
the results of this test and resolve the problem, eliminating downtime and repair costs.
This test generates a file to the cfr5390\Service\userdiag directory. Your service repre-
sentative will request that you E-mail this file to him so that he may examine it. If Mail is
unavailable, you may print the report and fax it. Your service representative will provide
you with the applicable destination information.

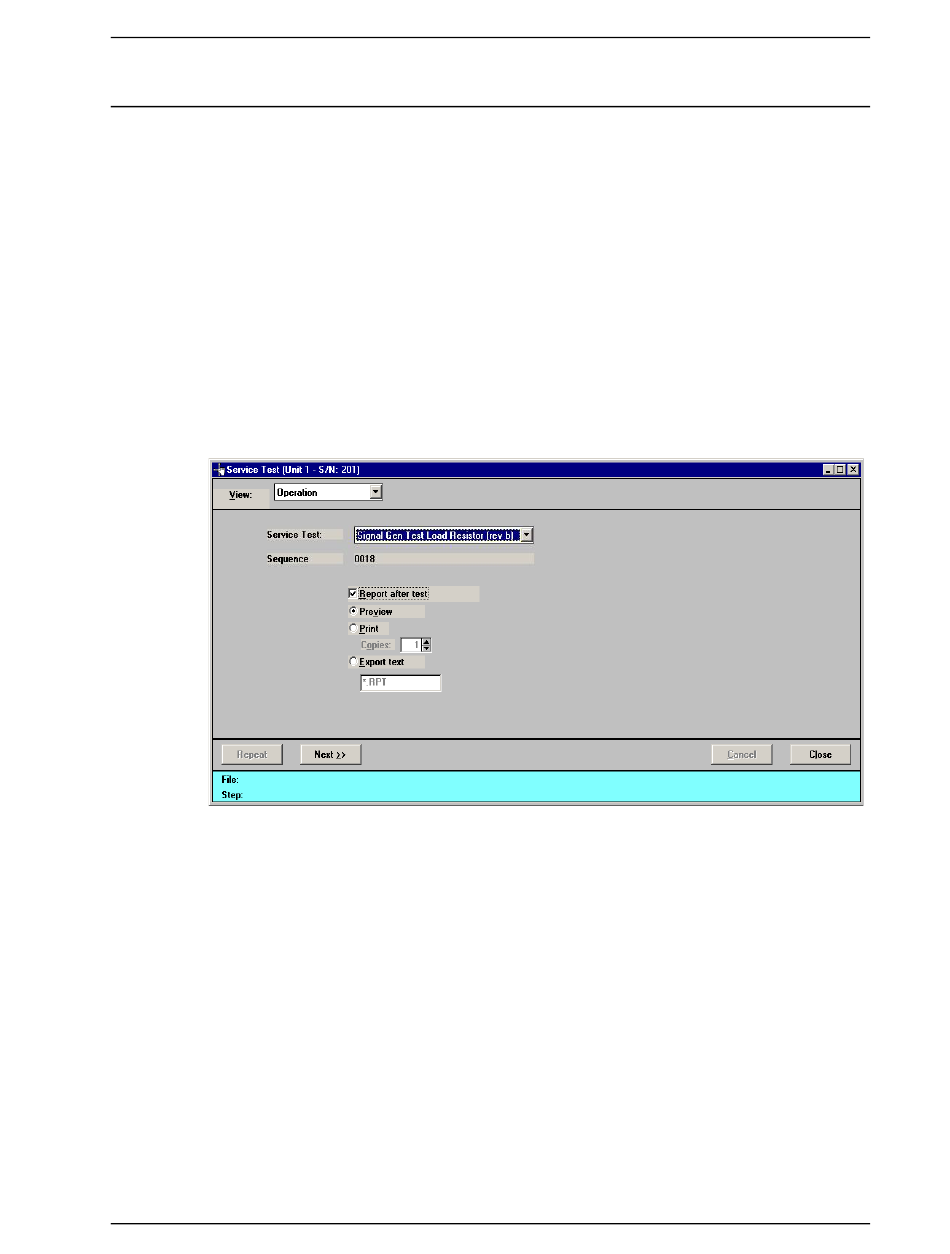

When you select Unit [n] > Diagnostics, the Service Test dialog is displayed:
View
Sequence
539-42822-01 (Rev A) - Nov 2017
Allows you to view the current operation (operate), the
instrument schematic, or the instrument log in the Ser-
vice Test dialog. Operate is the appropriate choice for
this test.
Displays the test file number. This number is assigned
automatically and incrementally sequenced by the soft-
ware each time a test is performed. This also serves as
the name of the file that is generated to the userdiag
directory, and will be appended with SVT. For example,
the name of the file for the test shown in the above dia-
log is 0018.SVT.
