Elzone II 5390 Confirm
Samples
Tests
Plot
Edit
X-Axis
Y-Axis
Autoscale
4-32
Enables you to overlay the current curve with the same
type of curve from multiple sample files. Click
on the Report Options dialog to choose the sample file(s)
containing the desired curves.
Enables you to overlay the same type of curve from all
tests performed with this file.
Enables you to overlay a different variable with the
selected variable (the one you are currently editing). Use
the Edit button to specify details.

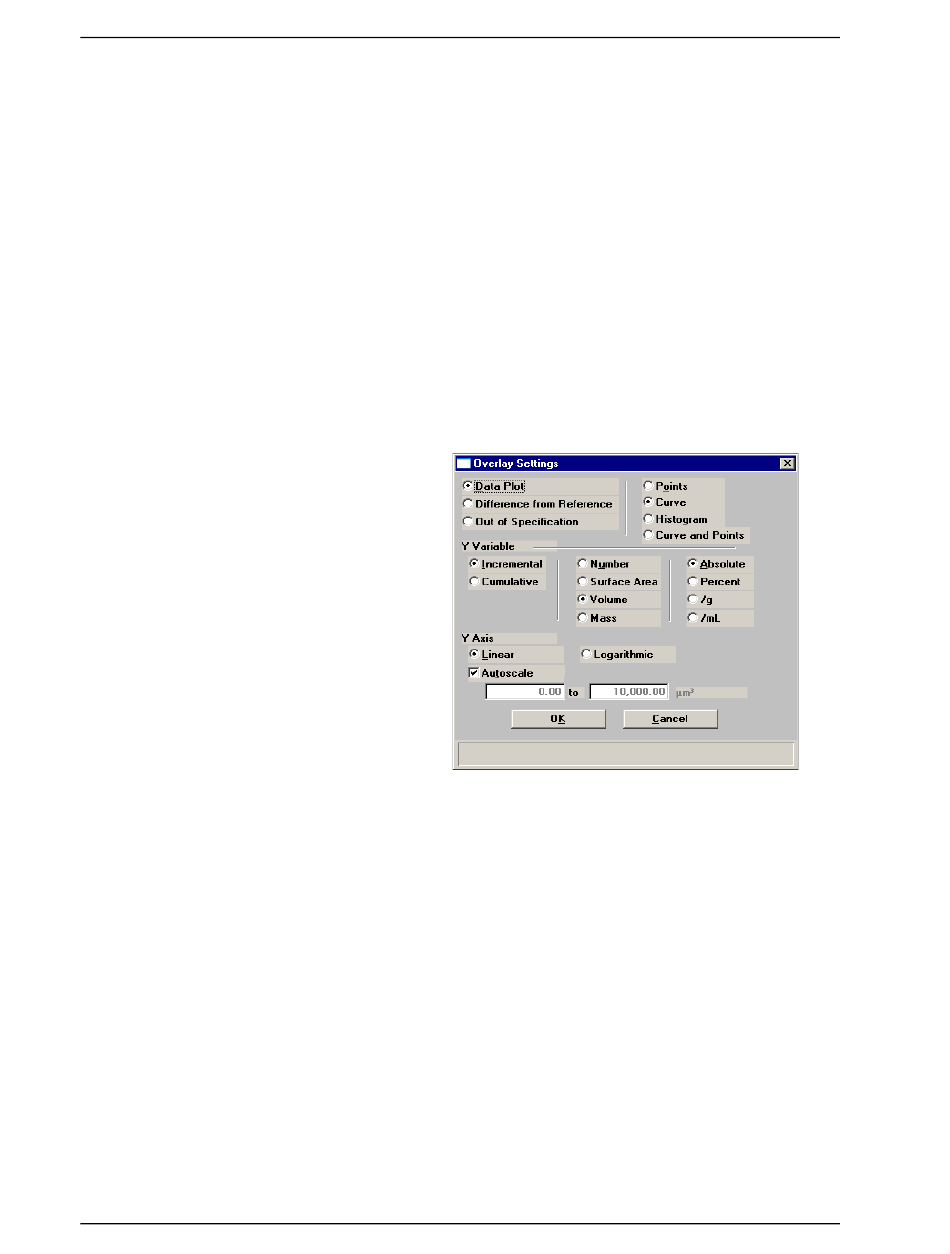

Enabled when you choose Plot as the type of overlay
allowing you to choose the overlay variable and specify
details; the Overlay Settings dialog is displayed.
Allows you to choose between a Linear or Logarithmic
scale as well as autoscale options.
Select this option to have the Y-axis scaled automatically.
The scale begins at zero; the highest values collected dur-
ing analysis are the ending points.
If you deselect this option, the adjacent fields become
enabled so that you may specify a range. Valid ranges are
displayed in the information bar when the field is
selected.
Overlays
539-42822-01 (Rev B) - Nov 2017
New
