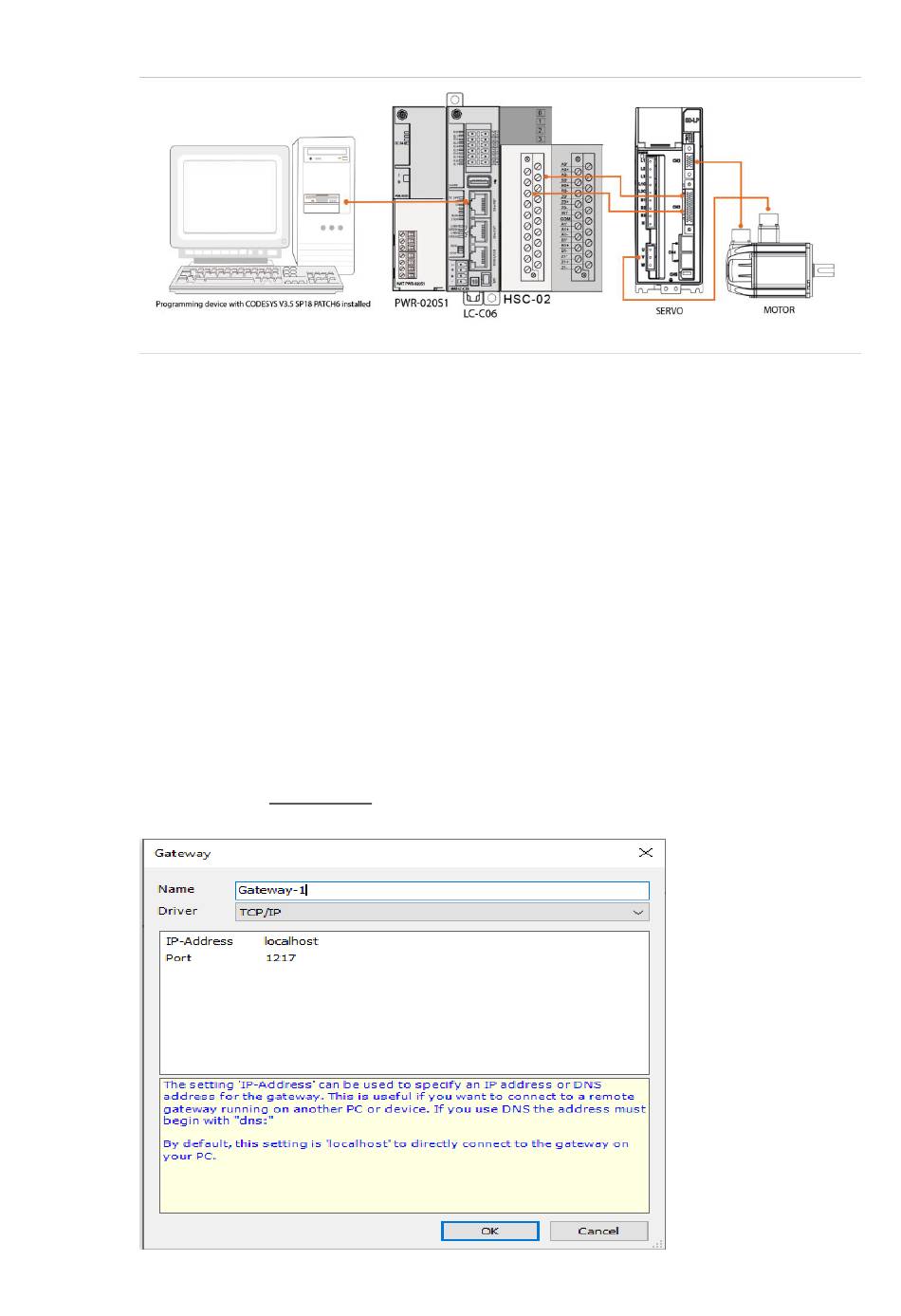

2. Network connection
3. Operating steps
Step1: Wiring
Open front panels of LC-C06 and power module PWR-020S1, wiring according to below steps:
1）Connect programming device and LC-C06 (EtherNET communication port) with standard
network cable.
2）Connect LC-C06 and high speed counting module via bus.
3）Connect programming device and SMB servo driver with standard network cable.
4）Connect SMB servo driver and motor with encoder cable.
5）Wiring for high speed counting module and SMB servo driver.
Step 2: Run the drive system
Set parameters of SMB servo driver to run the motor, refer to <SMB Series AC Servo Driver User
Manual> for more detailes.
Step 3: PLC communication setup
Refer to Chapter 2 Introductory and set communication in CODESYS, to establish
communication beteween LC-C06 and programming device.
