7.2.1

Application example of high speed counting module

1. Preparation

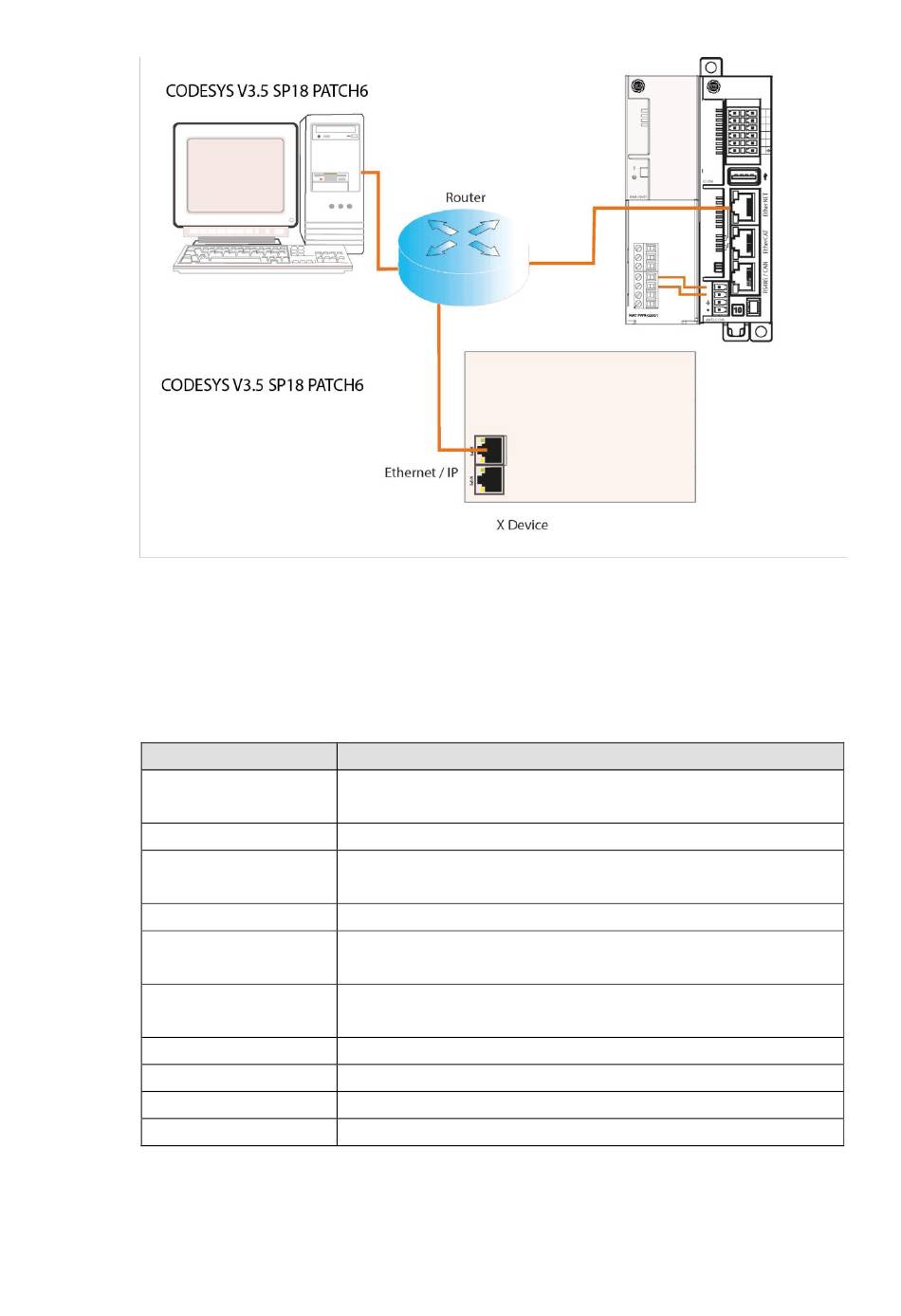

Table 7-9 Example components
Component
Programming
PG\PC
Install guide rail
Power
PWR-020S1
External power supply
LC-C06 master module
HSC-02
counting module
Servo equipment
Servo motor
Standard network cable
Encoder cable
device Install programming device with CODSYS V3.5 SP18, to
configurate, program and debug LC-C06 PLC.
As system frame of MAT-LC-CXX, to fix modules of the system.
module Supply power for LC-C06 motion controller and 24 VDC load
circuit.
Power supply of SMB servo driver.
CPU executes user program and provides 5V voltage for
backboard bus of MAT-LC-CXX system.
high speed Connected with LC-C06 via bus and to count motor speed,
position, etc.
SMB servo driver
Connected with SMB servo driver.
To connect programming device and CPU, SMB servo driver.
To connect SMB servo driver and motor.
Function
