2、Enter the command in the implementation part of PLC_PRG
Expand "Ladder Diagram Elements" in the toolbox on the right side of the LD language editor,
use the mouse to drag "Power-on Delay Timer TON" to the implementation part of the language
editor, and then drag from the "Ladder Diagram Elements" of the toolbox A reset coil is placed
behind the output point Q of the TON command. Using the same operation, create a TON
instruction in network 2.

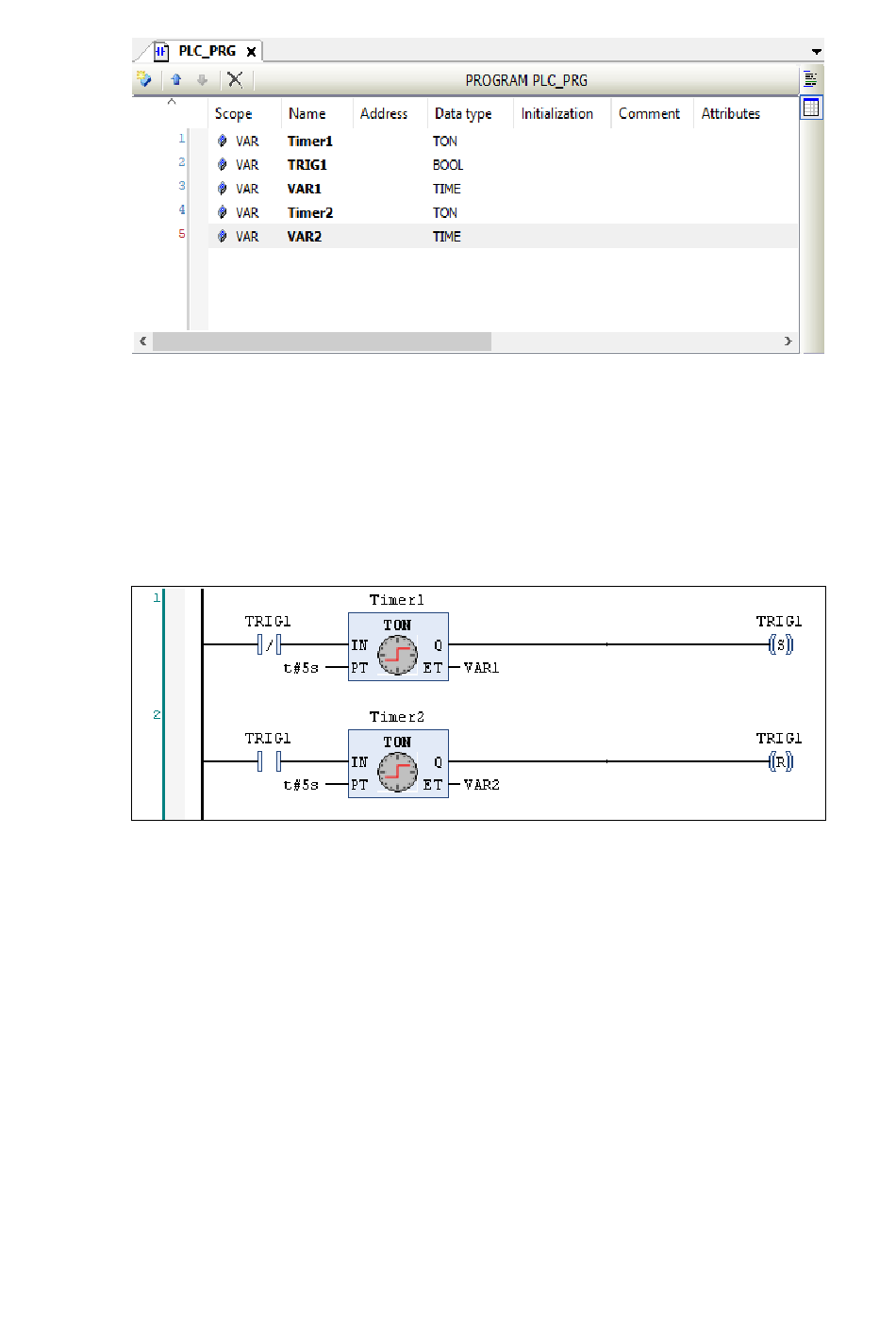

The final LD program completed in this example is as follows:
2.5

Compile and Run the Program

1、Save the current project and compile
After the program is written, save the current project, and then select the menu item "Compile" to
check the syntax of the current object. When the syntax check is completed, any error messages
and warnings will be displayed in the message window of the "Compile" class. If there are no
errors, the compilation is successful.
