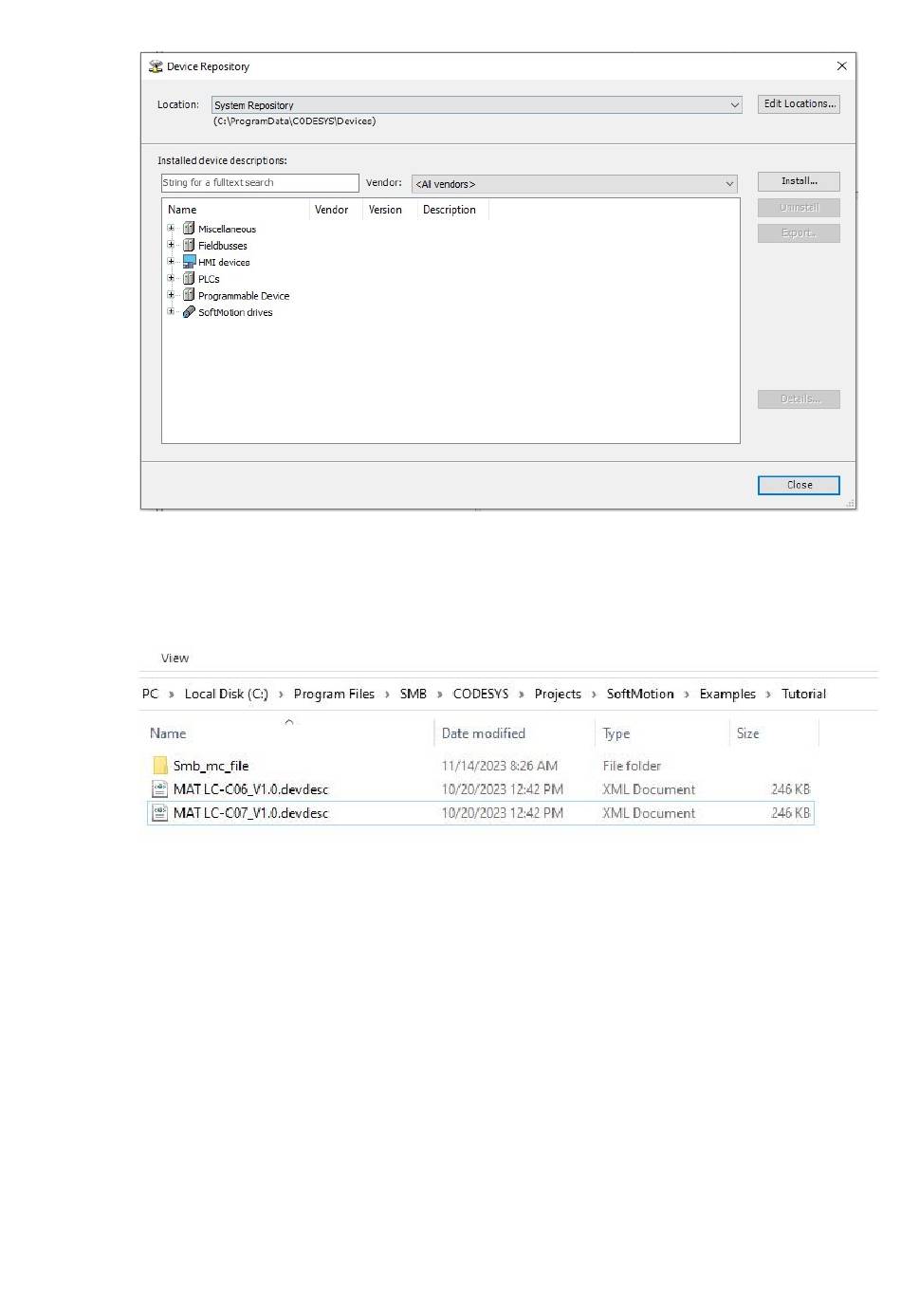

2. After the above operation, a dialog box will pop up as follows. Please select the file type
"Device Description Configuration file (*.devdesc.xml)". Select MAT LC-C06_V1.0.devdesc.xml
or MAT LC-C07_V1.0.devdesc.xml and click Open. The installation is successful.
H.3
Install CANopenslave EDS file
1. Open the CODESYS software, select the menu "Tools" → "Device Repository" to open the
following dialog box, and click "Install" in the dialog box.
156
