3. Communicaition setup
Before communication setting, set IP of programming device PG/PC and LC-C06 (IP:
192.168.0.X) in the same network segment: in local connection property of PC, double click
TCP/IP protocol, change "Get IP address automatically" to "Use the following IP address", then

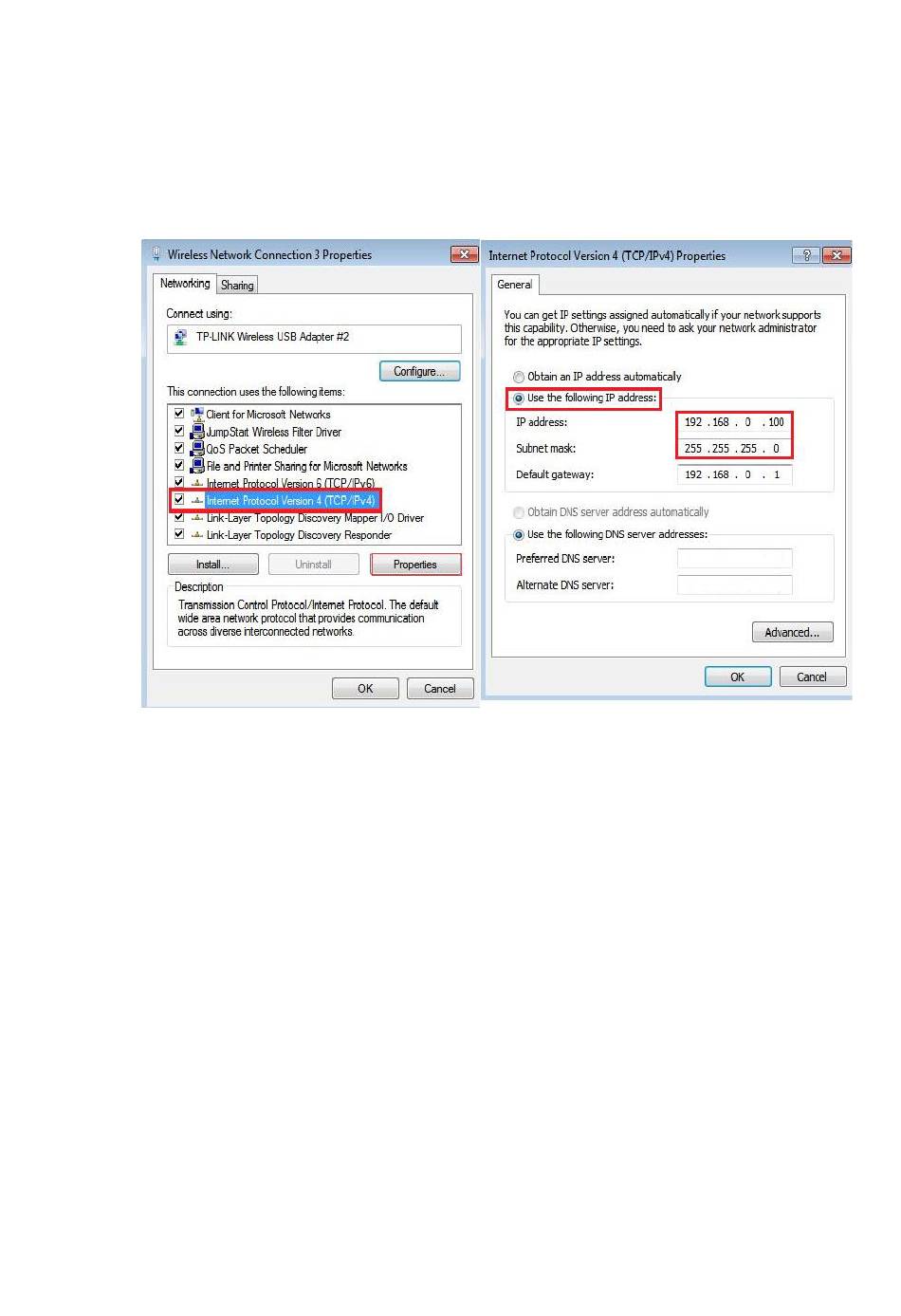

input the IP address "192.168.0.X". Shown as below pic:
4. CPU setup
In devices view of Codesys, double click "device (MAT-LC-C06_V1.0)" to open the device dialog
box, as shown in below figure. Click "add gateway" button in the "gateway" drop-down menu in
the "communication setup" tab, enter "name", "drive" in the pop-up "gateway" dialog box, select
"TCP / IP", "IP address" and "localhost", and finally click "OK" to close the dialog box. LC-C06 will
be added to the communication dialog box.
Click "Scan network" after LC-C06 is added and find available devices in local network. If
succeed, select the device and click "Set active path" button to activate setting of communication
channel, which is related to all communication operations.
