<Remark> When the system is started, CODESYS related service programs (such as ,
etc.) will appear at the system tray. If no special requirements, there is no need to operate the
service programs in the tray.
5. Operating steps
Step 1. Connect to power supply for each device.
1）Open front panels of LC-C06, power module PWR-020S1 and refer to above diagram for
connectiong LC-C06 to PWR-020S1.
2）Connect the main system to main power and control power supply.
Step 2. Connect each device with cable.
Network connection details as below:
1）Connect PC and EtherNET port of LC-C06 with standard network cable;
2）Connect EtherCAT OUT port of LC-C06 to IN port of first EtherCAT slave with standard
network cable;
3）Connect OUT port of first EtherCAT slave to IN port of second EtherCAT slave with standard
network cable.

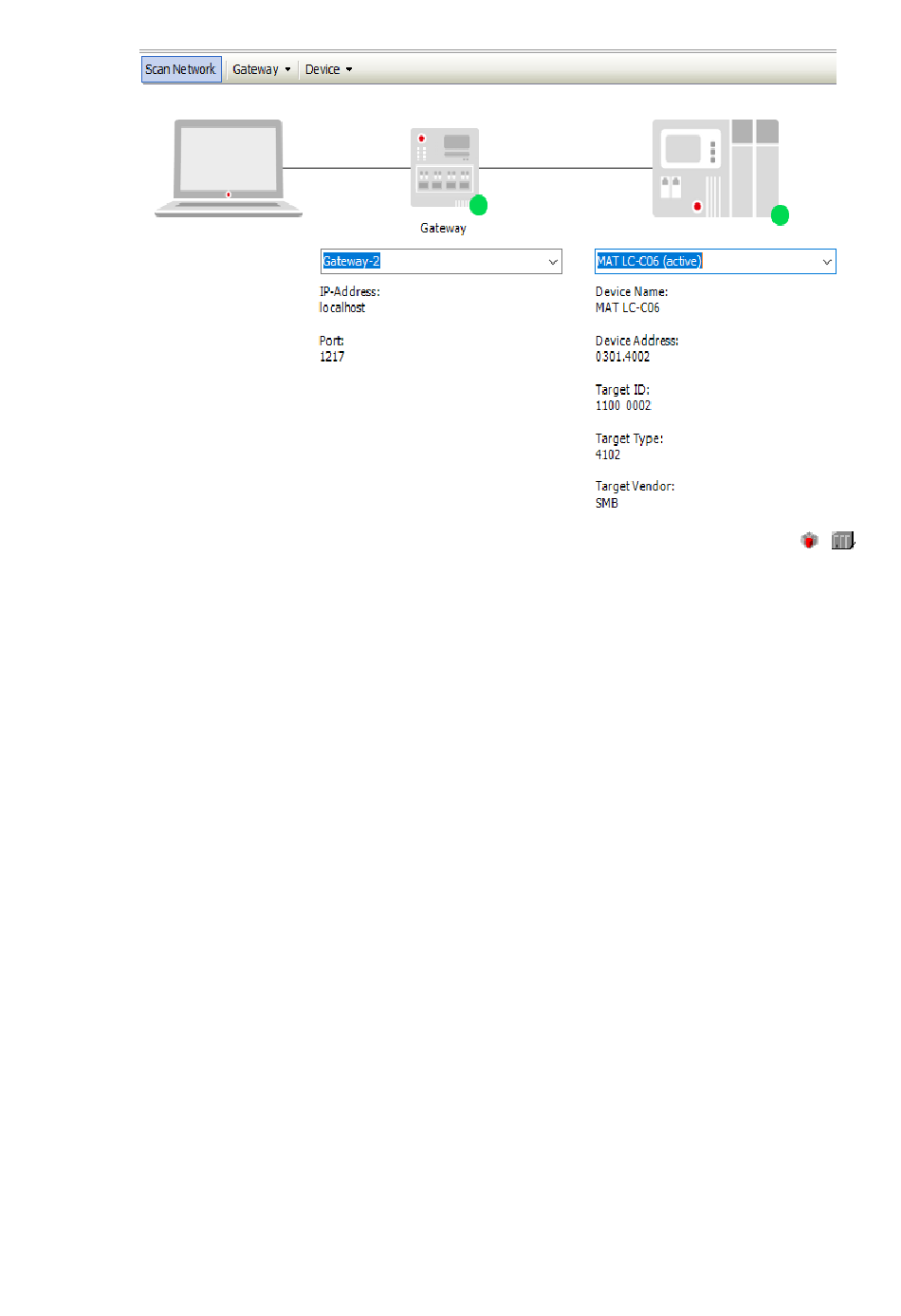

Step 2.1 Connect SMB device with cable.
Network connection details as below:
1）Connect PC and EtherNET port of LC-C06 with standard network cable;
2）Connect EtherCAT IN port of LC-C06 to OUT port of first EtherCAT slave with standard
network cable;
3）Connect IN port of first EtherCAT slave to OUT port of second EtherCAT slave with standard
network cable.
