High Speed Counting Module - SMB MAT-LC-C Series User Manual

Wiring Specification

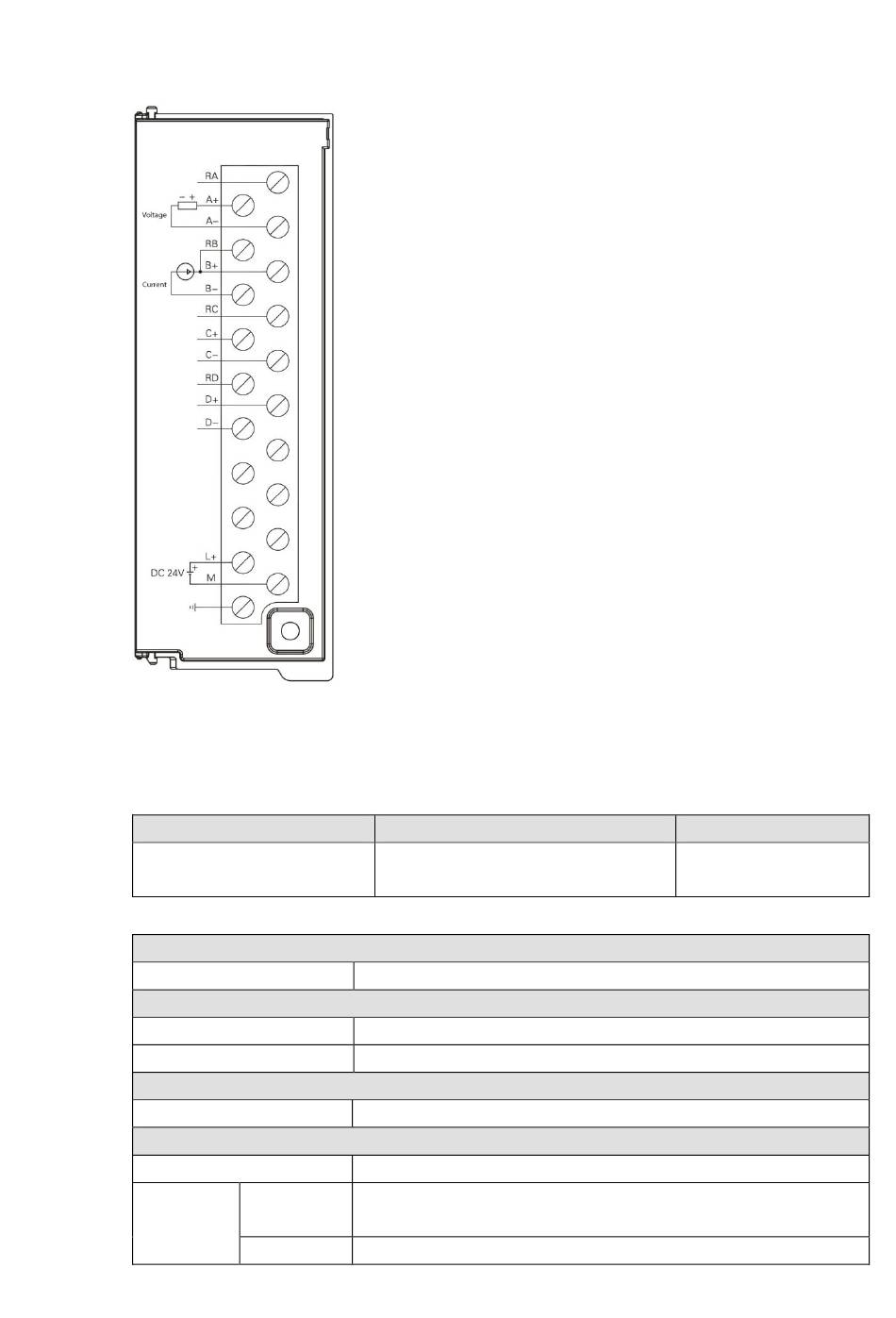

◆ AIS-04 Wiring diagram
C.5

High speed counting module

Table C-20 Intruduction
Table C-21 HSC-02 specifications
Dimensions
W×H×D
Power supply
Bus supply voltage
Bus supply current
LED indicator light
Indicator light
Connection of sensor
Number of input channels
Signal type
Name
2-ch differential/single-ended signal
HSC-02
input
34×115×100 mm
+5V DC
130mA
ON: Exists input signal OFF: No input signal
2
Differential Signal voltage: 5VDC
input Max input frequency: 2MHz
Single-ende Signal voltage: 24VDC
Specifications
121
Part No.
MAT-LC-HSC-02
