SMB MAT-LC-C Series User Manual page 102

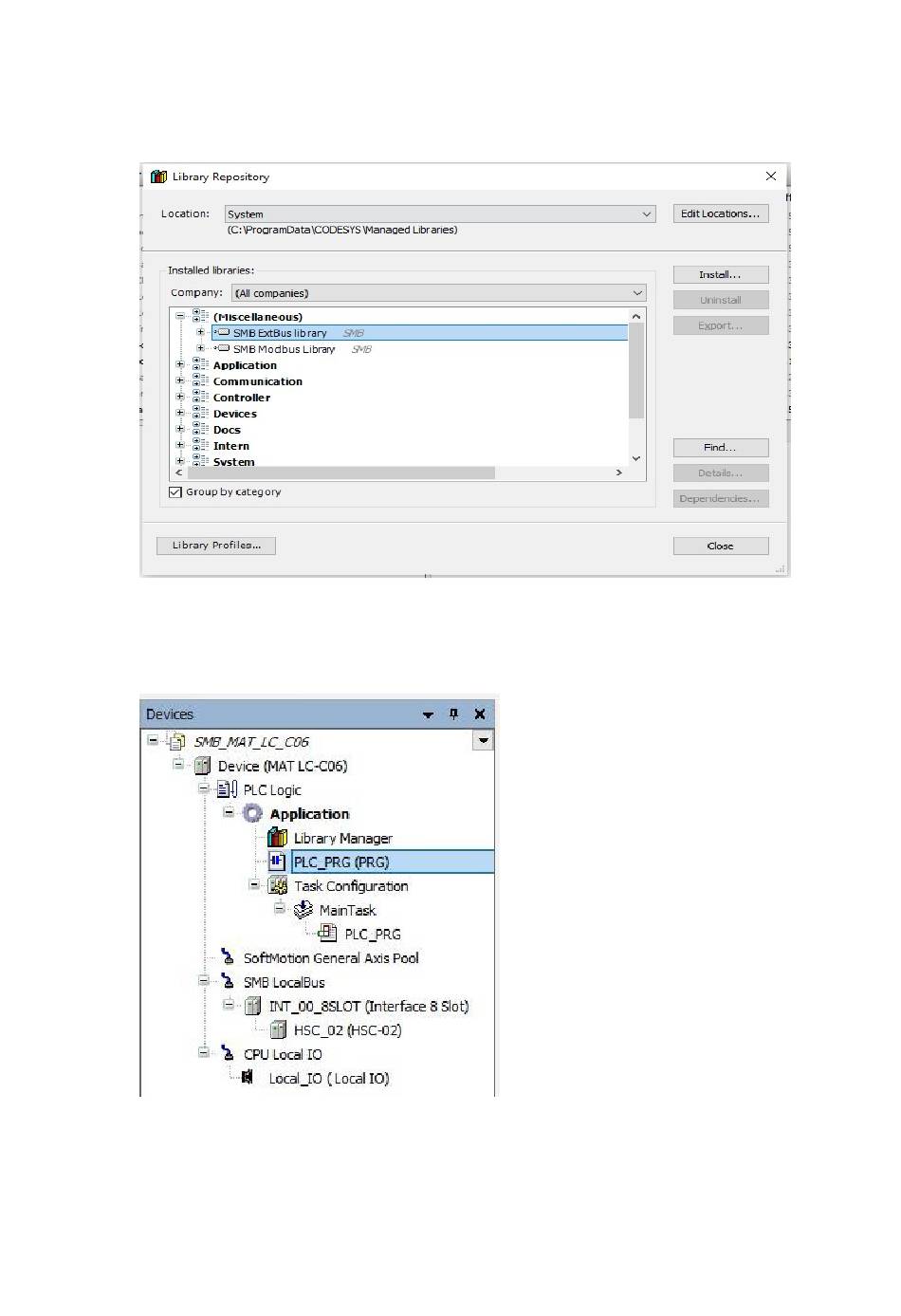

After above operations, refer to below steps to check if the file is correctly installed in device
directory:
⚫ In menu, select "Tools"→"Library Repository"→"Misc." to check installed SMB ExtBus library
3) Program with library file
After library file is added correctly, the instructions of the high-speed counter can be called for
programming, and HSC_GETCV instruction is the example. Firstly, program in PLC_RPG.
Drag a function block with EN / ENO from "Toolbox" on the right, and click the three question
marks in the function block box to display option box.
102
