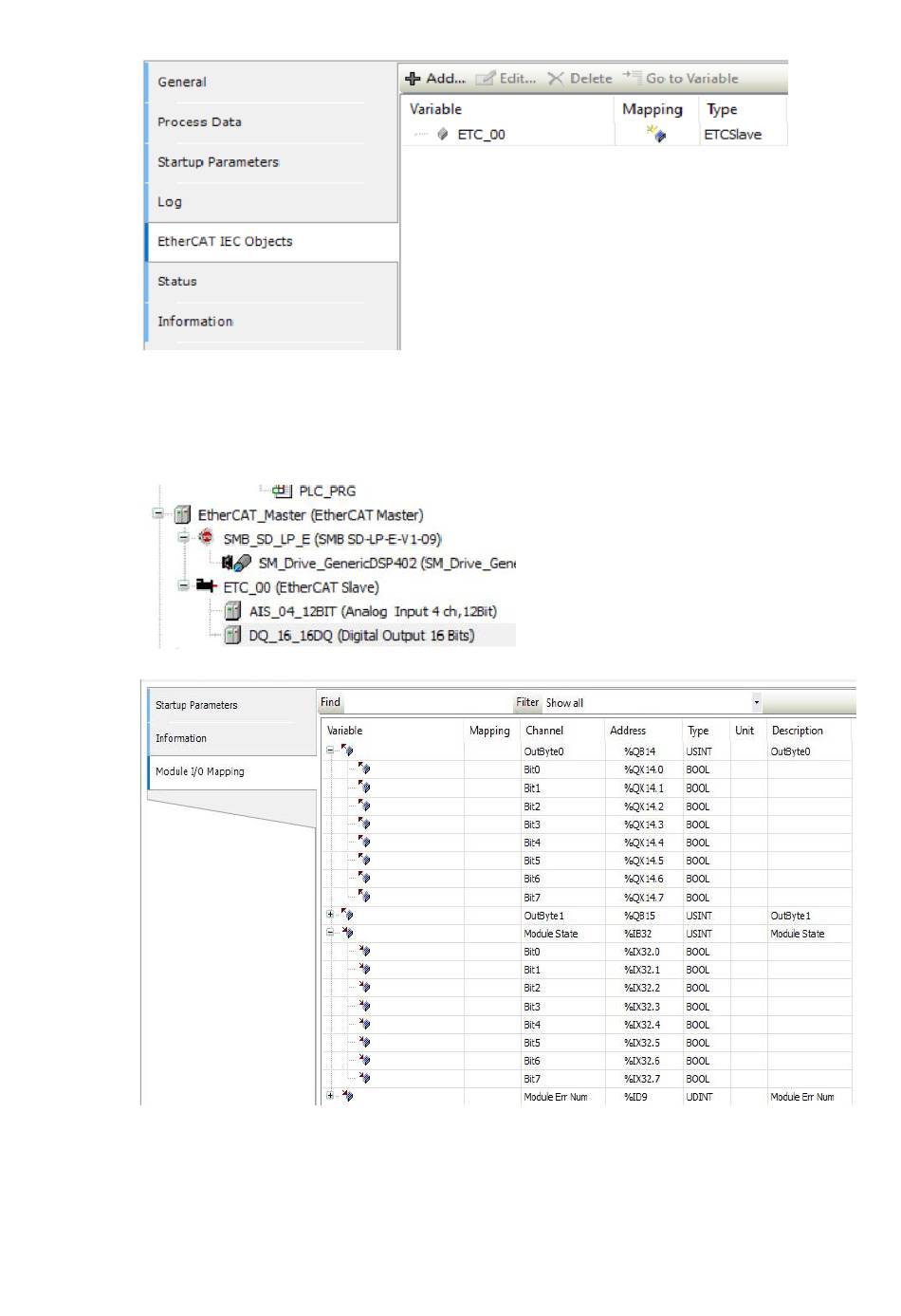

For modules attached under ETC-00 to read and write parameters, do the following: Debug the Module to
which it is attached in the Module I/O Mapping TAB of the ETC-00 slave station (check Always in Bus Cycle
Task). Take the Digital Output 16 Bits input Module as an example. Click DQ-16_16DQ (Digital Output 16 Bits)
below ETC-00 and select Module I/O mapping so that the parameters can be read and written.
Note: The address assigned to each extension module is not fixed. If you add/remove modules,
the corresponding address assigned will change.
