Ethercat Slave - SMB MAT-LC-C Series User Manual

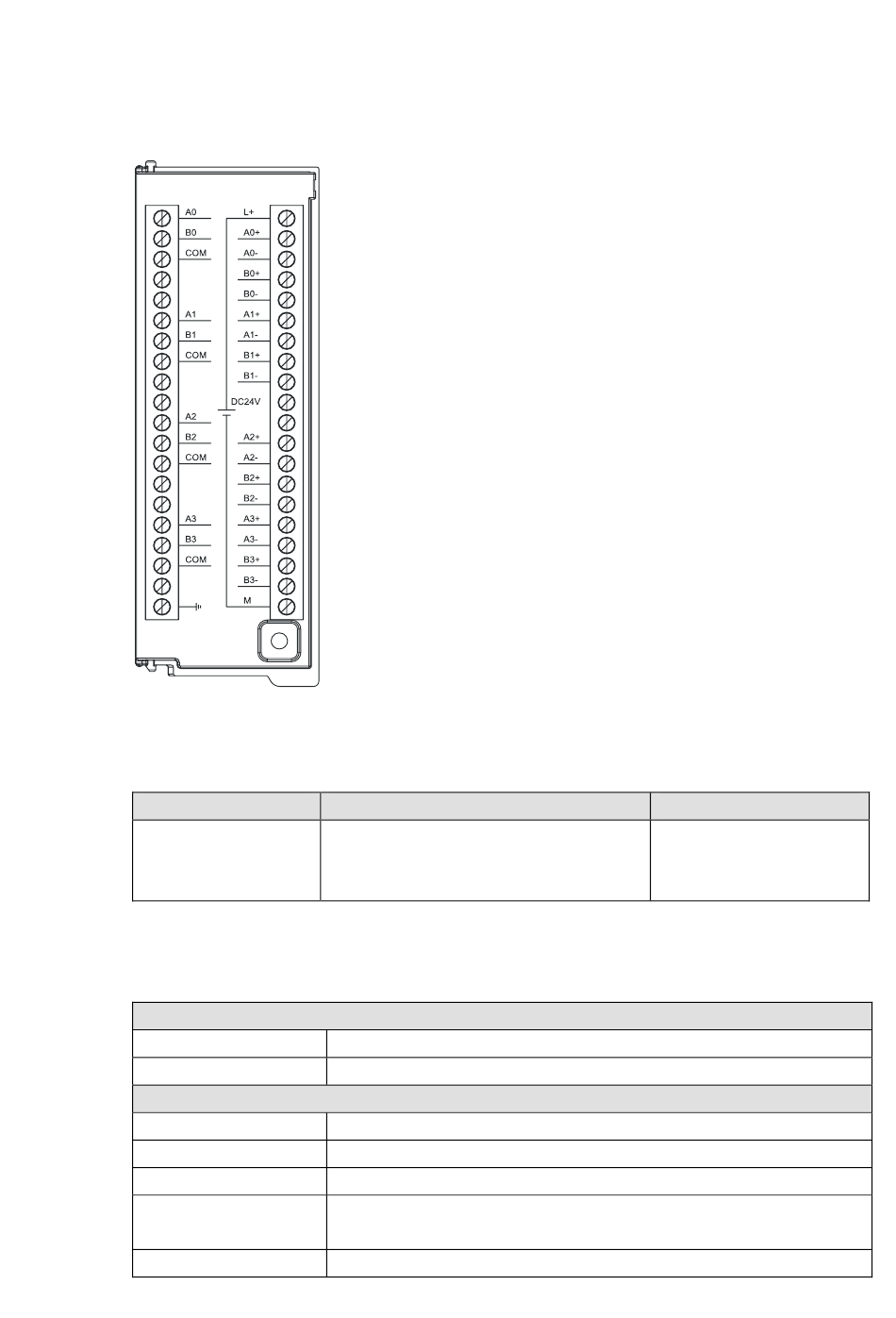

Wiring diagram
C.7

EtherCAT slave

Table C-29 EtherCATslave introduction
Name
EtherCAT slave
Please visit the official website and download the " MAT-LC-CXX Series EtherCAT Slave Module
User Manual" at https://www.smbtechnics.com.
Table C-30 Specifications
Dimensions
W×H×D
TDP
Power supply
Rated input voltage
Input voltage range
Input current
Reverse
proetection
Bus power voltage
Specifications
Supports max 8 expansion modules, only
digital module, analog module and
temperature module can be connected
34×115×100 mm
2.5W
24V DC
20.4V~28.8V DC
0.8A
polarity
Yes
+5V DC
124
Part No.
MAT-LC-ETC-00S1
