SMB MAT-LC-C Series User Manual page 136

2）Add CAN master

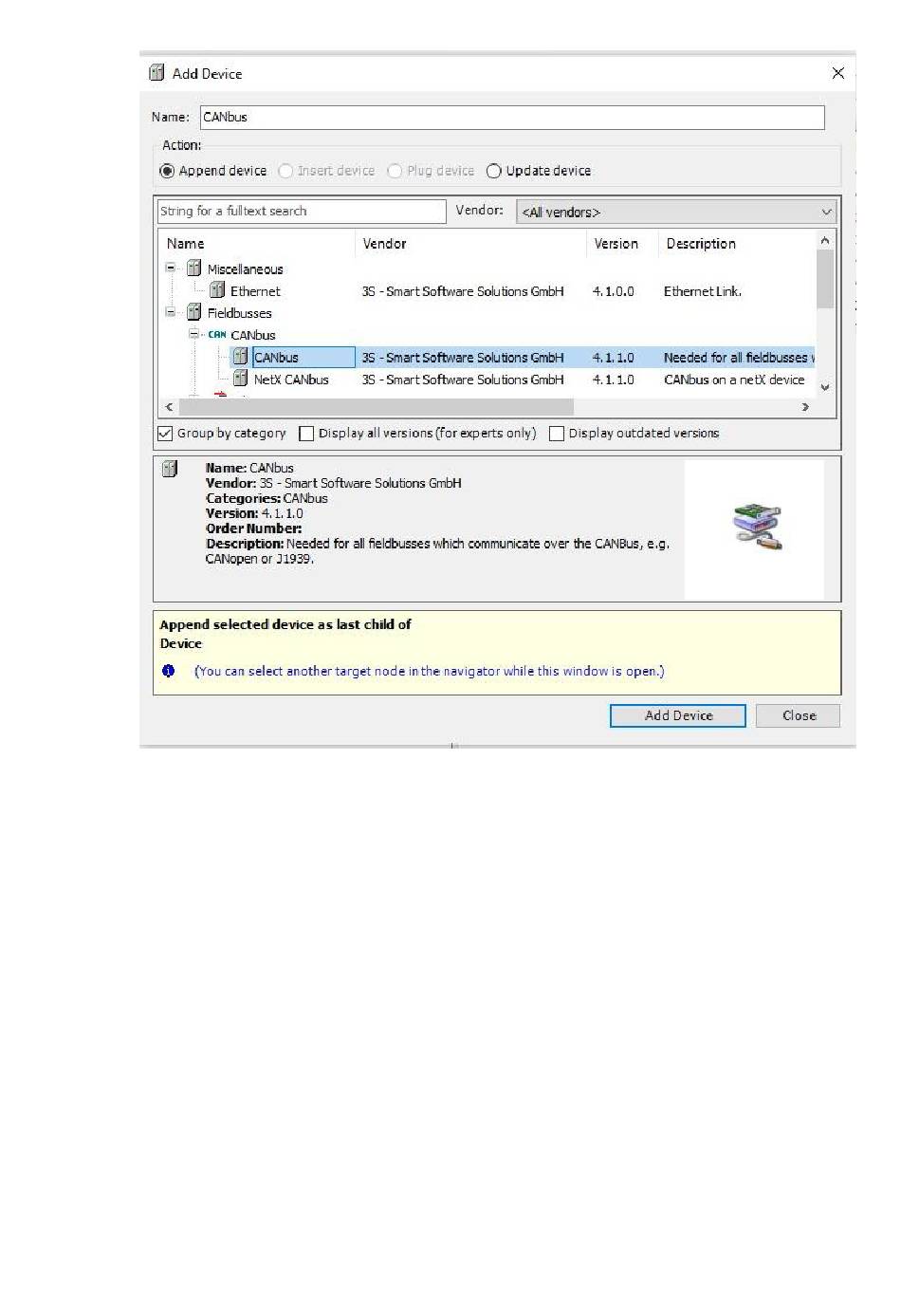

Select the successfully added CANBUS in the device view and right-click Add Device to add the
CAN master station: Fieldbus →CANopen→CANopen Manager →CANopen_Manager in the
Add Device dialog box.
3）Add or Scan CAN slave
Select the successfully added "CANopen_Manager" in the device view and right-click "Add
Device" to add CAN slave station in the "Add Device" dialog box: Fieldbus →CANopen→
Remote device → SMB_SD_LP_X; Or right-click "CANopen_Manager" and choose "Scan
Device". The slave device connected with CANopen master can be displayed below the CAN
master.
136
