2.3

Set Up Communication

Please refer to the following steps to set up the communication between LC-C06 and the host
computer:
1、Set the IP of the programming device to the same network segment as the LC-C06
Before setting the communication, it is necessary to set the IP of the programming device PG/PC
to the same network segment as the LC-C06 (IP: 192.168.0.x). Setting method: open the local
connection properties of the PC, double-click the TCP/IP protocol, Change "Obtain an IP address
automatically" to "Use the following IP address", and then fill in "192.168.0.X" in the IP address.
2、Execute "Communication settings" in the CODESYS device view
Double-click "Device (MAT-LC-C06_V1.0)" in the device view to open the device dialog box, then

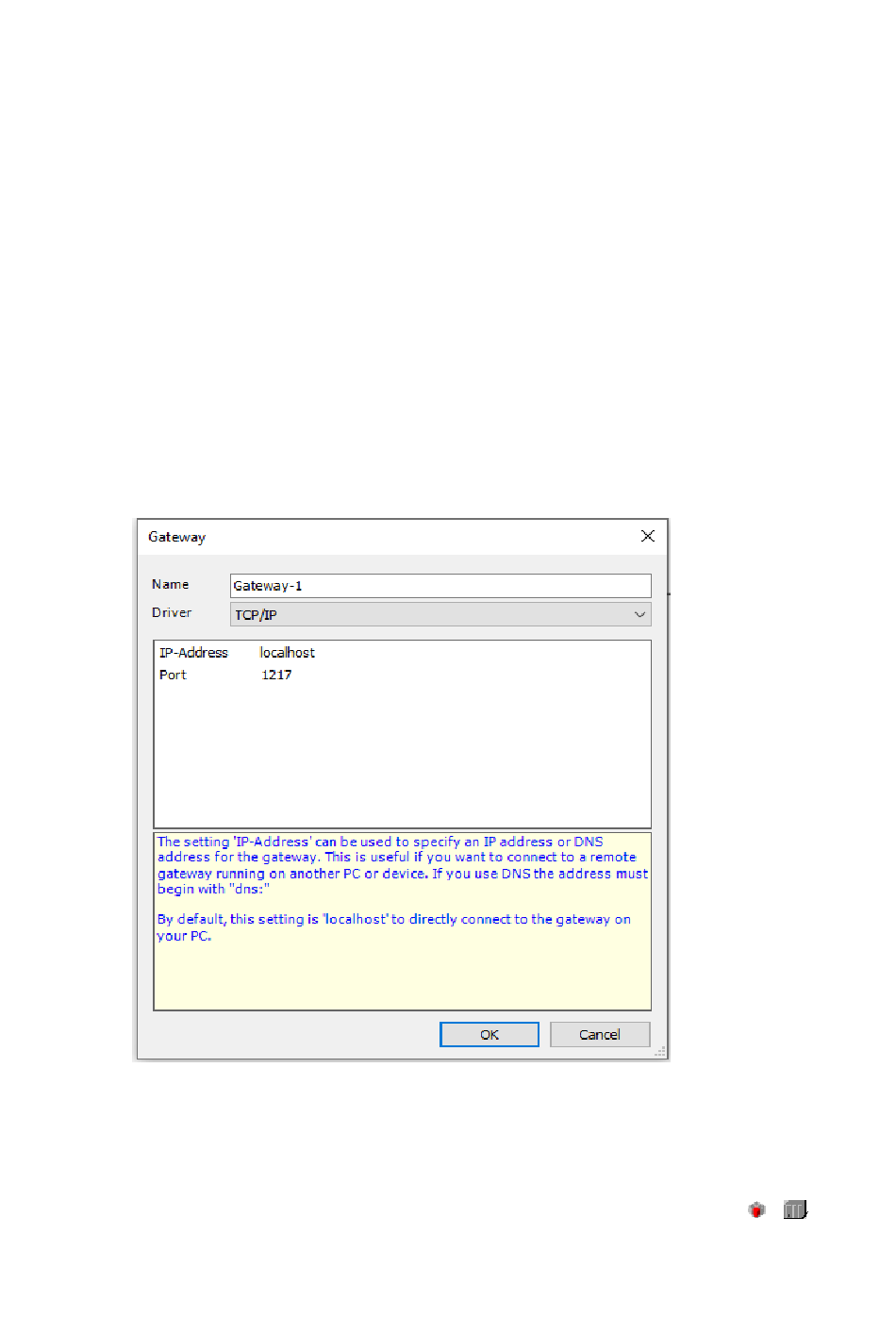

click the "Gateway" button in the "Communication Settings" tab, then click "Add Gateway", in the
pop-up "Gateway" "In the dialog box, enter "Name", "Driver", select "TCP/IP", "IP Address" and
select "localhost", and finally click "OK" to close the dialog box, LC-C06 is added to the
communication dialog box.
Select the successfully added LC-C06, and then click the "Scan Network" button to search for
available devices on the local network. If the search is successful, select the searched device
and click the "Set Active Path" button, this operation will activate the communication channel
setting, that is, all communication-related operations will be associated with this channel.
、
<Remarks> When the system starts, CODESYS related service programs（such etc），
will appear in the system tray. If there are no special requirements, there is no need to operate
the service programs in the tray.
