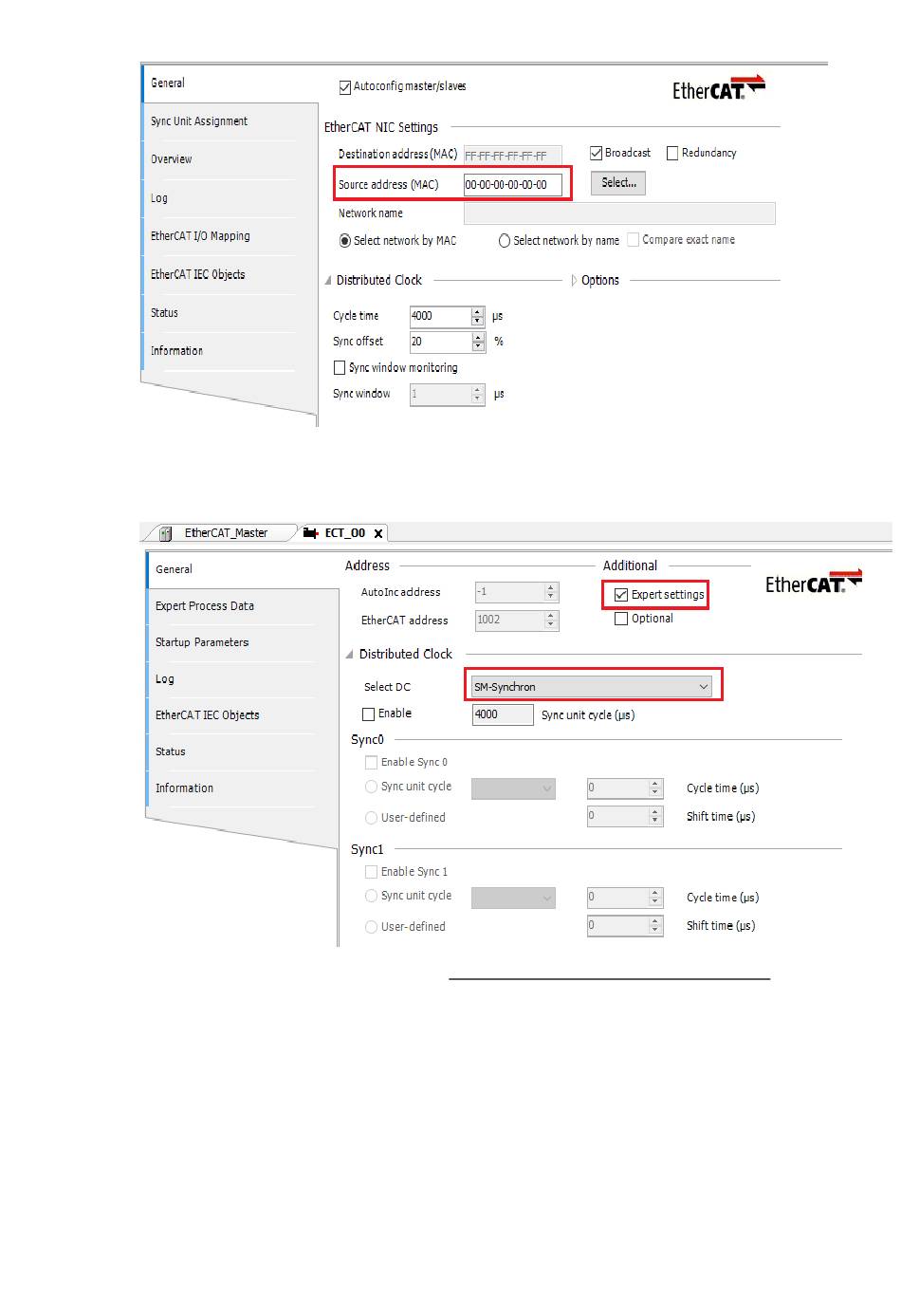

6) EtherCAT slave（ETC-00）configuration
In "Overview" tab, tick "enable expert settings", and set distributed clock as DC "SM-Synchron".
<Remark> Please refer to appendix "F.3 EtherCAT slave device configuration" for more
information.
Step 5. Refer to "communication setup" about communication between LC-C06 and IPC.
Step 6. Run and debug
1）In menu, selecet "Online"→"Log on to..." to connect application program with LC-C06 and
enter online status. Then select in menu "Debug"→"Activate" to run application program in
LC-C06.
