SMB MAT-LC-C Series User Manual page 70

Implement function
The output point Q0.2 is lit, and the input points I2.0 and I2.4 are lit at the same time.
3、Steps
Step 1: Wiring
Open the front panels of the LC-C06, power supply module, digital input (DIT-16), and output
module (DQT-16) and wire them by referring to the communication connections in this section.
The specific operations are as follows:
1) Use the programming cable to connect the PC and LC-C06
2) DIT-16 is connected to LC-C06 by bus
3) DQT-16 is connected to DIQ-16 by bus
WARN
Do not touch the power cable after the power module is powered on or after connecting the
power cable to the main power supply, and any wiring work must be carried out under the
condition of power off!
Step 2: Configuration in CODESYS

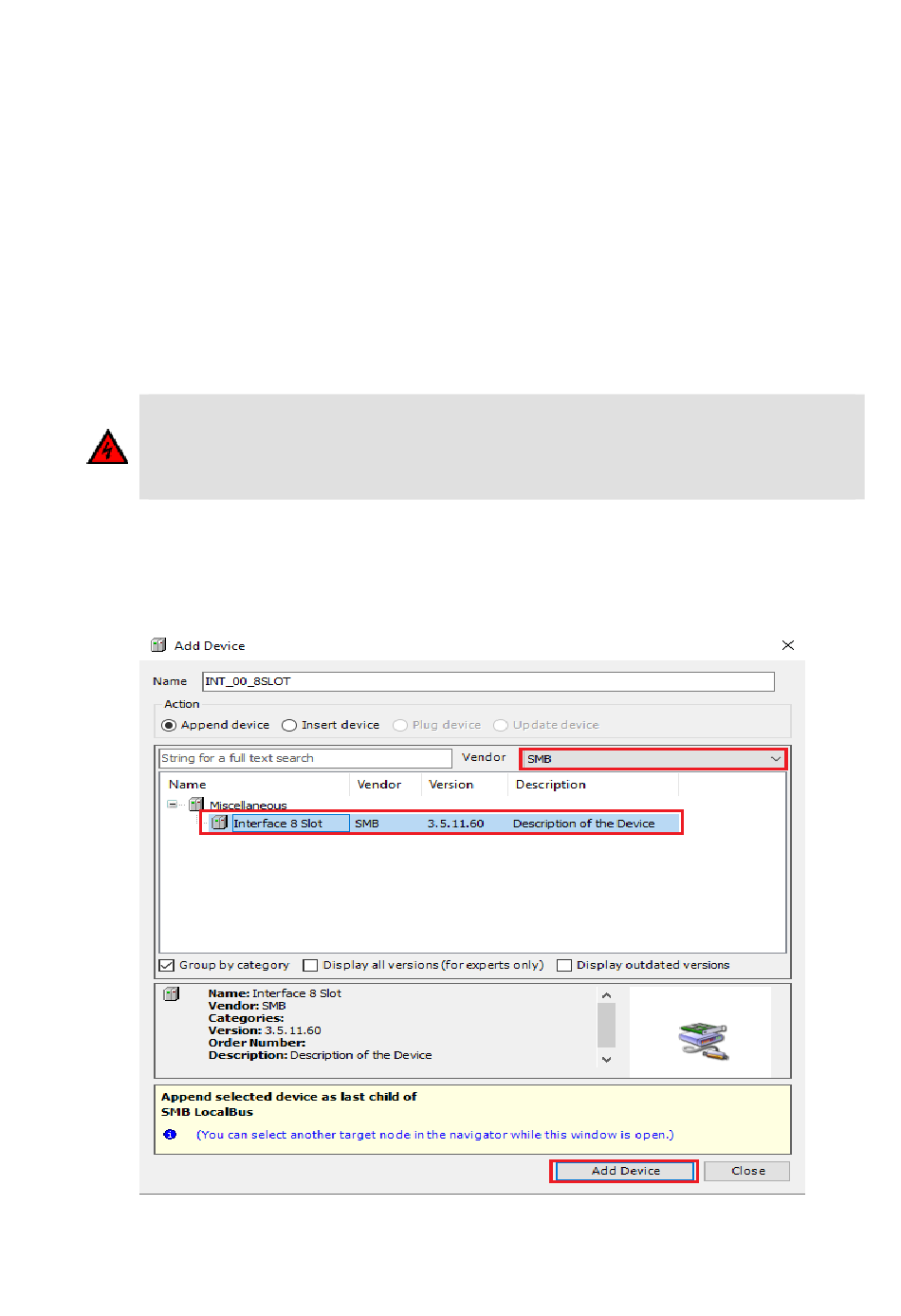

1) Select "SMB LocalBus" in the device view and right-click to select "Add Device", you can
select and add a relay module in the pop-up dialog box, refer to the following
diagram:
2) Referring to the above operations, right-click the relay module in the device view and select
"Add Device", then in the "Add Device Dialog Box" you can select to add extension modules
70
