SMB MAT-LC-C Series User Manual page 73

2）When LC-C06 serves as master of Modbus RTU and communicates with inverter, connect
RS485 port of LC-C06 to Modbus port of inverter with communication cable.
3）When LC-C06 serves as slave of Modbus RTU and communicates withSMB-MAT-HMI,
connect RS485 port of LC-C06 to Modbus port of SMB-MAT-HMI with communication cable.

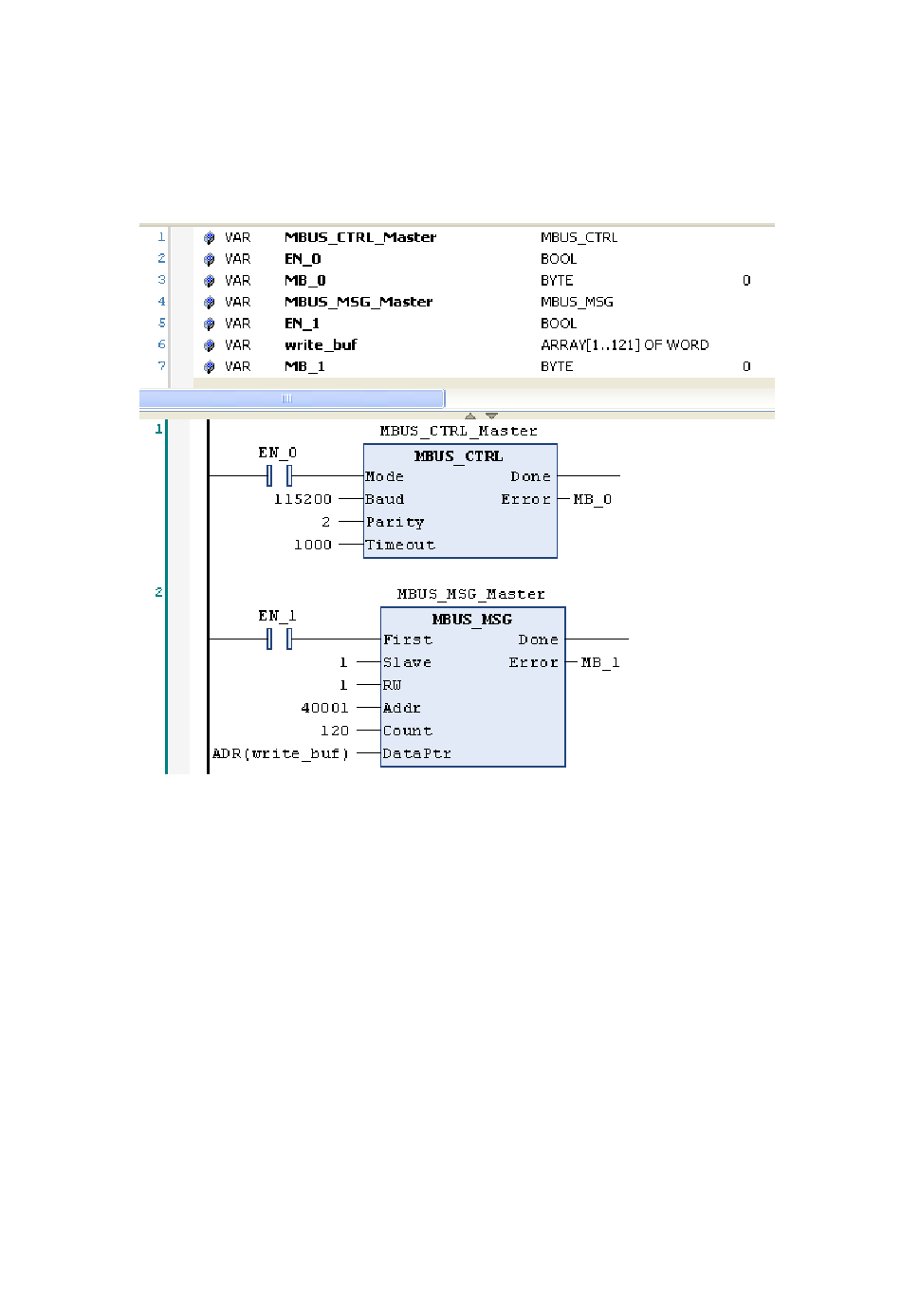

Step 3： When LC-C06 serves as master of Modbus RTU and communicates with inverter,
program LC-C06 as below：
Step 4： When LC-C06 serves as slave of Modbus RTU and communicates with
SMB-MAT-HMI, program the slave (LC-C06) as below：
73
