When replacing or installing a C06/C07 motion controller, be sure to use the correct or equivalent
module. When replacing the C06/C07 motion controller, in addition to using the same module,
make sure that the installation direction and position are correct.
NOTIFICATION
● If you install an incorrect module, the program of the C06/C07 motion controller may
produce incorrect functions.
● Failure to replace the C06/C07 motion controller with the same module in the same direction
and sequence may result in serious personal injury and equipment damage.
3.2

Installation Size

The C06/C07 motion controller has mounting holes, which can be easily installed on the
backplane. The installation dimensions are shown in Figure 3-2.
3.3

Use Rack

Central Rack the C06/C07 application system consists of a central unit and one or more
expansion modules.The rack containing the CPU is the central unit. Equipped with modules
A-Use of Expansion Racks
In your application, if all the slots of the central rack are used, then you can use the expansion
racks.
B-Module Layout on the Rack

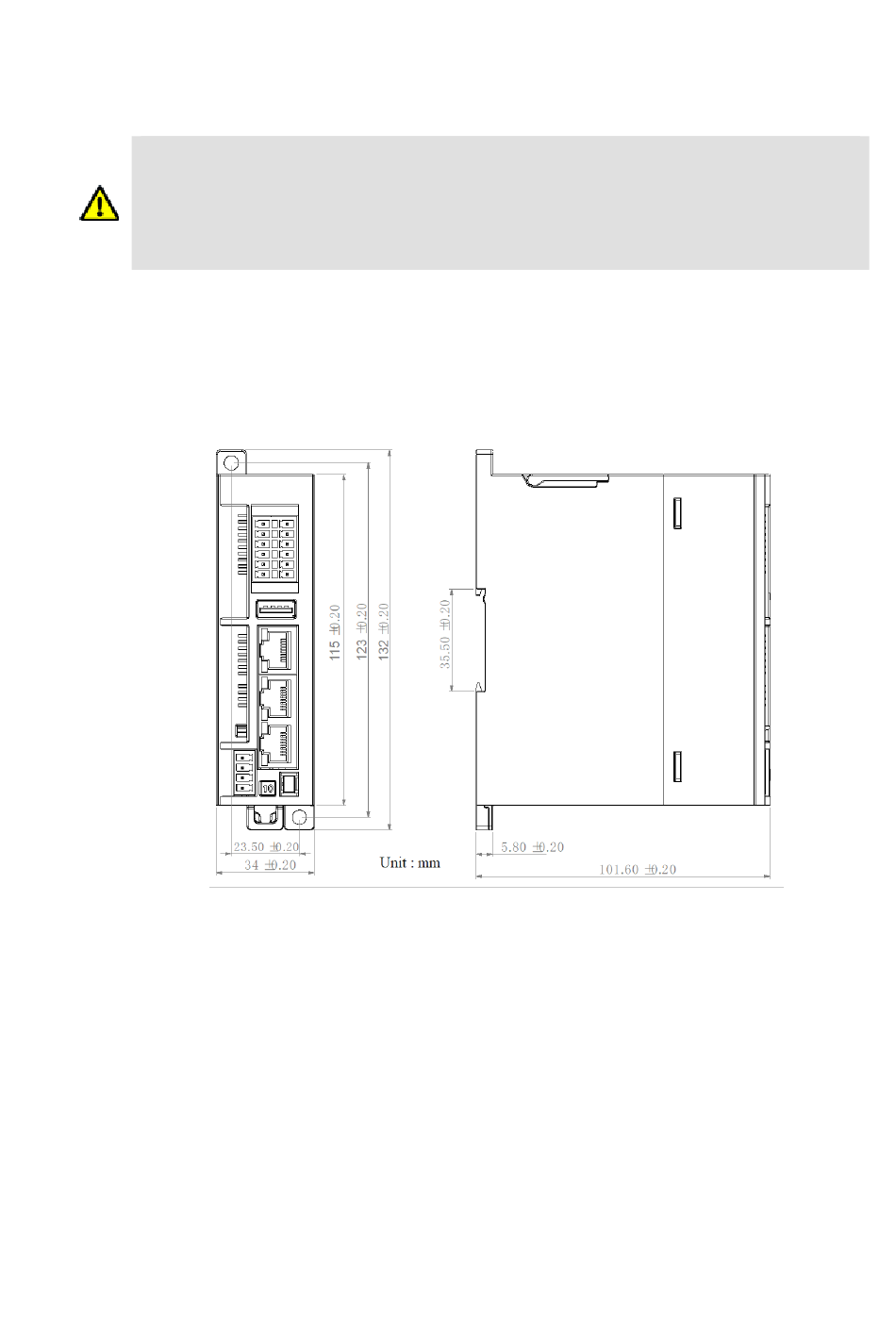

Figure 3-2 C06/C07 motion controller and installation dimension drawing
