H Install the device description file in CODESYS

H.1

Install EtherCAT servo slave device description file

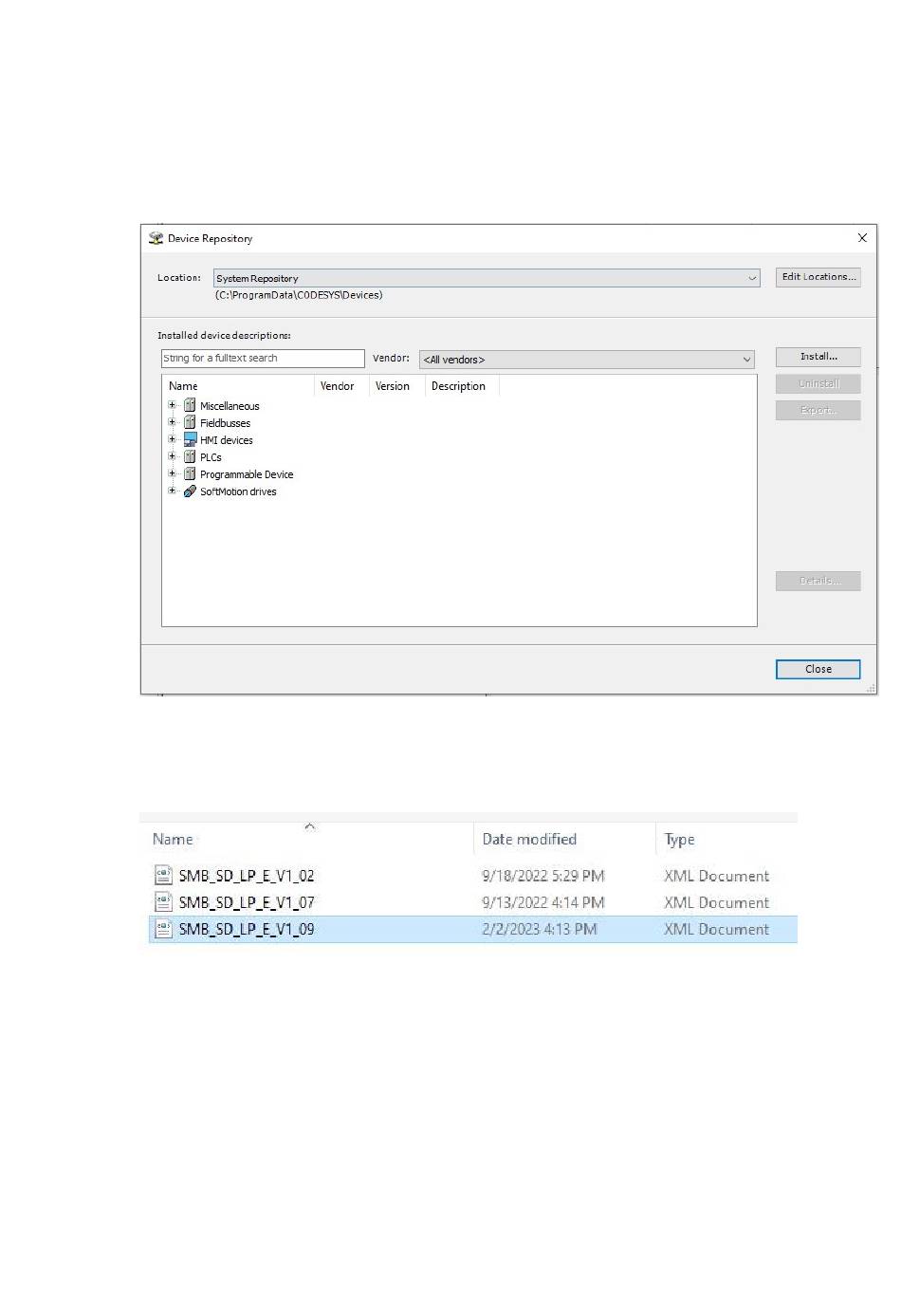

1. Open the CODESYS software, select the menu "Tools" → "Device Repository" to open the
following dialog box, and click "Install" in the dialog box.
2. After performing the above operations, a dialog box will pop up as follows. Please select the
file type "EtherCAT XML Device Description Configuration file (*.xml)", select the file
"SMB_SD_LP_E_V1_xx.xml".
H.2

Install PLC/402 axis device description file

1. Open the CODESYS software, select the menu item "Tools" → "Device Repository" to open
the following dialog box, and click "Install" in the dialog box.
