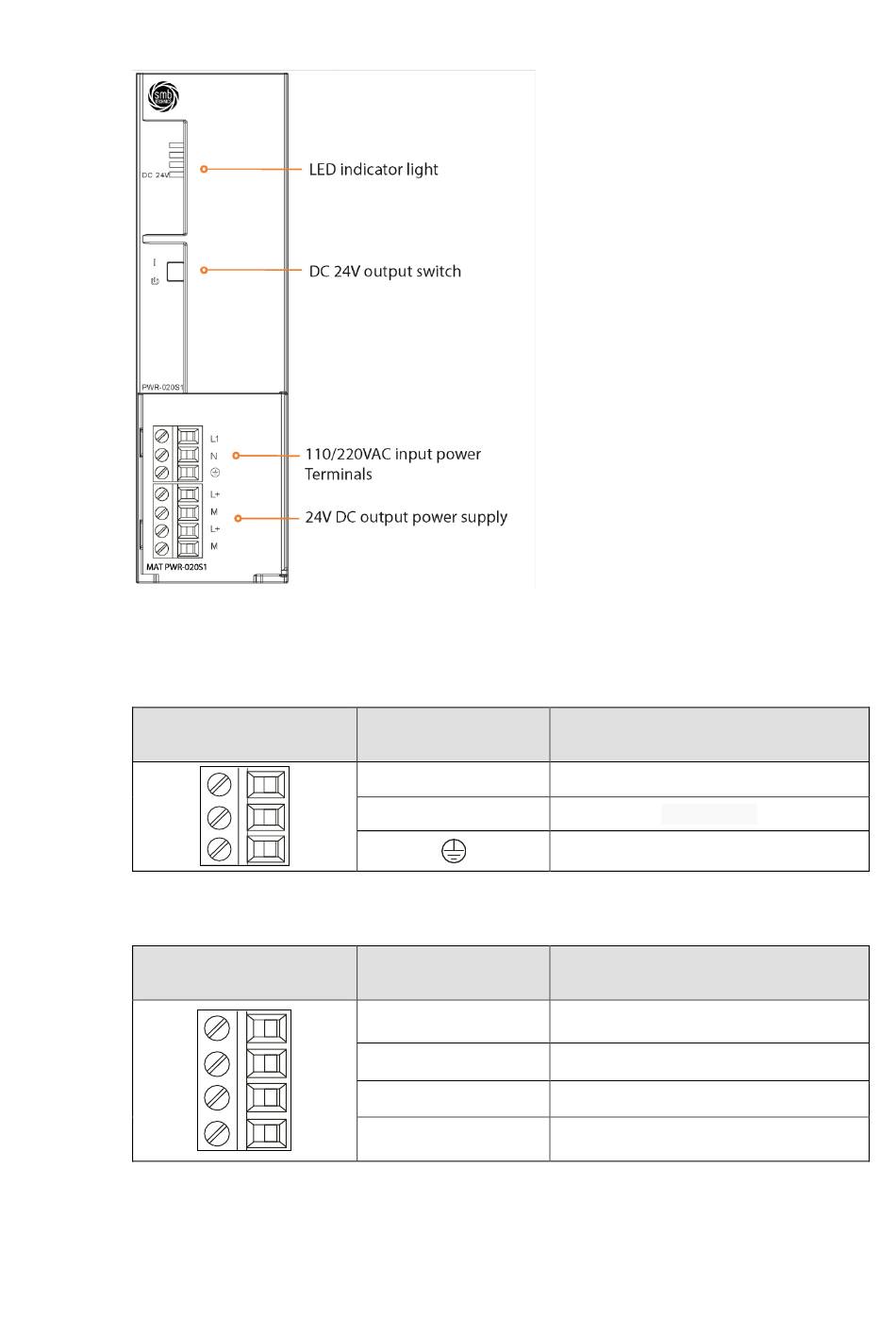

Interface diagram
Interface definition
Table C-4 220V AC input power interface definition of PWR-020S1
3-position removable
terminal
Table C-5 24V DC output power interface definition of PWR-020S1
4-position removable
terminal
1
2
3
4
Signal
L
N
Signal
L+
M
L+
M
114
Signal definiton
Live line
Neutral wire
Earth
Signal definition
24VPower supply (positive)
24VPower supply (negative)
24VPower supply (positive)
24VPower supply (negative)
