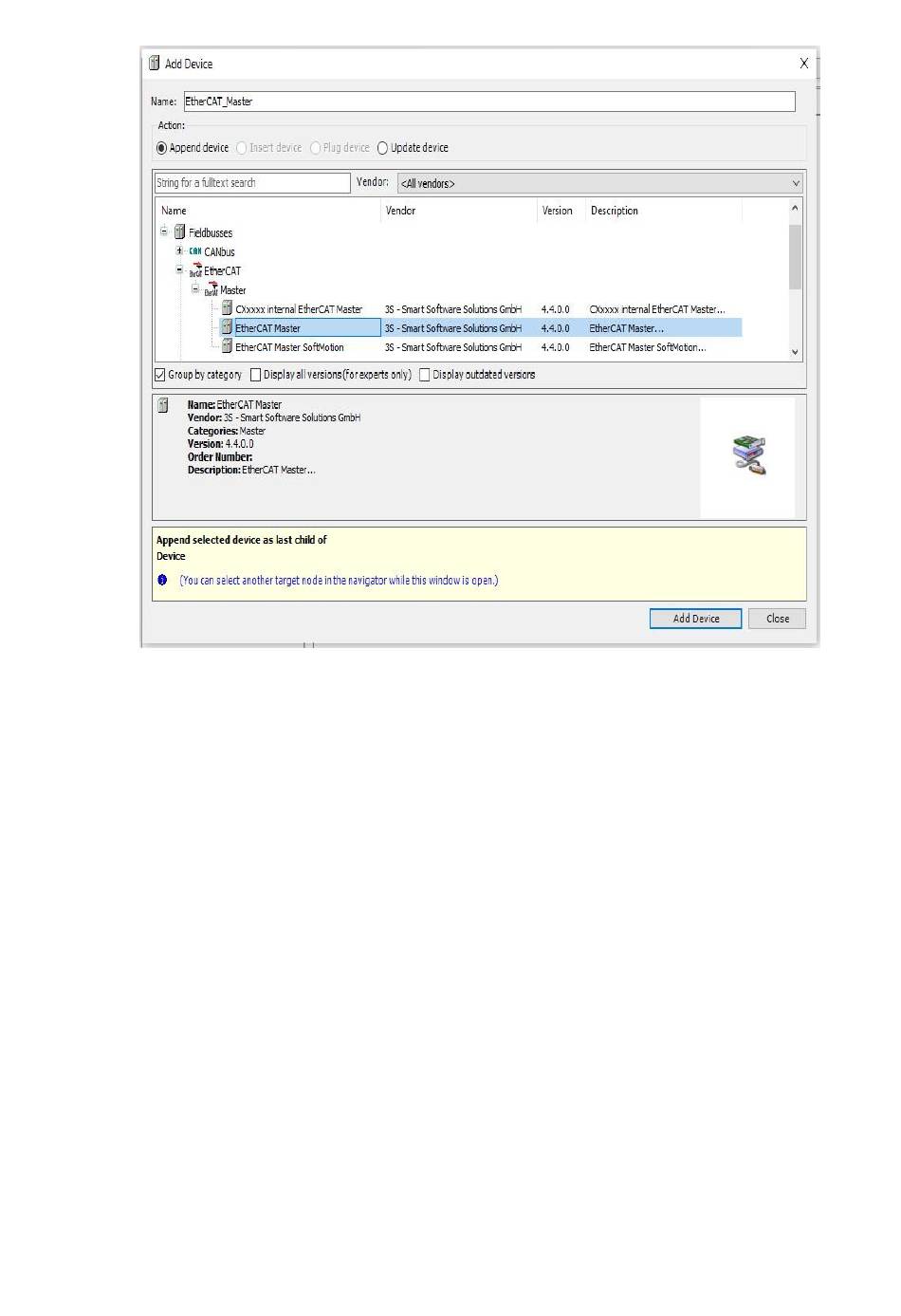

2）Add or Scan EtherCAT slave
Select the EtherCAT master station that has been successfully added in the device view,
right-click and choose "Add Device", then choose to add EtherCAT slave in the dialog box that
pops up: Supplier select "< All suppliers >", fieldbus select "Ethercat" → "slave station" →
"AKIMMETAL-SMB SERVO DRIVES" → " SMB_SD_LP_E_V1_XX "; Alternatively, right-click
on the EtherCAT master (LC-C06) and select "Scan Device" to display the EtherCAT slave
(SMB_SD_LP_X) connected to LC-C06 below the EtherCAT master (LC-C06).
