SMB MAT-LC-C Series User Manual page 122

Max protection voltage of
signal input
Input filter
Quadrature encoding
Counter format
Counter reset
Counter capture
Multi - counter
synchronous counting
INTsignal voltage
INT signal max input
frequency
INTsignal input filter
Optoelectronic isolation

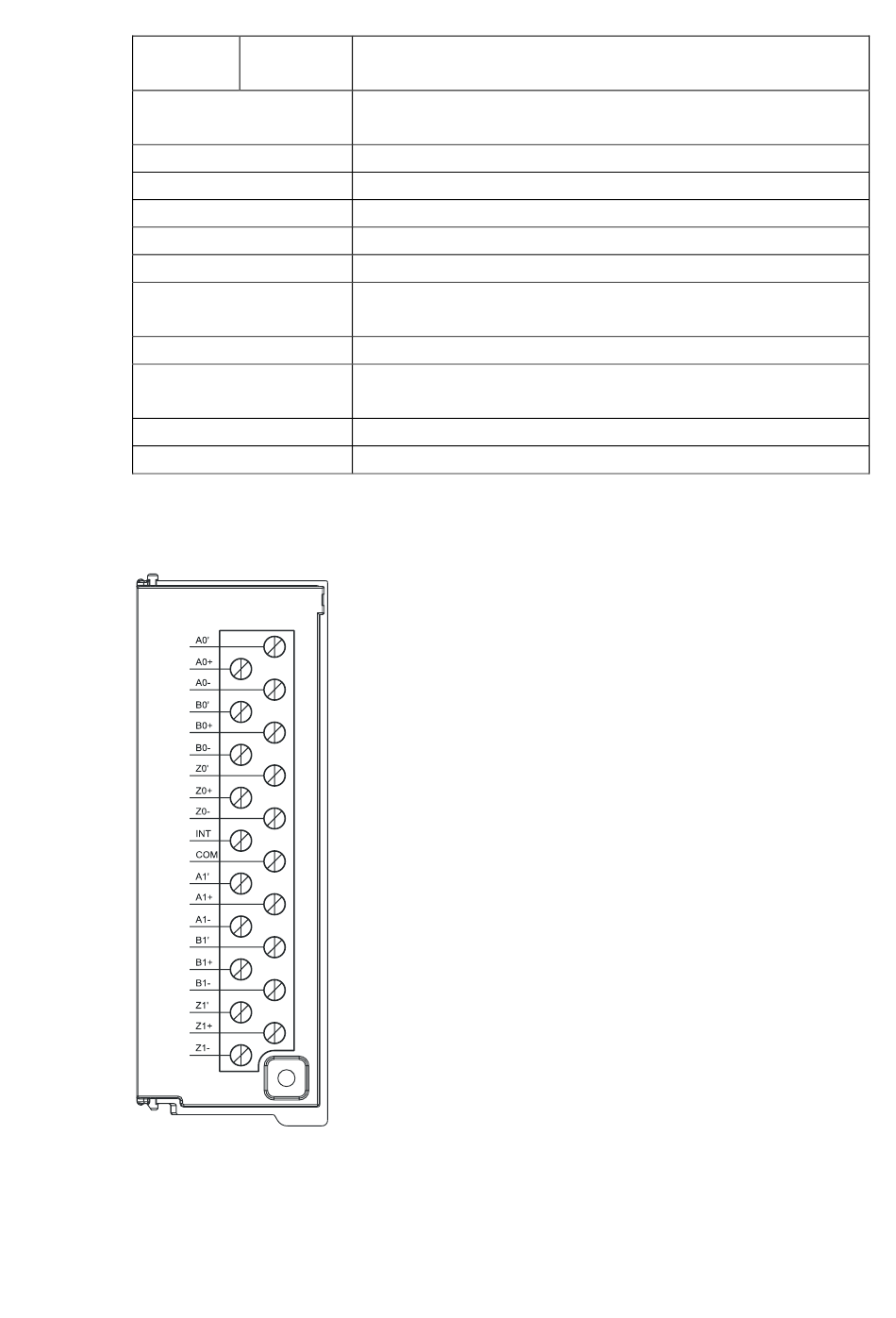

Wiring diagram
d input Max input frequency: 500KHz
Allowable range of signal duty cycle: 40%-60%
30VDC
Configrable，125KHz/250KHz/500KHz/1MHz/2MHz
1、2、4 frequency multiplication
32 Bit
Yes，Zsignal
Yes，Zsignal
Yes，INTsignal
24VDC
500KHz
Configrable，125KHz/250KHz/500KHz
500VAC，1min
