Wiring specification

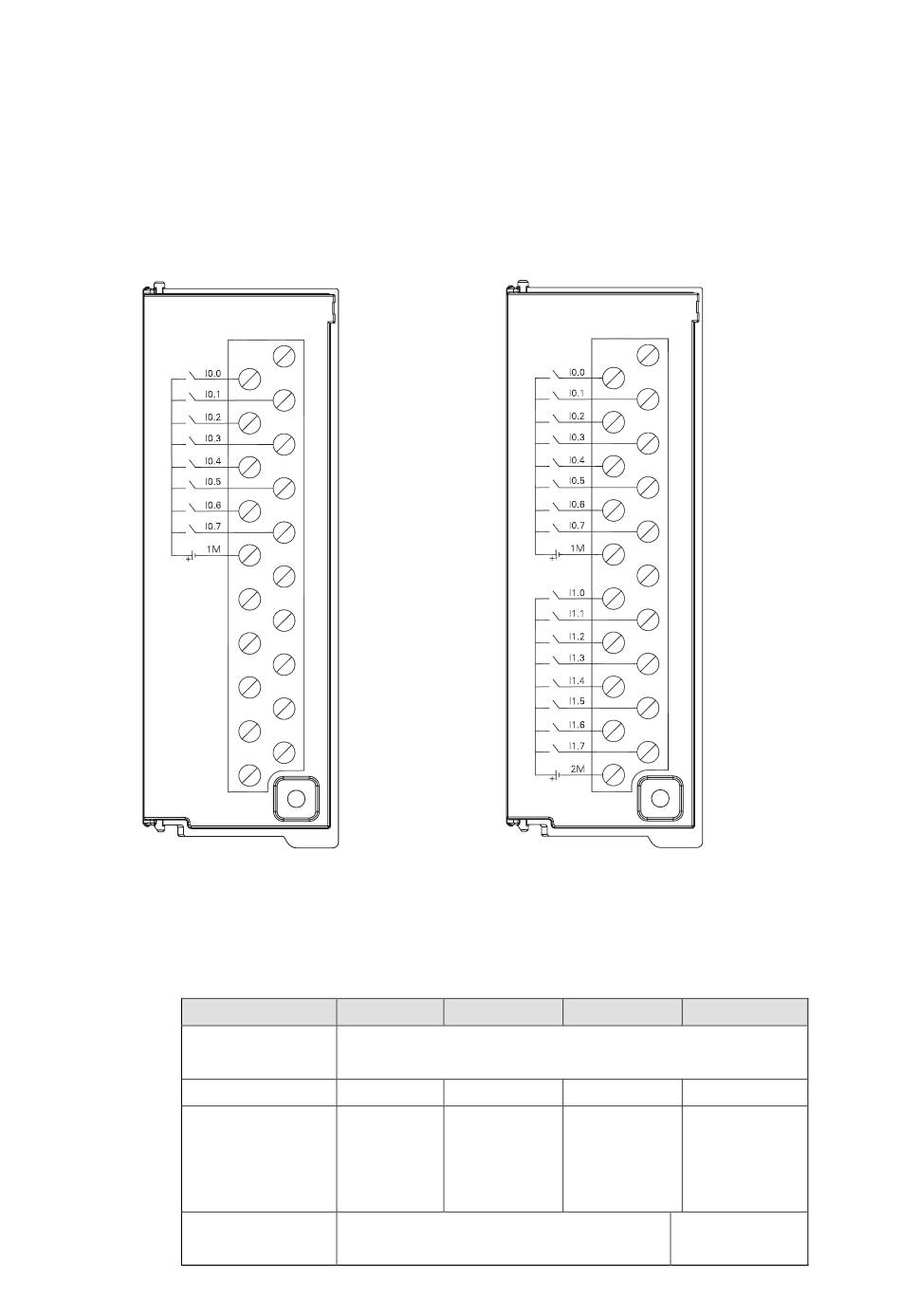

◆ DIT-08 Wiring diagram
Digital output module
Table C-9 Specification of digital output module
Item
Dimensions
（W×H×D
）
Output points
Current
consumption
24V DC
+5V bus
Output type
◆ DIT-16 Wiring diagram
DQT-08 DQT-16
34×115×100 mm
8 16
50mA 95mA
70mA 120mA
Solid -MOSFET, source type
116
DQR-08 DQR-16
8 16
64mA 130mA
45mA 60mA
Relay-dry
contact
