The rack of the C06/C07 is a mounting rail. You can use this guide rail to install the modules to
which the C06/C07 application system belongs.
If you are installing modules in a rack, note the following:
1-The number of modules installed on the right side of the CPU does not exceed eight (SM, FM,
CP).
2-The cumulative power consumption of the modules on the rack on the C06/C07 backplane bus
must not exceed 1,6A.

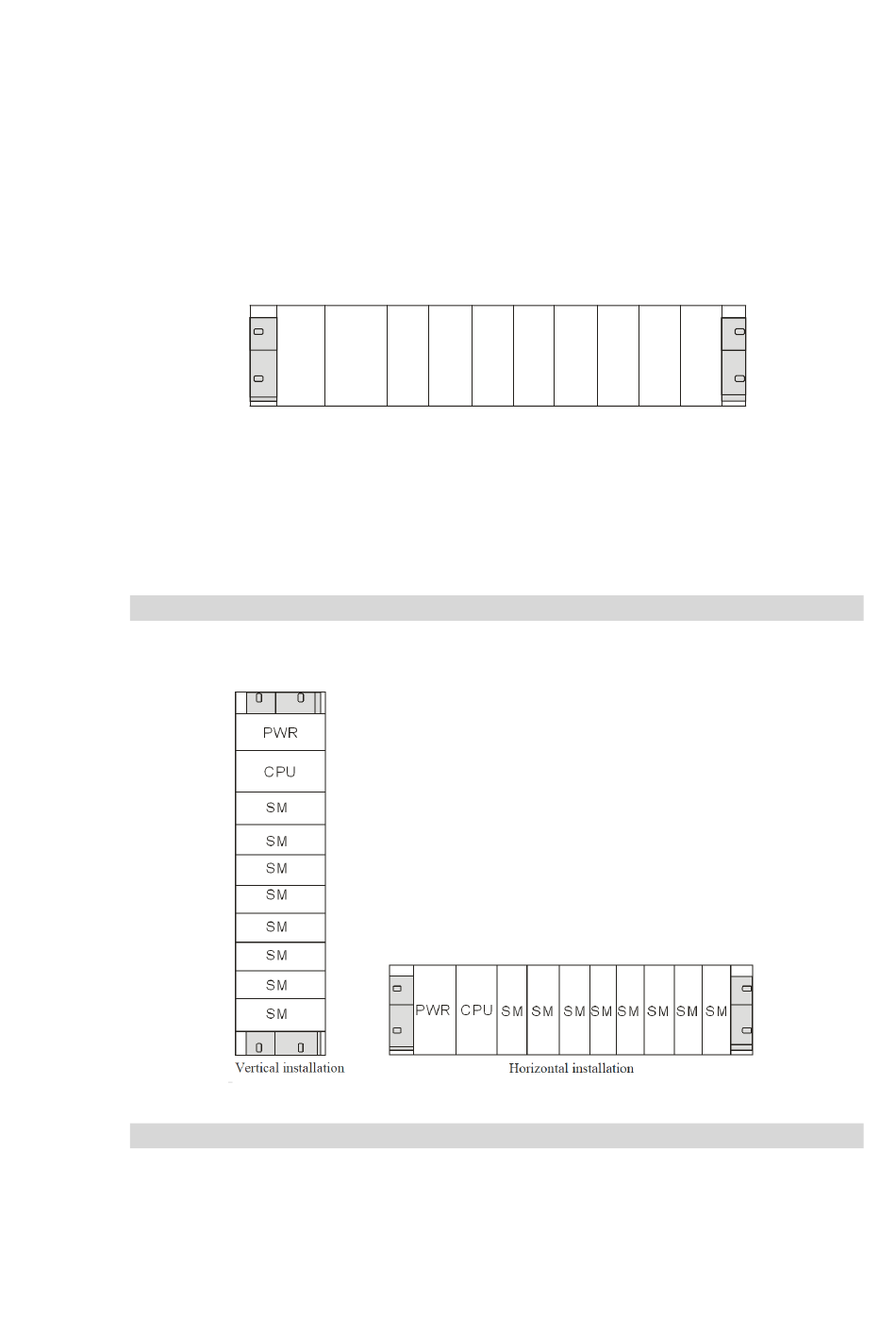

The figure below shows the layout for assembling eight signal modules in a C06/C07 system.
PWR CPU SM1 SM2 SM3 SM4 SM5 SM6 SM7 SM8
Figure 3-3 C06/C07 application system layout
3.4

Installation Method

Installation method
The C06/C07 motion controller can be installed on the back panel of the control cabinet or on the
standard DIN rail; it can be installed horizontally or vertically.
Figure 3-5 CPU and module installation method
Installation and removal operations
Follow the steps below to install or remove the C06/C07 motion controller.

Installation panel
1) Position and punch holes according to size requirements;
