2 Getting started

Based on a specific example, this chapter introduces how to create a simple project including a
PLC program, download the program to the target device LC-C06 motion controller), run and
monitor the program.
The sample program is written in LD language and includes a program: PLC_PRG. PLC_PRG
contains two timers, in which timer 1 starts timing when the program starts, and is set after 5
seconds; timer 2 starts timing after timer 1 is set, and timer 2 starts to reset after 5 seconds;
Timer 1 and Timer 2 repeat set and reset operations in 5 second intervals.
2.1

Connect the Main Control Module

Connect the programming device and the PLC with a communication cable (such as a standard
network cable), and then supply power to the PLC.
❑ Power supply to PLC

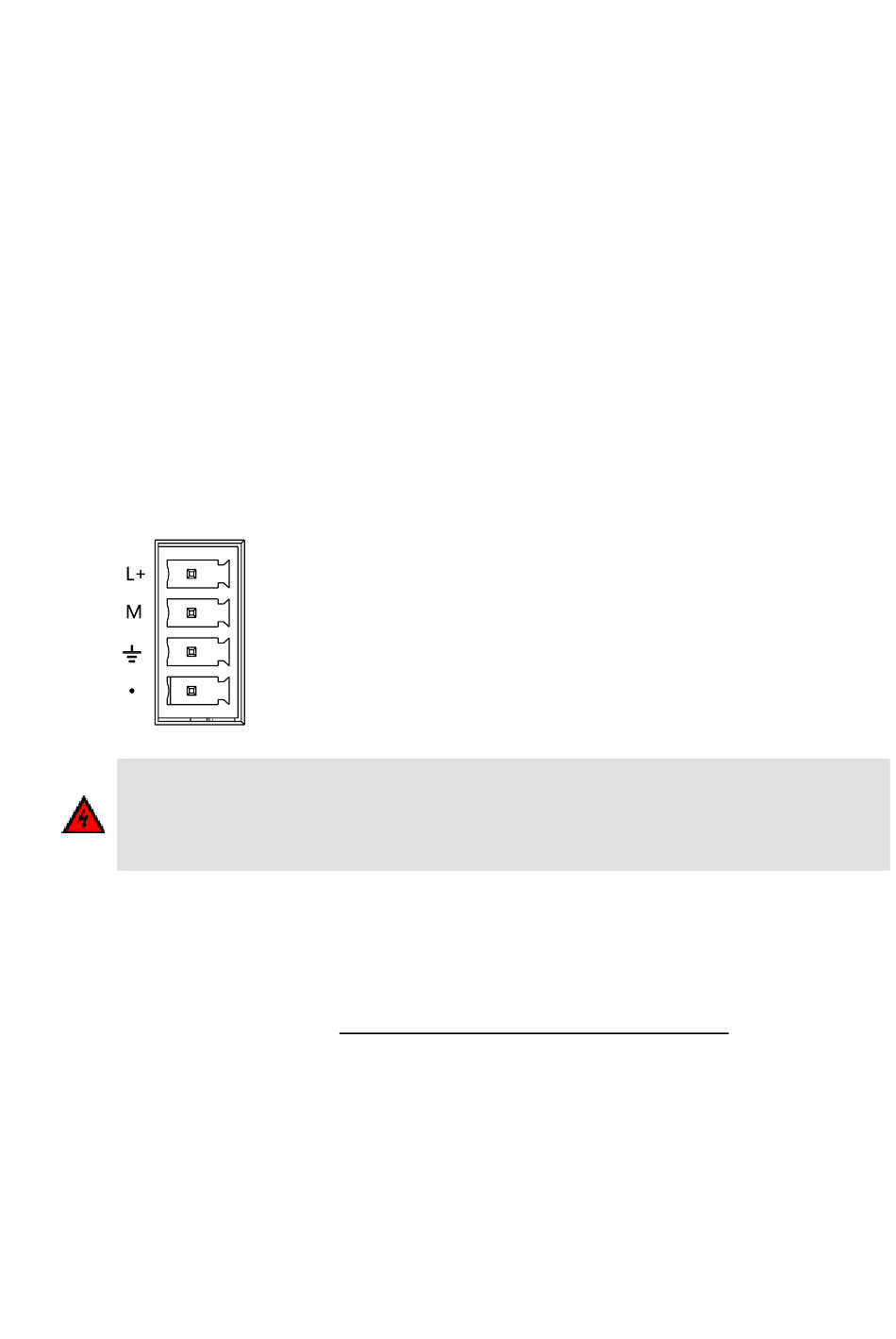

The following figure is a schematic diagram of the power supply terminals of the PLC:
WARN
Before installing or removing the LC-C06 motion controller, you must
observe the corresponding safety protection regulations, and be sure to
disconnect the power supply.
❑ Connecting cable
Use a standard network cable to connect the programming device PG/PC and the EtherNET
communication port of the LC-C06, or use a programming cable to connect the programming
device to the RS485 communication port of the LC-C06.
<Remark> Please refer to Section 5.3.3 Making Standard Network Cables to make standard
network cables.
