3) Add EtherCAT master
In overview of opened project, right click "Device (MAT-LC-C06_V1.0)", select "add device" to
add EtherCAT master in dialog box: select supplier as <all suppliers>, field bus as
"EtherCAT"→"master"→"EtherCAT Master".

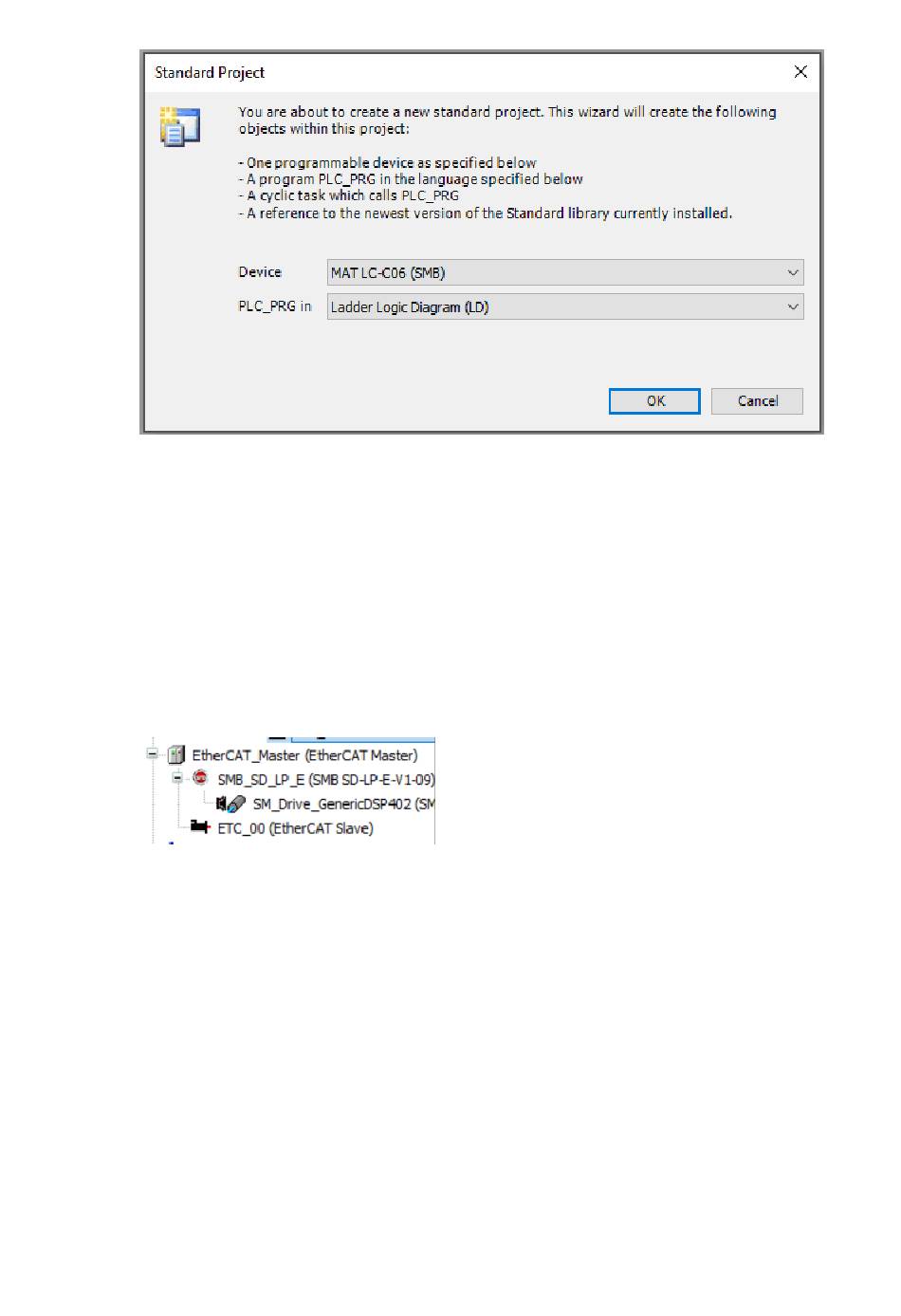

4) Add EtherCAT slave
In device view, select EtherCAT master, right click and choose "add device" to add EtherCAT
slave in pop up dialog: select supplier as <all suppliers>, field bus as "EtherCAT"→"slave"
→"ETC-00". Then the EtherCAT slave (ETC-00), which is connected to LC-C06, will be displayed
under EtherCAT master (LC-C06).
5) EtherCAT master configuration
Double click "EtherCAT-Master" and set source address (MAC) in "Overview" tab: click "browse"
button on right side of "source address" (MAC) and select corresponding MAC address in pop up
dialog.
