2. Network connection

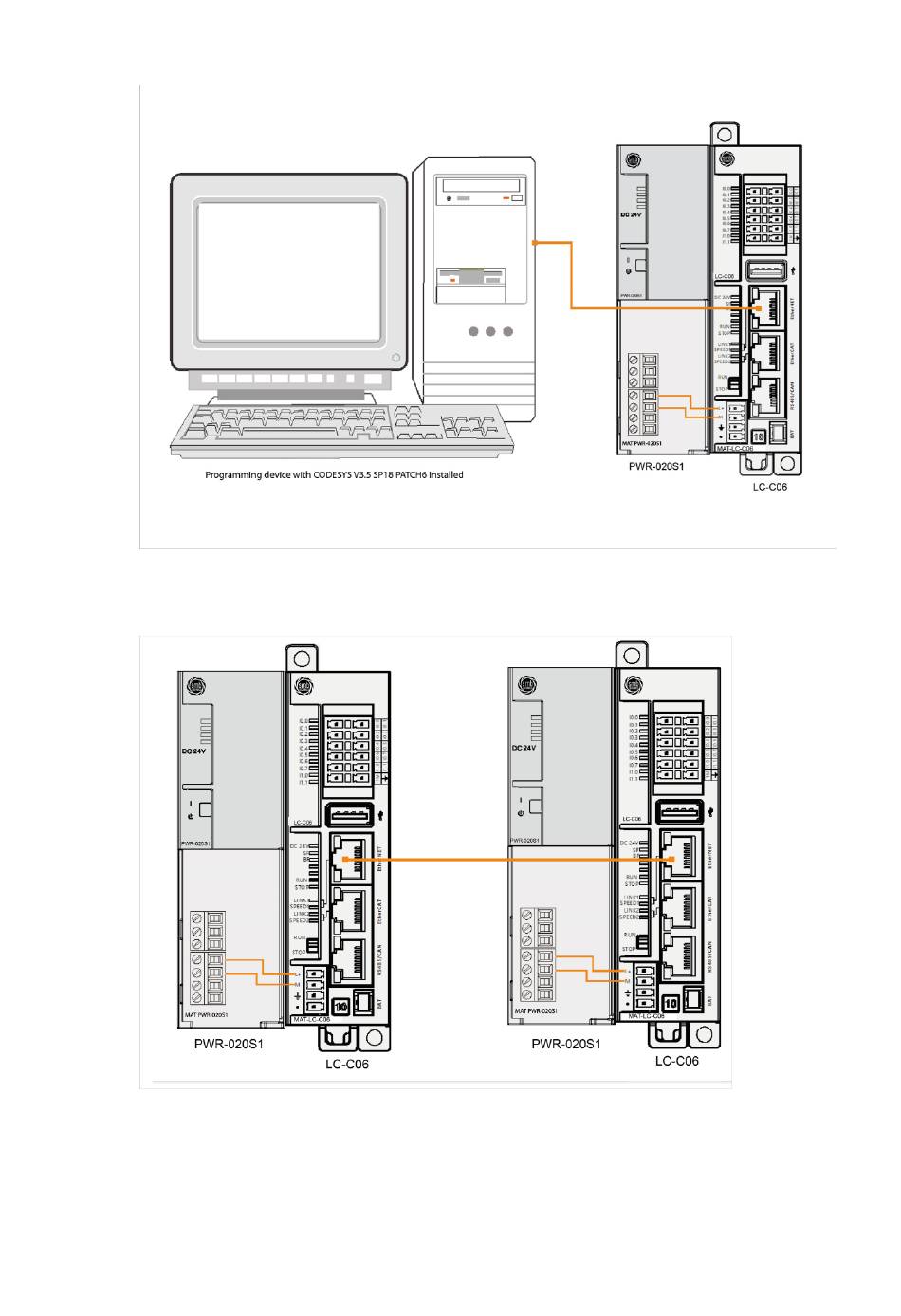

Connect two LC-C06, which serve as master and slave of Modbus TCP, with standard network
cable and then start Modbus TCP communication：
3. Operating steps
Step 1： Wiring between LC-C06 and power module
Open front panels of LC-C06 and power module PWR
diagram.
-
020S1, wiring according to above network conneciton
