SMB MAT-LC-C Series User Manual page 14



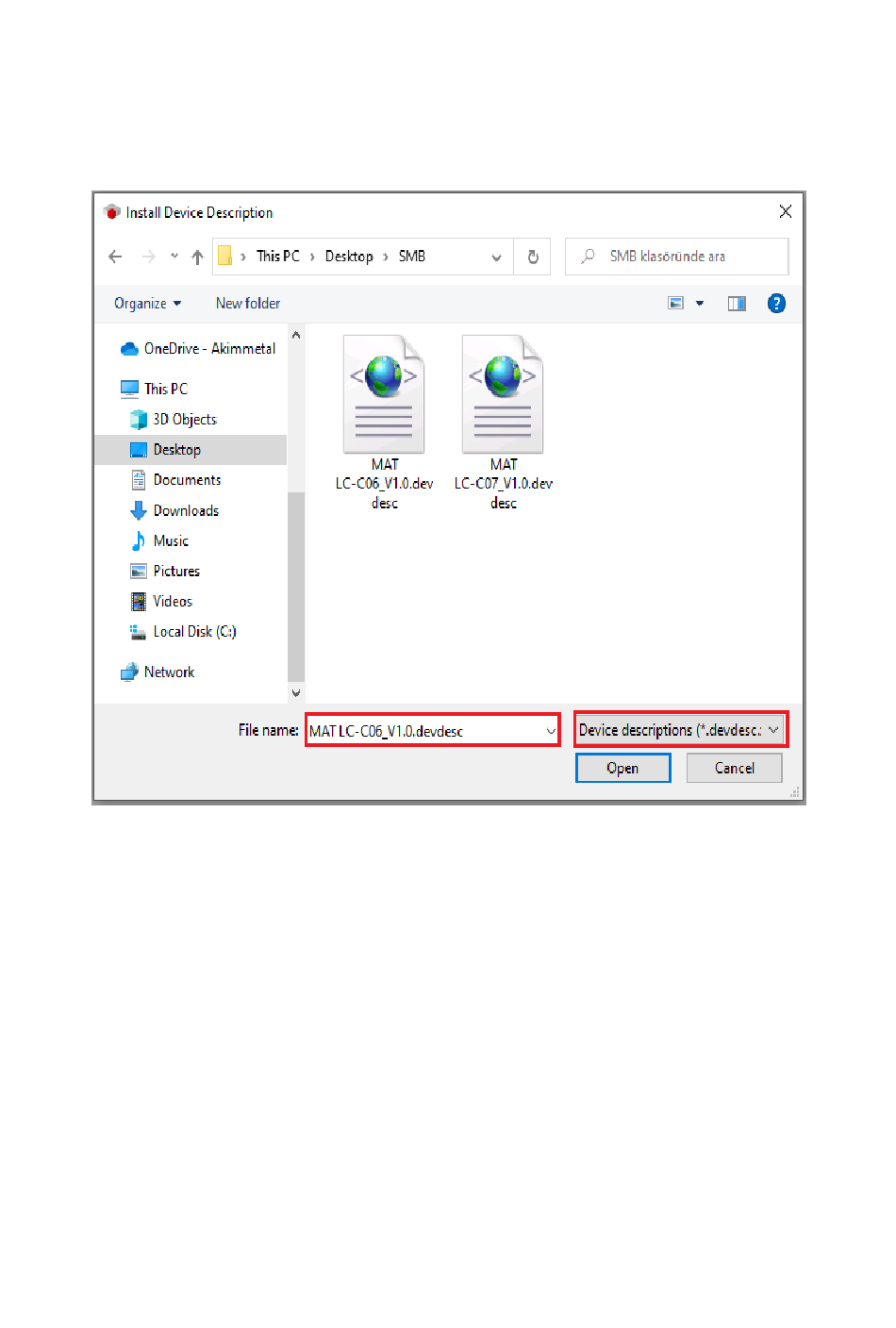

In the opened dialog box, first select the file format, the format is "device description file
(*.devdesc.xml)" and then select the desired MAT LC-C06_V1.0.devdesc.xml, click the "Open"
button to confirm the options, the new The device is added to the device catalog in the Device
Repository. The profiles provided by SMB can be selected by setting the corresponding filters.
After the above operations are completed, you can refer to the following steps to enter the device
directory to check whether the files are installed correctly:
Select the menu item "Tools" → "Device Repository" to open the Device Repository dialog box,
as shown below:
