PKA Compare Result
The register provides the result of a basic PKCP Compare operation. It is updated when the
PKA_COMPARE
PKA_FUNC.RUN bit is reset at the end of that operation. The status after a complex sequencer operation is un-
known.
AGTB (R)
Vector A is Greater Than Vector B
ALTB (R)
Vector A is Less Than Vector B

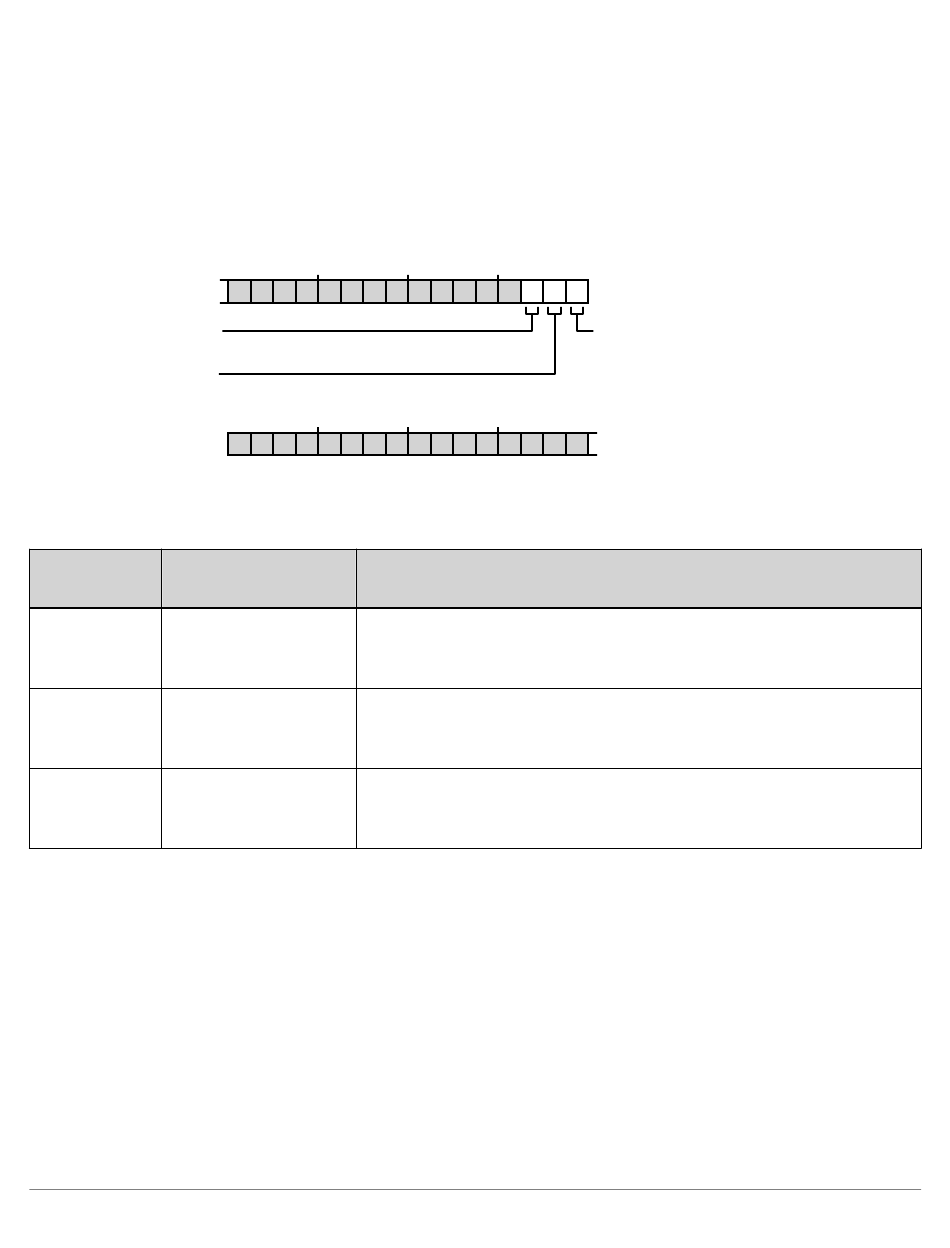

Figure 45-6: PKA_COMPARE Register Diagram
Table 45-28: PKA_COMPARE Register Fields
Bit No.
(Access)
2 AGTB
(R/NW)
1 ALTB
(R/NW)
0 AEQB
(R/NW)
ADSP-SC58x/ADSP-2158x SHARC+ Processor Hardware Reference
15 14 13 12 11 10 9 8
0 0 0 0 0 0 0 0
31 30 29 28 27 26 25 24
0 0 0 0 0 0 0 0
Bit Name
Vector A is Greater Than Vector B.
The PKA_COMPARE.AGTB bit shows the result of the basic compare operation is
PKCP Vector_A is greater than Vector_B.
Vector A is Less Than Vector B.
The PKA_COMPARE.ALTB bit shows the result of the basic compare operation is
Vector_A is less than Vector_B.
Vector A is equal to Vector B.
The PKA_COMPARE.AEQB bit shows the result of the basic compare operation is
Vector_A is equal to Vector_B.
7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 1
23 22 21 20 19 18 17 16
0 0 0 0 0 0 0 0
Description/Enumeration
ADSP-SC58x PKA Register Descriptions
AEQB (R)
Vector A is equal to Vector B
45–25
