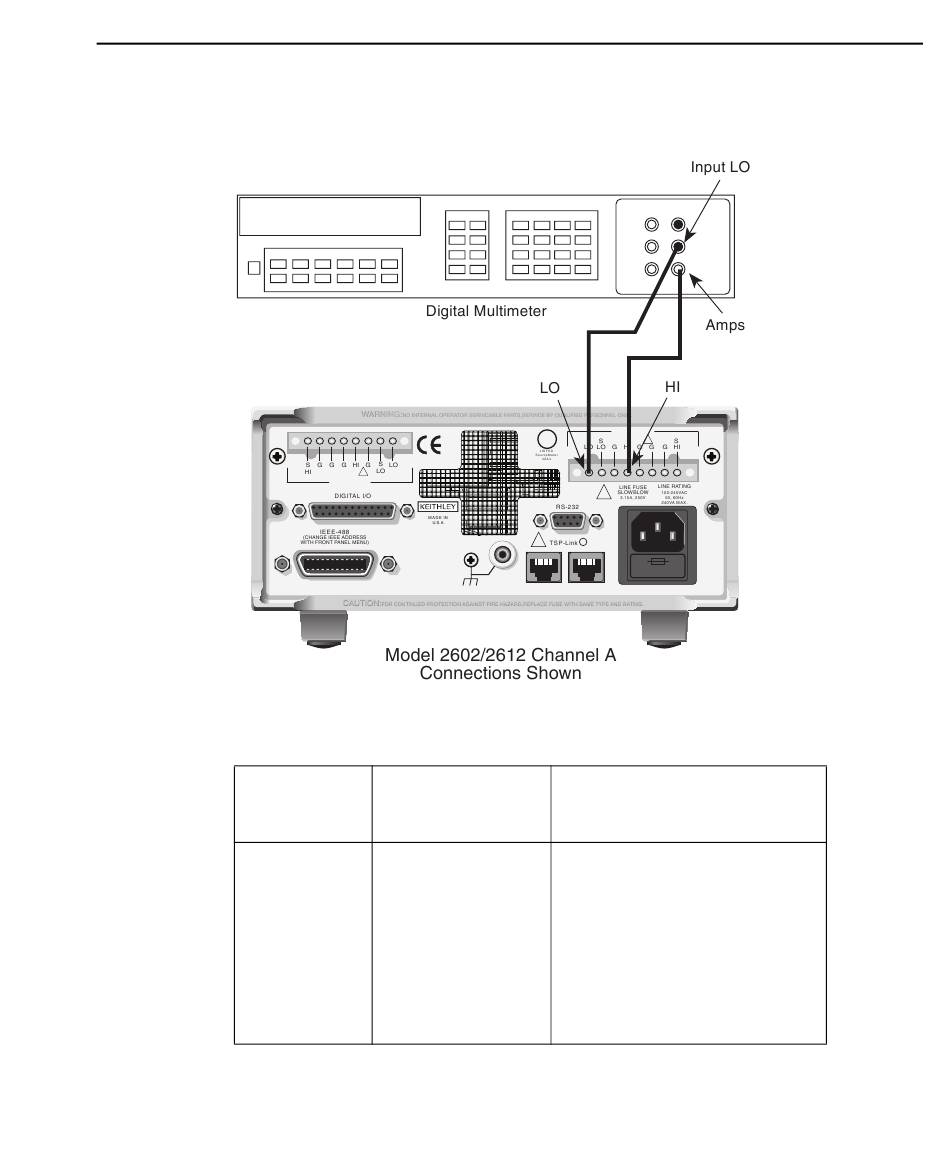

Figure 15-2
Current verification connections
Table 15-6
Model 2601/2602 output current accuracy limits
Model
2601/2602
source range
CAT I !
CHANNEL B
Model 2601/2602
output
current setting
100nA 90.000nA
1µA 0.90000µA
10µA 9.0000µA
100µA 90.000µA
1mA 0.90000mA
10mA 9.0000mA
100mA 90.000mA
1A 0.90000A
3A 2.40000A
Return to
(100nA to 1A ranges)
CHANNEL A
U L
!
CAT I
C
US
!
!
R
Output current limits
(1 year, 18°C–28°C)
89.846 to 90.154nA
0.89913 to 0.90087µA
8.9953 to 9.0047µA
89.943 to 90.057µA
0.89953 to 0.90047mA
8.9943 to 9.0057mA
89.953 to 90.047mA
0.89865 to 0.90135A
2.39706 to 2.40294A
