14-6 Display Operations

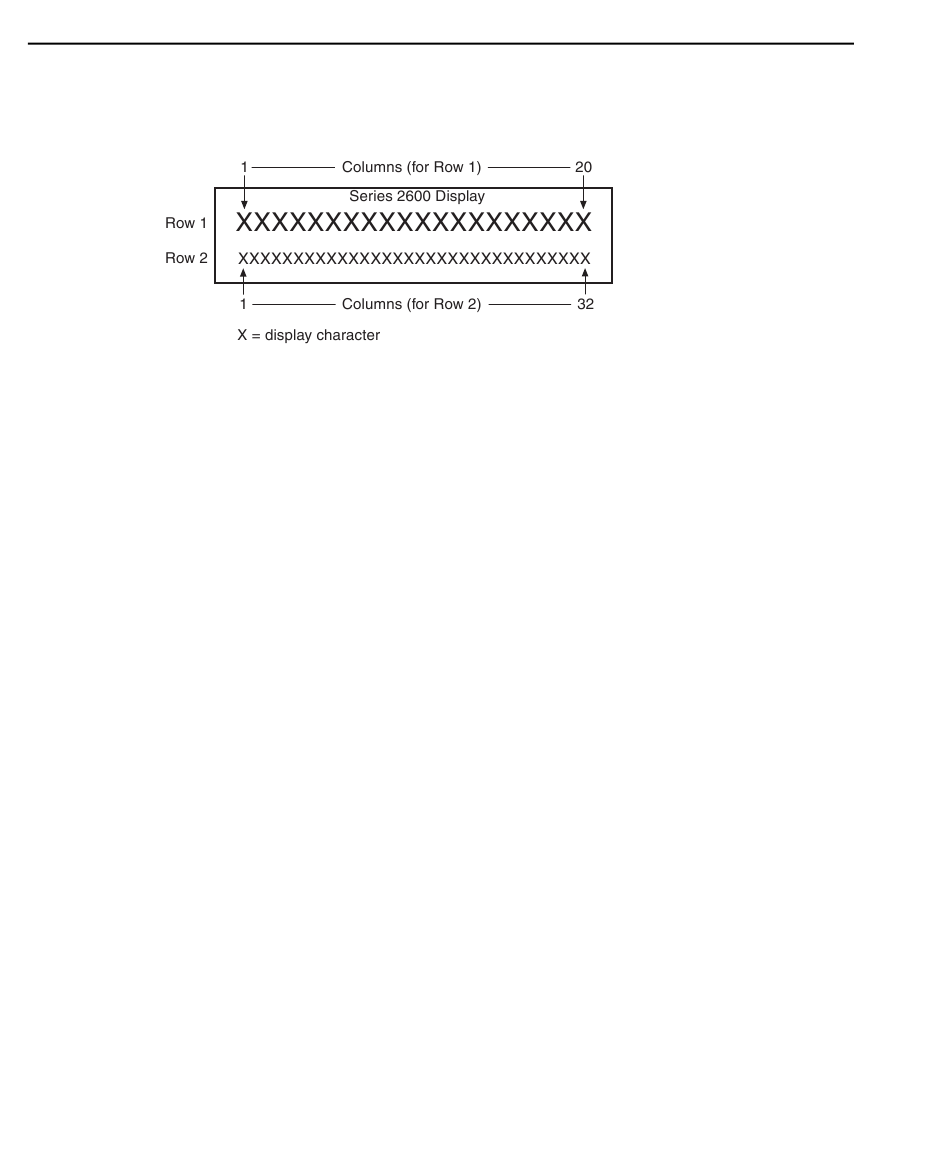

Figure 14-1
Row/column format for display messaging
The function to set cursor position can be used two ways:
display.setcursor(row, column)
display.setcursor(row, column, style)
where:
When set to 0, the cursor will not be seen. When set to 1, a display character will
blink to indicate its position.
The
display.getcursor
used three ways:
row, column, style = display.getcursor()
row, column = display.getcursor()
row = display.getcursor()
Example: The following code positions the cursor on Row 2, Column 1, and then
reads the cursor position:
display.setcursor(2, 1)
row, column = display.getcursor()
print (row, column)
Output: 2.000000e+00 1.000000e+00
Displaying text messages
The
display.settext
message will start at the present cursor position.
display.settext(text)
where:
2600S-901-01 Rev. A / May 2006
Series 2600 System SourceMeters Reference Manual
row = 1 or 2
column = 1 to 20
= 1 to 32
(invisible)
style = 0
(blink)
= 1
function returns the present cursor position, and can be
function is used to define and display a message. The
is the text string to be displayed.
text
Return to
(Row 1)
(Row 2)
