Series 2600 System SourceMeters Reference Manual

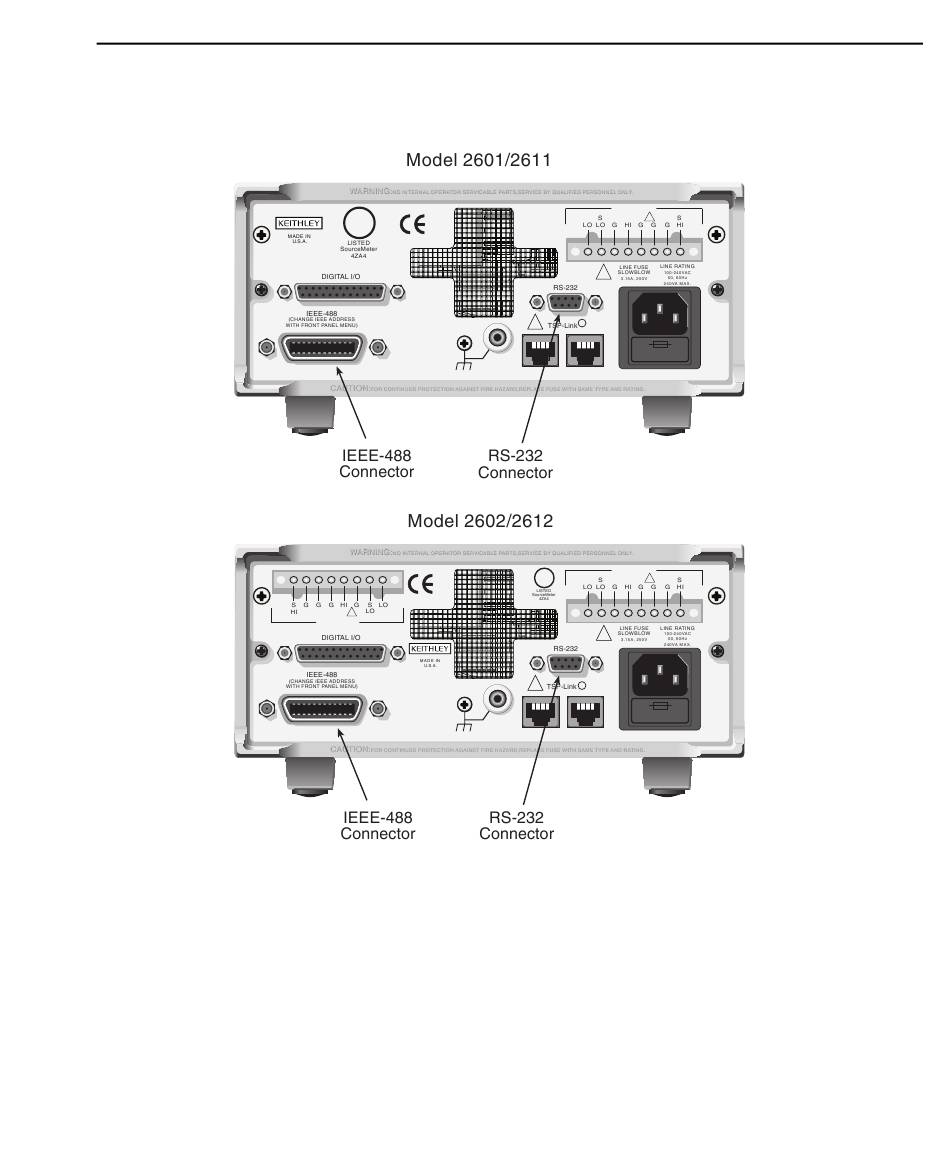

Figure 11-3
IEEE-488 and RS-232 connector location
Primary address
The SourceMeter ships from the factory with a GPIB primary address of 26. If the
GPIB or AUTO interface selection is used, it momentarily displays the primary
address on power-up. You can set the address to a value from 0 to 30, but do not
assign the same address to another device or to a controller that is on the same
GPIB bus (controller addresses are usually 0 or 21).
