Post Case Tab; Pump Tab; Servo Subtab - Terumo Advanced Perfusion System 1 Operator's Manual

Central Control Monitor

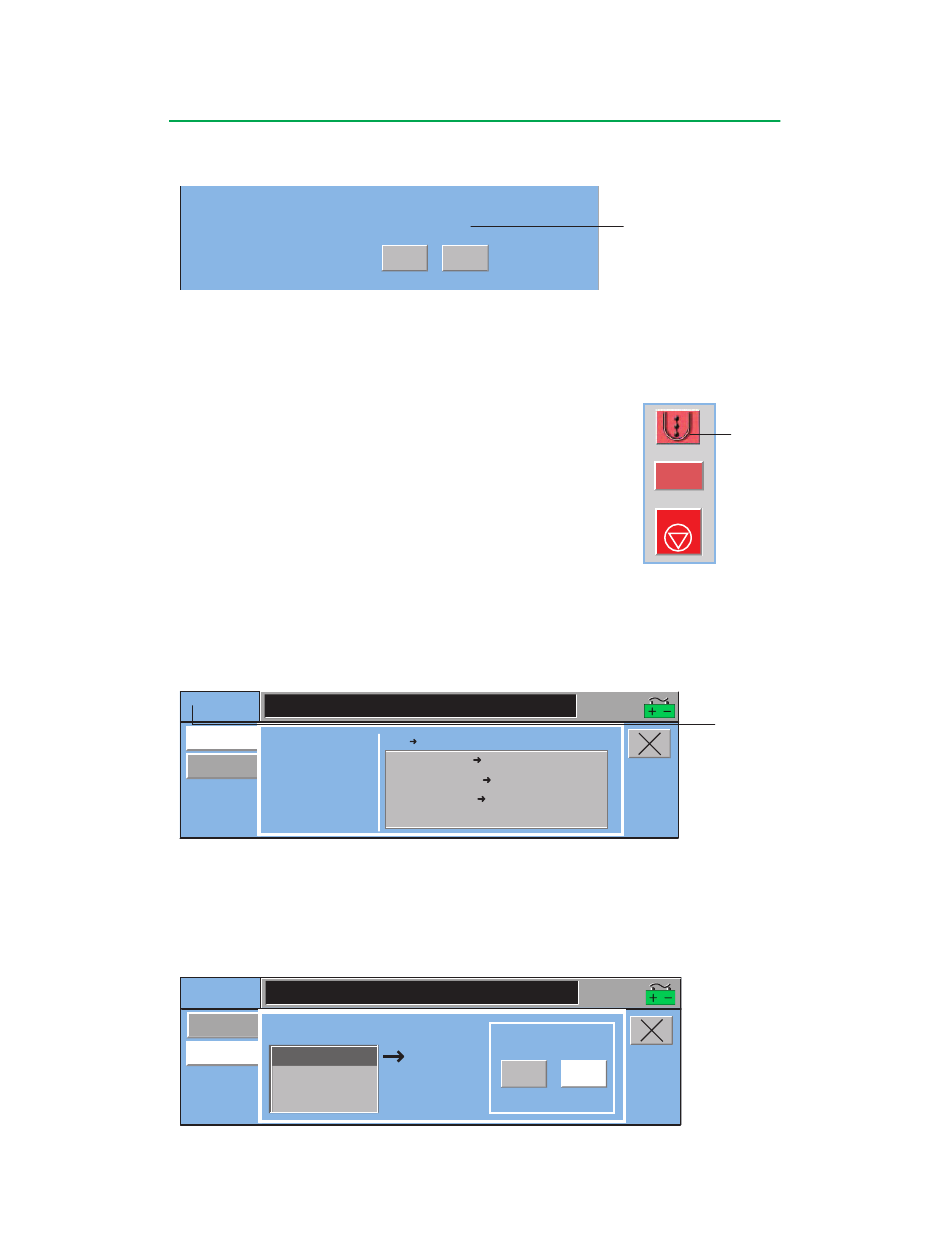

Post Case Tab

This tab allows the user to end the case.
End this case now?
All pumps will stop.
Gas flow will be turned off.
To end the case:
Touch the Yes button.
Touch the No button to continue the current case.

Pump Tab

The Pump tab is accessed through the pump icon and is
used to view a summary of pump parameters or initiate Servo
mode and Pulse mode if applicable. For a primary pump, the
Pump tab has three subtabs: Summary, Servo, and Pulse. A
master or follower pump has three subtabs: Summary, Servo,
and Master Status or Follower Status. For all other pumps,
the Pump tab has two subtabs: Summary and Servo.
Touch the pump icon to access the Pump tab.
• The pump control box will highlight with a blue perimeter.
Summary Subtab
The Summary subtab displays the pump name, the current RPM, direction of flow,
flow in L/min, and the tube size for roller pumps or the minimum flow alarm value for
centrifugal pumps. The configured safety connections are also displayed.
CPG
Summary
RPM: 0 RPM
Direction: Forward
Servo
Flow: 0.000 L/min
Tube Size: 4:1

Servo Subtab

In Servo mode, the pump speed is automatically regulated to maintain a specific
user selected pressure or flow. During Configuration, a pressure or flow module is
designated as a servo data source. If the servo control source designation is not
enabled, a pump cannot be placed in Servo mode. See Edit Safety Connections
section in this chapter for details on setting the servo source.
CPG
Select Servo Source:
Summary
Servo
CPG Pres
The Auto button enables Servo mode. The Manual button in the Servo subtab or
on the pump local control panel disables Servo mode. See the Roller Pumps and
Centrifugal Control Unit chapters for details of servo operation.
Yes No
Event Pump Response:
Arterial Pump Stop Stop
CPG Pres Pres Alarm Stop: 360 mmHg
CPG Pres Pres Alert Message Only: 300 mmHg
Setpoint:
Servo Control:
0 mmHg
Auto Auto
4-35
Only displayed if a gas blender
is installed
Pump icon
CPG
0.250
L/min
STOP
16:07:51
CPG indicates the
name of the pump
16:07:51
Manual
