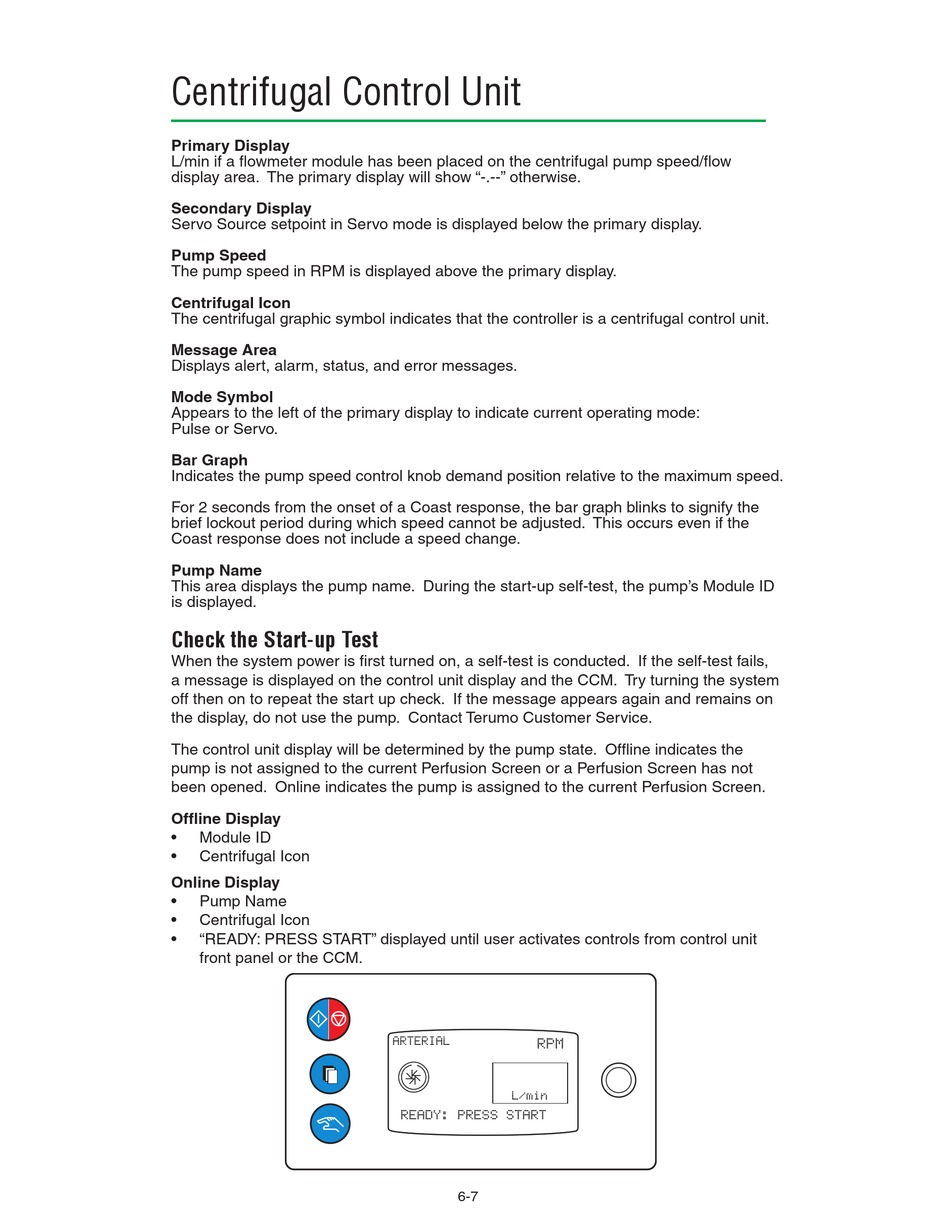

Centrifugal Control Unit
Primary Display
L/min if a flowmeter module has been placed on the centrifugal pump speed/flow
display area. The primary display will show "-.--" otherwise.
Secondary Display
Servo Source setpoint in Servo mode is displayed below the primary display.
Pump Speed
The pump speed in RPM is displayed above the primary display.
Centrifugal Icon
The centrifugal graphic symbol indicates that the controller is a centrifugal control unit.
Message Area
Displays alert, alarm, status, and error messages.
Mode Symbol
Appears to the left of the primary display to indicate current operating mode:
Pulse or Servo.
Bar Graph
Indicates the pump speed control knob demand position relative to the maximum speed.
For 2 seconds from the onset of a Coast response, the bar graph blinks to signify the
brief lockout period during which speed cannot be adjusted. This occurs even if the
Coast response does not include a speed change.
Pump Name
This area displays the pump name. During the start-up self-test, the pump's Module ID
is displayed.
Check the Start-up Test
When the system power is first turned on, a self-test is conducted. If the self-test fails,
a message is displayed on the control unit display and the CCM. Try turning the system
off then on to repeat the start up check. If the message appears again and remains on
the display, do not use the pump. Contact Terumo Customer Service.
The control unit display will be determined by the pump state. Offline indicates the
pump is not assigned to the current Perfusion Screen or a Perfusion Screen has not
been opened. Online indicates the pump is assigned to the current Perfusion Screen.
Offline Display
•
Module ID
•
Centrifugal Icon
Online Display
•
Pump Name
•
Centrifugal Icon
•
"READY: PRESS START" displayed until user activates controls from control unit
front panel or the CCM.
ARTERIAL
RPM
L/min
READY: PRESS START
6-7
